Overview

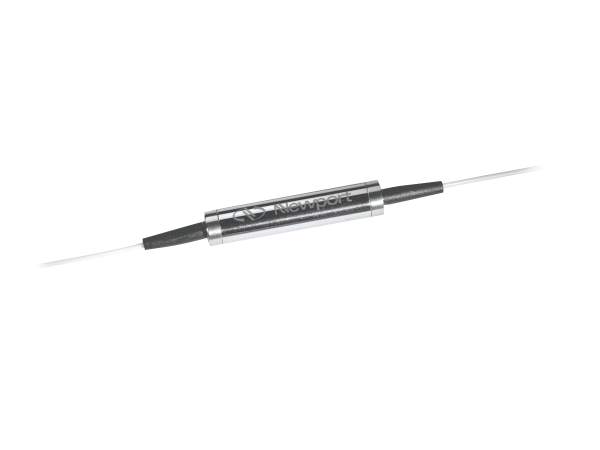

Our fiber pigtailed isolators are passive, fiber-pigtailed devices that reduce back reflections in optical fibers and backscattering of light which is highly desirable in many laser applications.

Very low insertion loss, high isolation and high return loss
Minimal polarization dependent loss
Low polarization mode dispersion
Epoxy-free optical path
Compact lightweight assembly

See All Features

Products

Compare	Model	Compatibility	rankScore	Type	Fiber Connector	Availability	Price	Brand
ISC-1550 Fiber Optic Isolator, Standard, 40 dB, 1550 nm, Bare Fiber Pigtails $195 In Stock	ISC-1550 Fiber Optic Isolator, Standard, 40 dB, 1550 nm, Bare Fiber Pigtails	UNIVERSAL	1.0	40 dB Standard Fiber-optic Isolator	Bare Fiber	In Stock	$195	Newport
ISC-1550-FCAPC Fiber Optic Isolator, Standard, 40 dB, 1550 nm, Fiber Pigtails, FC/APC $435 In Stock	ISC-1550-FCAPC Fiber Optic Isolator, Standard, 40 dB, 1550 nm, Fiber Pigtails, FC/APC	UNIVERSAL	1.0	40 dB Standard Fiber-optic Isolator	FC/PC	In Stock	$435	Newport
ISS-1550 Fiber Optic Isolator, Enhanced, 50 dB, 1550 nm, Bare Fiber Pigtails $355 In Stock	ISS-1550 Fiber Optic Isolator, Enhanced, 50 dB, 1550 nm, Bare Fiber Pigtails	UNIVERSAL	1.0	50 dB Enhanced Fiber-optic Isolator	Bare Fiber	In Stock	$355	Newport
ISU-1550 Fiber Optic Isolator, Supreme, 60 dB, 1550 nm, Bare Fiber Pigtails $510 In Stock	ISU-1550 Fiber Optic Isolator, Supreme, 60 dB, 1550 nm, Bare Fiber Pigtails	UNIVERSAL	1.0	60 dB Supreme Fiber-optic Isolator	Bare Fiber	In Stock	$510	Newport
ISU-1550-FCAPC Fiber Optic Isolator, Supreme, 60 dB, 1550 nm, Fiber Pigtails, FC/APC $660 In Stock	ISU-1550-FCAPC Fiber Optic Isolator, Supreme, 60 dB, 1550 nm, Fiber Pigtails, FC/APC	UNIVERSAL	1.0	60 dB Supreme Fiber-optic Isolator	FC/APC	In Stock	$660	Newport
ISU-1550-FCUPC Fiber Optic Isolator, Supreme, 60 dB, 1550 nm, Fiber Pigtails, FC/UPC $625 In Stock	ISU-1550-FCUPC Fiber Optic Isolator, Supreme, 60 dB, 1550 nm, Fiber Pigtails, FC/UPC	UNIVERSAL	1.0	60 dB Supreme Fiber-optic Isolator	FC/UPC	In Stock	$625	Newport

Show All

Specifications

Models	ISC-1550	ISS-1550	ISU-1550
Peak Isolation	>40 dB	>50 dB	>60 dB
Operating Wavelength	1550 nm	1550 nm	1550 nm
Fiber Type	Singlemode	Singlemode	Singlemode
Typical Insertion Loss	0.4 dB	1.0 dB	0.6 dB
Maximum Insertion Loss	≤0.5 dB	≤1.3 dB	≤0.7 dB
Return Loss	≥65/60 dB	≥60/55 dB	≥65/60 dB
Polarization Dependent Loss, Typical	<0.1 dB	<0.2 dB	<0.1 dB
Polarization Mode Dispersion	<0.5 ps	<0.15 ps	<0.05 ps
Maximum Optical Power	300 mW	300 mW	300 mW
Operating Temperature	-20 to 60°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C

Notes:

Specifications shown apply to all models, with or without connectors.

Specifications

Models	ISC-1550	ISS-1550	ISU-1550
Peak Isolation	>40 dB	>50 dB	>60 dB
Operating Wavelength	1550 nm	1550 nm	1550 nm
Fiber Type	Singlemode	Singlemode	Singlemode
Typical Insertion Loss	0.4 dB	1.0 dB	0.6 dB
Maximum Insertion Loss	≤0.5 dB	≤1.3 dB	≤0.7 dB
Return Loss	≥65/60 dB	≥60/55 dB	≥65/60 dB
Polarization Dependent Loss, Typical	<0.1 dB	<0.2 dB	<0.1 dB
Polarization Mode Dispersion	<0.5 ps	<0.15 ps	<0.05 ps
Maximum Optical Power	300 mW	300 mW	300 mW
Operating Temperature	-20 to 60°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C

Notes:

Specifications shown apply to all models, with or without connectors.

Features

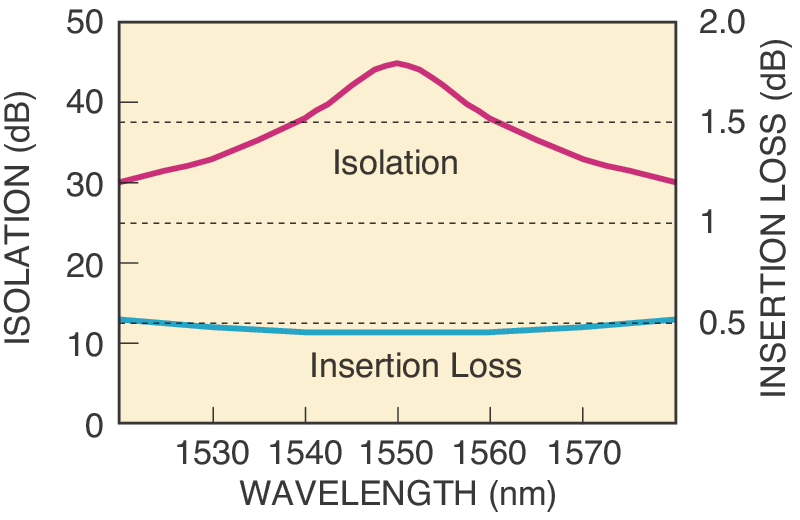

Standard Pigtailed Isolators

The standard ISC model isolator features typical peak isolation of >40 dB and very low polarization mode dispersion.

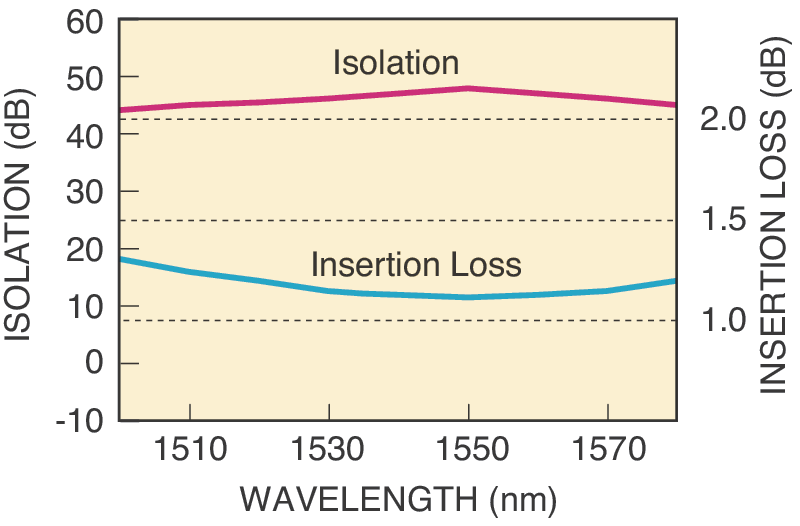

Enhanced Pigtailed Isolators

The enhanced ISS model isolators feature extremely low polarization mode dispersion and stable performance over a wide wavelength and temperature range with peak isolation greater than 50 dB.

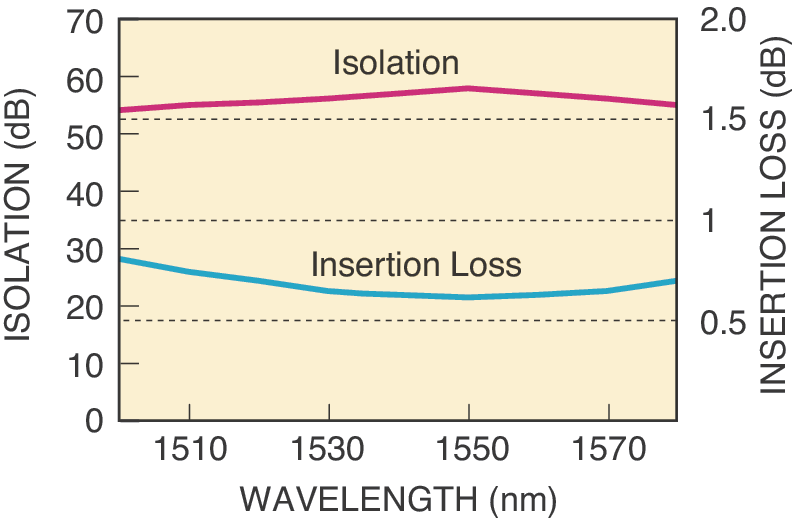

Supreme Pigtailed Isolators

The supreme ISU model isolators feature extremely low polarization mode dispersion and stable performance over a wide wavelength and temperature range with peak isolation greater than 60 dB.

Compact Lightweight Assembly

Our fiber optic isolators are designed into a compact, lightweight assembly which allows easy integration in small laboratory, field, and system applications.

Epoxy-free Optical Path

By utilizing an epoxy-free optical path, our fiber optic isolators exhibit increased isolation performance, stability and long-term reliability

Applications

Fiber optic amplifiers
Fiber optic ring lasers
High-speed and coherent fiber optic communication systems
Fiber optic links in CATV applications
Fiber optic gyro systems
Laser diode integrated optic modulator interfaces
Instrumentation and testing applications

Features

Standard Pigtailed Isolators

The standard ISC model isolator features typical peak isolation of >40 dB and very low polarization mode dispersion.

Enhanced Pigtailed Isolators

The enhanced ISS model isolators feature extremely low polarization mode dispersion and stable performance over a wide wavelength and temperature range with peak isolation greater than 50 dB.

Supreme Pigtailed Isolators

The supreme ISU model isolators feature extremely low polarization mode dispersion and stable performance over a wide wavelength and temperature range with peak isolation greater than 60 dB.

Compact Lightweight Assembly

Our fiber optic isolators are designed into a compact, lightweight assembly which allows easy integration in small laboratory, field, and system applications.

Epoxy-free Optical Path

By utilizing an epoxy-free optical path, our fiber optic isolators exhibit increased isolation performance, stability and long-term reliability

Applications

Fiber optic amplifiers
Fiber optic ring lasers
High-speed and coherent fiber optic communication systems
Fiber optic links in CATV applications
Fiber optic gyro systems
Laser diode integrated optic modulator interfaces
Instrumentation and testing applications
