BM Thread-Mount Micrometer Heads

Products
Specifications
Features
Contact Us

Overview

BM Series Micrometers feature micron-scale resolution and very smooth motion for precision positioning applications. They are mounted via their threaded bezel and are held in place with a threaded collar, which allows for easier front-side installation as opposed to using a back-side retaining nut.

Threaded bezel mounting
Large selection of sizes and travel ranges
Compatible with UMR Series and other Newport stages

See All Features

Products

Showing 11 of 11 total products

Compatibility:

Show entries

Search:

Compare	Model		Travel Range	Graduations	Axial Load Capacity	Sensitivity	Availability	Price	Brand
BM17.04N Micrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load $325.00 In Stock	BM17.04N Micrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load	1.0	4.1 mm	10 µm	102 N	1.0 µm	In Stock	$325.00	Newport
BM11.5 Micrometer Head, Standard Resolution, 5 mm Travel, 9 lb. Load $202.00 In Stock	BM11.5 Micrometer Head, Standard Resolution, 5 mm Travel, 9 lb. Load	2.0	5.0 mm	20 µm	40 N	2.0 µm	In Stock	$202.00	Newport
BM11.10 Micrometer Head, Standard Resolution, 10 mm Travel, 9 lb. Load $219.00 In Stock	BM11.10 Micrometer Head, Standard Resolution, 10 mm Travel, 9 lb. Load	3.0	10.0 mm	20 µm	40 N	2.0 µm	In Stock	$219.00	Newport
BM11.16 Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load $233.00 In Stock	BM11.16 Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load	4.0	16.0 mm	20 µm	40 N	2.0 µm	In Stock	$233.00	Newport
BM11.25 Micrometer Head, Standard Resolution, 25 mm Travel, 9 lb. Load $245.00 In Stock	BM11.25 Micrometer Head, Standard Resolution, 25 mm Travel, 9 lb. Load	5.0	25.0 mm	20 µm	40 N	2.0 µm	In Stock	$245.00	Newport
BM17.25 Micrometer Head, Standard Resolution, 25 mm Travel, 23 lb. Load $264.00 In Stock	BM17.25 Micrometer Head, Standard Resolution, 25 mm Travel, 23 lb. Load	6.0	25.0 mm	10 µm	102 N	1.0 µm	In Stock	$264.00	Newport
BM17.51 Micrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load $304.00 In Stock	BM17.51 Micrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load	7.0	51.0 mm	10 µm	102 N	1.0 µm	In Stock	$304.00	Newport
BM25.40 Micrometer Head, Standard Resolution, 40 mm Travel, 100 lb. Load $488.00 In Stock	BM25.40 Micrometer Head, Standard Resolution, 40 mm Travel, 100 lb. Load	8.0	40.0 mm	10 µm	454 N	1.0 µm	In Stock	$488.00	Newport
BM25.63 Micrometer Head, Standard Resolution, 63 mm Travel, 100 lb. Load $617.00 In Stock	BM25.63 Micrometer Head, Standard Resolution, 63 mm Travel, 100 lb. Load	9.0	63.0 mm	10 µm	454 N	1.0 µm	In Stock	$617.00	Newport
BM30.10 Micrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load $327.00 In Stock	BM30.10 Micrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load	10.0	10.0 mm	10 µm	409 N	1.0 µm	In Stock	$327.00	Newport

Showing 1 to 010 of 11 entries

Previous1 2Next

Show All

Specifications

Search:

Model	Mounting Threads	Travel Range	Graduations	Sensitivity	Axial Load Capacity
BM11.5 Model: BM11.5 Micrometer Head, Standard Resolution, 5 mm Travel, 9 lb. Load $202.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M6x0.5	5.0 mm	20 µm	2.0 µm	40 N
BM11.10 Model: BM11.10 Micrometer Head, Standard Resolution, 10 mm Travel, 9 lb. Load $219.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M6x0.5	10.0 mm	20 µm	2.0 µm	40 N
BM11.16 Model: BM11.16 Micrometer Head, Standard Resolution, 16 mm Travel, 9 lb. Load $233.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M6x0.5	16.0 mm	20 µm	2.0 µm	40 N
BM11.25 Model: BM11.25 Micrometer Head, Standard Resolution, 25 mm Travel, 9 lb. Load $245.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M6x0.5	25.0 mm	20 µm	2.0 µm	40 N
BM17.04N Model: BM17.04N Micrometer Head, Standard Resolution, 4 mm Travel, 23 lb. Load $325.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M12x0.5	4.1 mm	10 µm	1.0 µm	102 N

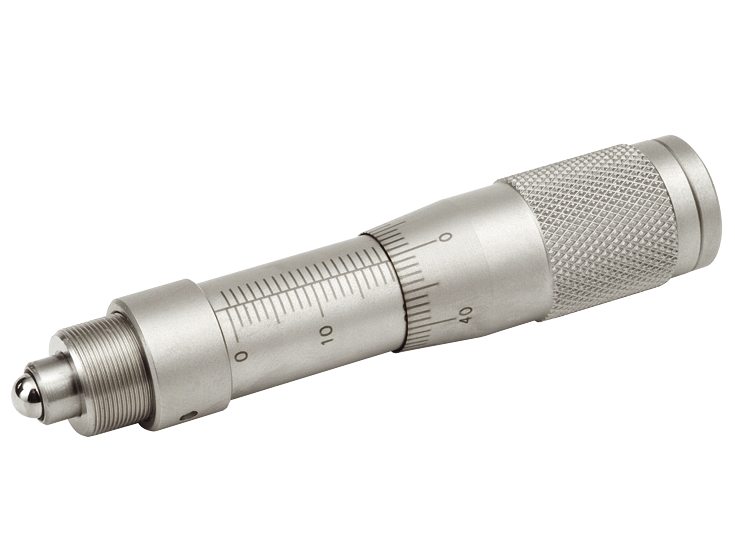

BM17.25 Model: BM17.25 Micrometer Head, Standard Resolution, 25 mm Travel, 23 lb. Load $264.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M12x0.5	25.0 mm	10 µm	1.0 µm	102 N

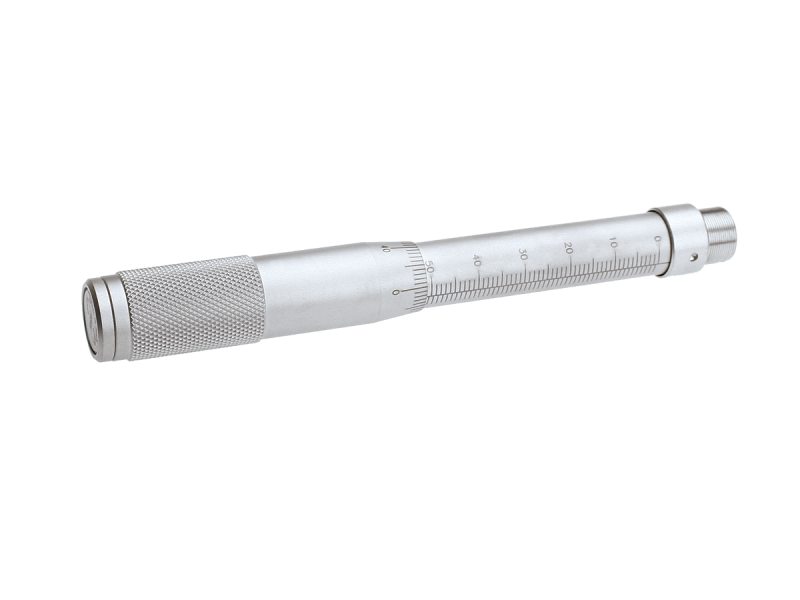

BM17.51 Model: BM17.51 Micrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load $304.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M12x0.5	51.0 mm	10 µm	1.0 µm	102 N
BM25.40 Model: BM25.40 Micrometer Head, Standard Resolution, 40 mm Travel, 100 lb. Load $488.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M18x1.0	40.0 mm	10 µm	1.0 µm	454 N
BM25.63 Model: BM25.63 Micrometer Head, Standard Resolution, 63 mm Travel, 100 lb. Load $617.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M18x1.0	63.0 mm	10 µm	1.0 µm	454 N
BM30.10 Model: BM30.10 Micrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load $327.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M20x1.0	10.0 mm	10 µm	1.0 µm	409 N
BM32.80 Model: BM32.80 Micrometer Head, Standard Resolution, 80mm Travel, 100 lb. Load $797.00 In Stock See Full Product Details Product Series Overview BM Thread-Mount Micrometer Heads	M22x1.0	80.0 mm	10 µm	1.0 µm	454 N

Showing 1 to 11 of 11 entries

Features

Not Just for UMR & MVN Series Stages

Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.

Threaded Lock Collar Advantages

The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.
