BM30.10 Micrometer Head

Micrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load

Model: BM30.10

$327

In Stock

Compare

Add to List

Product Series Overview

BM Thread-Mount Micrometer Heads

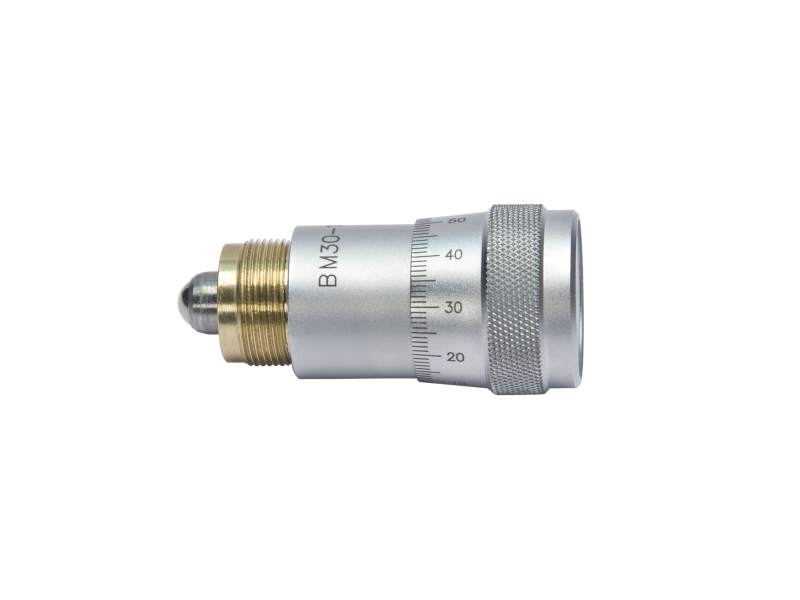

The BM30.10 Micrometer features micron-scale resolution and very smooth motion for precision positioning applications. It has a 10 mm travel range and with axial load capacity of 454 N. BM micrometers, which mount via their threaded bezel and are held in place with a threaded collar, are the standard choice of actuator on UMR and MVN Series Stages and on SL Series Mirror Mounts.

Not Just for UMR & MVN Series Stages

Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.

Threaded Lock Collar Advantages

The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.

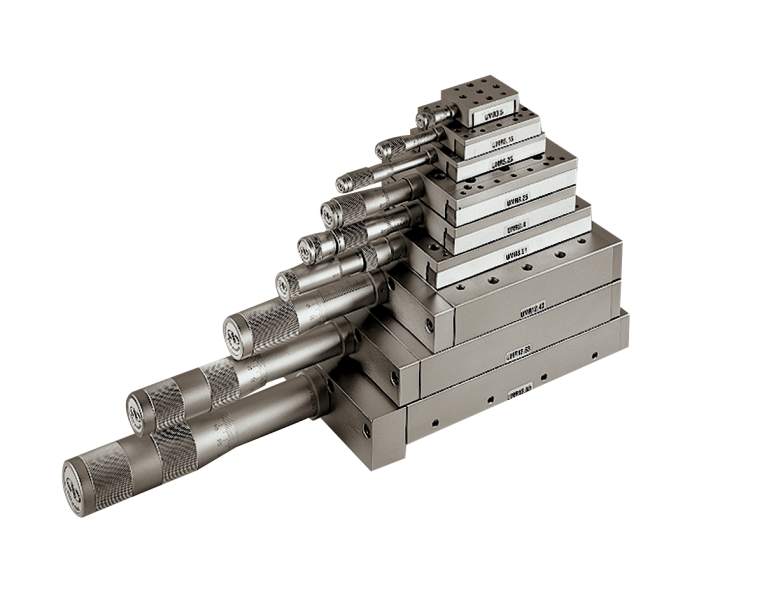

Compatible Newport Stages & Mounts

BM Series Micrometers are compatible with the following manual stages and mounts.

UMR3 Series
UMR5 Series
UMR8 Series
UMR12 Series
MVN Series
TGN Series
SL Series
SL-A Series

Specifications

Technical Specs

Type

Micrometer
Travel Range

10.0 mm
Drive Type

Knob
Graduations

10 µm

Axial Load Capacity

409 N
Sensitivity

1.0 µm
Mounting Threads

M20x1.0

Type

Micrometer
Travel Range

10.0 mm
Drive Type

Knob
Graduations

10 µm

Axial Load Capacity

409 N
Sensitivity

1.0 µm
Mounting Threads

M20x1.0

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BM30.10-S (101.8 kB, PDF)

Other

BM30.10 RoHS Certificate (284.8 kB, PDF)
