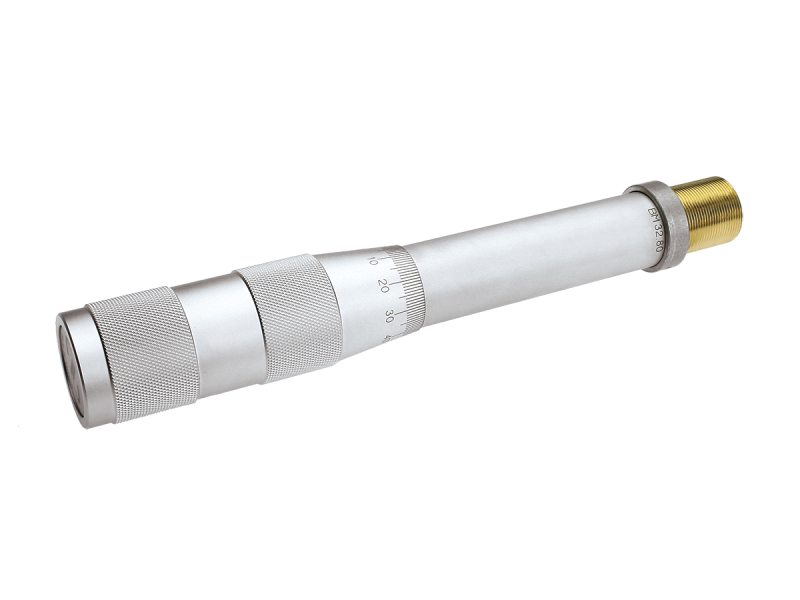

Micrometer Head, Standard Resolution, 80mm Travel, 100 lb. Load

Model: BM32.80

$774

In Stock

Compare

Add to List

Product Series Overview

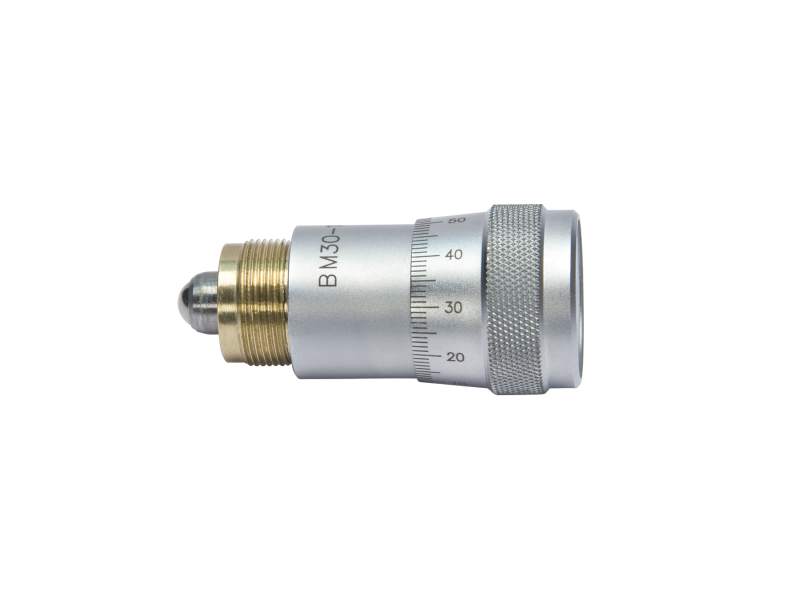

BM Thread-Mount Micrometer Heads

The BM32.80 Micrometer features micron-scale resolution and very smooth motion for precision positioning applications. It has a 80 mm travel range and with axial load capacity of 454 N. BM micrometers, which mount via their threaded bezel and are held in place with a threaded collar, are the standard choice of actuator on UMR and MVN Series Stages and on SL Series Mirror Mounts.

Not Just for UMR & MVN Series Stages

Although these micrometers are the standard choice of actuator on UMR and MVN series Stages, their threaded bezel allows them to be used in a variety of applications where precise positioning is required.

Threaded Lock Collar Advantages

The threaded collar found on all BM Series micrometers not only allows easy front-side installation, it also allows the user to fine tune the distance between the micrometer's tip and the contact point.

Compatible Newport Stages & Mounts

BM Series Micrometers are compatible with the following manual stages and mounts.

UMR3 Series
UMR5 Series
UMR8 Series
UMR12 Series
MVN Series
TGN Series
SL Series
SL-A Series

Specifications

Technical Specs

Type

Micrometer
Travel Range

80.0 mm
Drive Type

Knob
Graduations

10 µm

Axial Load Capacity

454 N
Sensitivity

1.0 µm
Mounting Threads

M22x1.0

Type

Micrometer
Travel Range

80.0 mm
Drive Type

Knob
Graduations

10 µm

Axial Load Capacity

454 N
Sensitivity

1.0 µm
Mounting Threads

M22x1.0

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BM Series DWG-S (101.2 kB, PDF)

Other

BM32.80 RoHS Certificate (286.1 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$41
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40

Similar

Description	Compatibility	Avail.	Price
BHC30.10 Adjustment Screw, Hex, M20 x 1.00, 10mm Travel, BHC Series	UNIVERSAL	In Stock	$202
BM17.51 Micrometer Head, Standard Resolution, 51 mm Travel, 23 lb. Load	UNIVERSAL	In Stock	$295
BM30.10 Micrometer Head, Standard Resolution, 10 mm Travel, 90 lb. Load	UNIVERSAL	In Stock	$317
BM25.63 Micrometer Head, Standard Resolution, 63 mm Travel, 100 lb. Load	UNIVERSAL	In Stock	$599

Compatible

Description	Compatibility	Avail.	Price
M-UMR12.80 Linear Stage, Single-Row Ball Bearing, 80 mm Travel, M5 and M6	METRIC	Show	$1,204
TGN160 Tilt Platform, Stainless Steel, 6.30 x 9.45 in., ±2.86° Range, 1/4-20	IMPERIAL	In Stock	$1,600
UMR12.80 Linear Stage, Single-Row Ball Bearings, 3.15 in., 10-24 and 1/4-20	IMPERIAL	In Stock	$1,204
