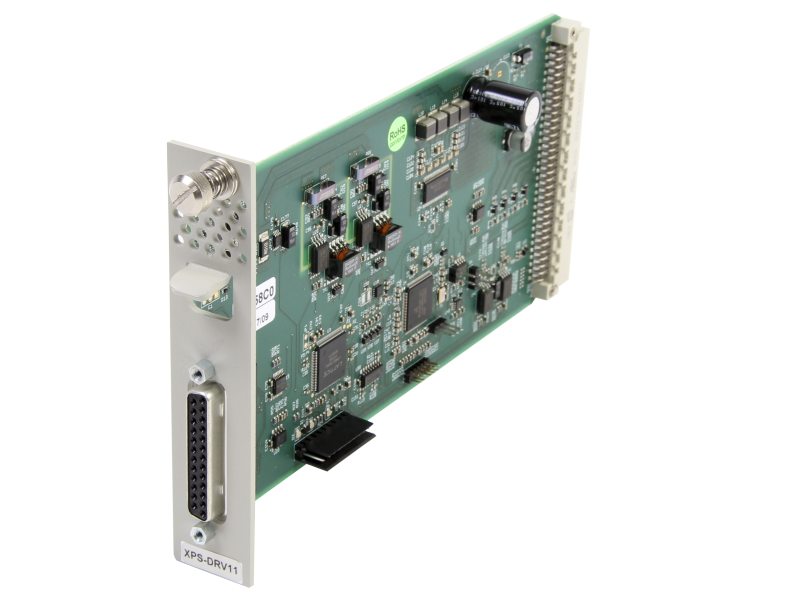

XPS-DRV11BL Digital Driver Card

Digital Driver Card, MTN Brushless Stages

Model: XPS-DRV11BL

$830

In Stock

Compare

Add to List

Product Series Overview

XPS Motion Controller Driver Modules

The XPS-DRV11BL is a software configurable digital driver card that has been optimized to drive MTNxxxBLHS series stages with XPS-Dx controllers. The board uses Hall effect sensor for motor initialization to avoid any uncontrolled motion duirng initialization.

ESP Plug-and-Play Compatibility

When an ESP-compatible stage is connected to the XPS, the stage is quickly recognized and operating parameters are configured without the need for user inputs. This Plug and Play feature is not only transparent to the user, but it also ensures the safe operation of the stage.

Resources & Downloads

Literature

XPS Driver Cards Datasheet (2.5 MB, PDF)

Related Products

Accessories

Cables for -S Direct Drive Stages

Description	Compatibility	Avail.	Price
XPS-DK21 Cable Kit, For Stages RGV100-S, and XPS-DRV11 Driver	UNIVERSAL	In Stock	$445
XPS-DK22 Cable Kit, For Stages IMS-LM-S, XM-S, and XPS-DRV11 Driver	UNIVERSAL	In Stock	$473
XPS-DK23 Cable Kit, For Stages RGV100HL-S, and XPS-EDBL Driver	UNIVERSAL	In Stock	$456
XPS-DK24 Cable Kit, For Stages IMS-LM-S, and XPS-EDBL Driver	UNIVERSAL	In Stock	$767
XPS-DK25 Cable Kit, For Stage RGV160BL-S, and XPS-EDBL Driver	UNIVERSAL	In Stock	$707

Compatible Controllers

Description	Compatibility	Avail.	Price
XPS-D2 Universal Motion Controller, High Performance, 2-axis, Ethernet	UNIVERSAL	In Stock	$8,470
XPS-D4 Universal Motion Controller, High Performance, 4-axis, Ethernet	UNIVERSAL	6 Weeks	$9,518
XPS-D6 Universal Motion Controller, High Performance, 6-axis, Ethernet	UNIVERSAL	6 Weeks	$10,345
XPS-D8 Universal Motion Controller, High Performance, 8-axis, Ethernet	UNIVERSAL	In Stock	$11,586
