Flexure Mirror Mount, Vizix, 0.5 in. Diameter, Locking Hex Pitch Adjuster
Flexure Mirror Mount, Vizix, 0.5 in. Diameter, Locking Hex Pitch Adjuster
Model: V50-AX
Product Series Overview

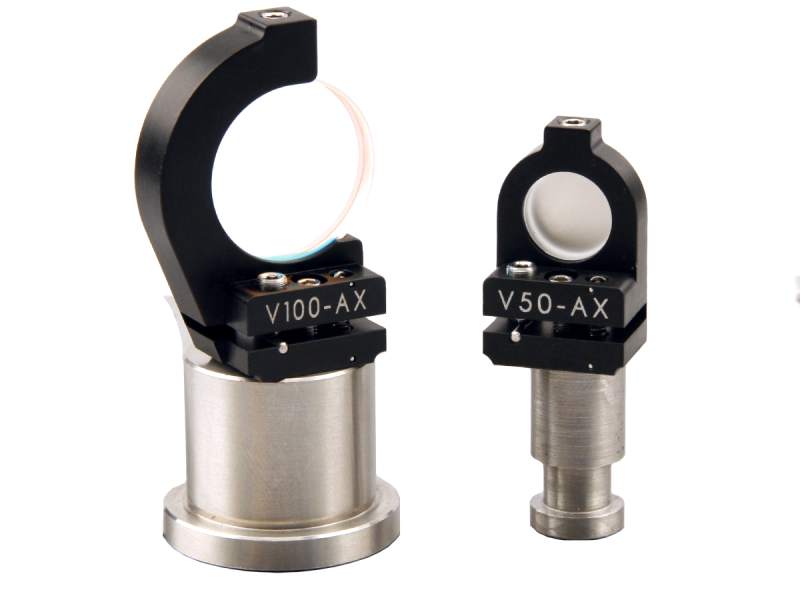

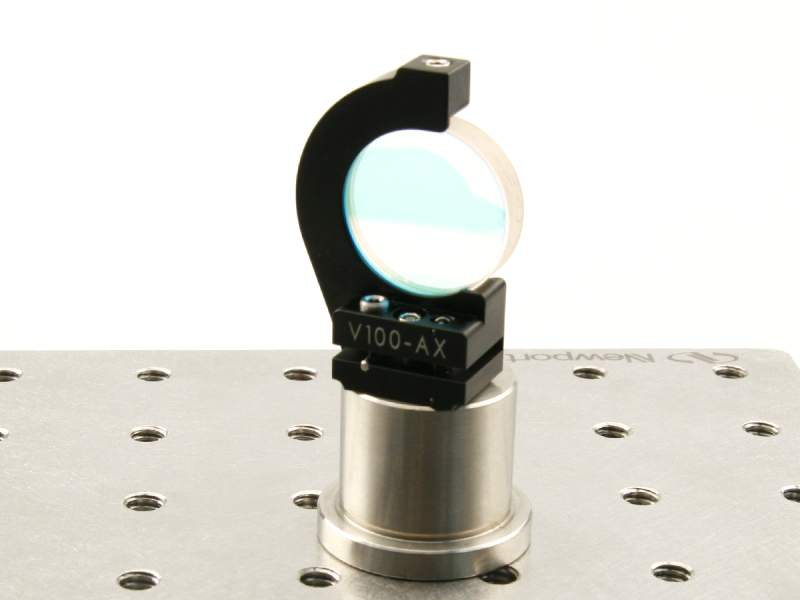

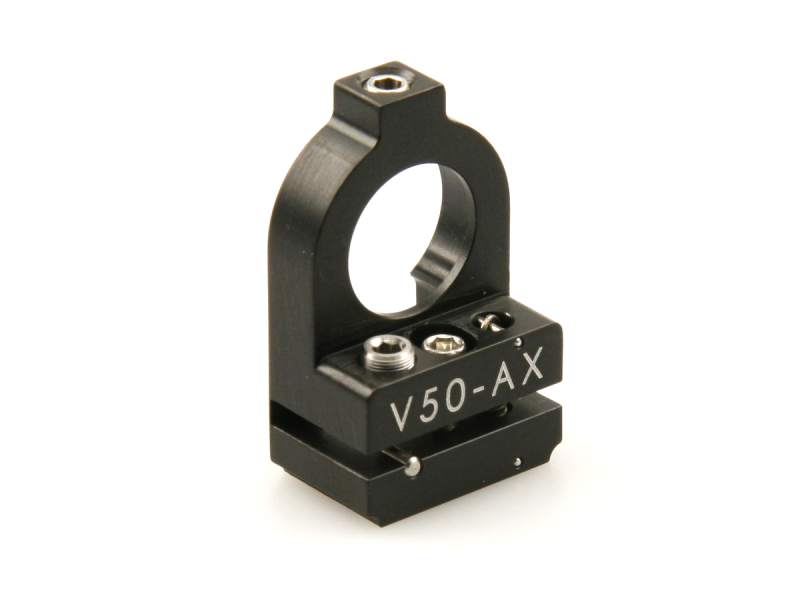

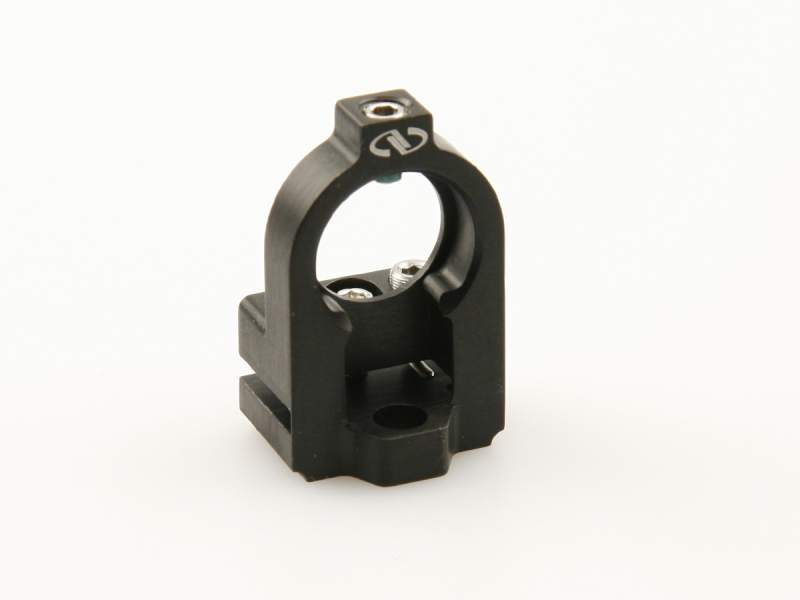

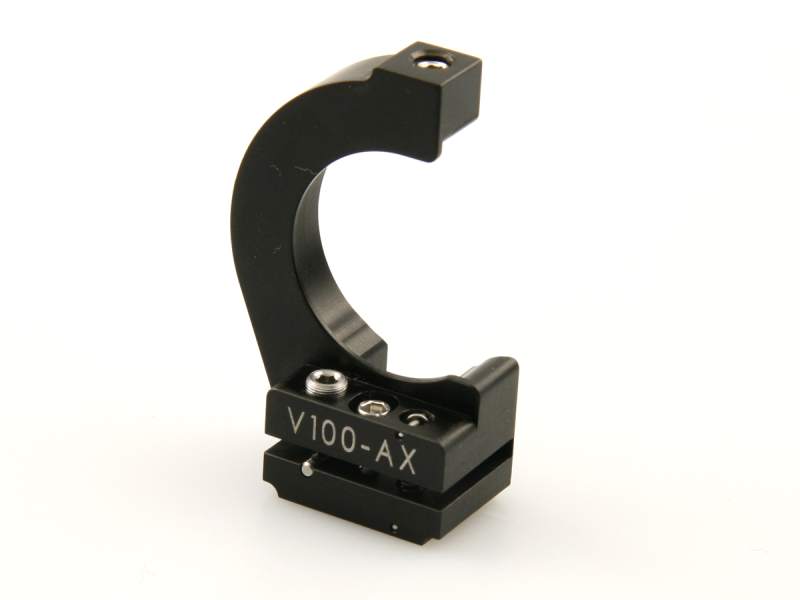

Vizix™ Pitch-Axis Flexure Mirror MountsThe V50-AX Vizix™ Pitch-Axis Optical Mount is ideal for use in coarse beam splitting or folding applications where space is limited. This compact mount employs a unibody design with a flexure hinge to provide ±4 ° of pitch adjustment. A 100-TPI hex screw enables smooth adjustment and a separate locking screw secures alignment, both of which are accessable from the top of the mount. For simplicity, all hex broaches on this mount (adjuster, lock, and mirror set screw) are the same size; 5/64-in. (2-mm). This V100-AX has the CenterPoint™ optic mounting feature, which means the optic is held at the center of rotation of the mounting post. This allows the user to rotate the mount in the post holder and still keep the optical beam on the mirror's surface. Although this mount only has pitch adjustment, the fact that it can be rotated in a post holder means it also has yaw adjustability and therefore is usabe for complete coarse alignments.
Resources & Downloads
2D Product Drawings
V50-AX-309(292.4 kB, PDF)
Other
V50-AX_RoHS2021.pdf(0, PDF)
