Motorized Vertical Stage, 4.5 mm Travel, Full Step Drive, 30 N Load, M4

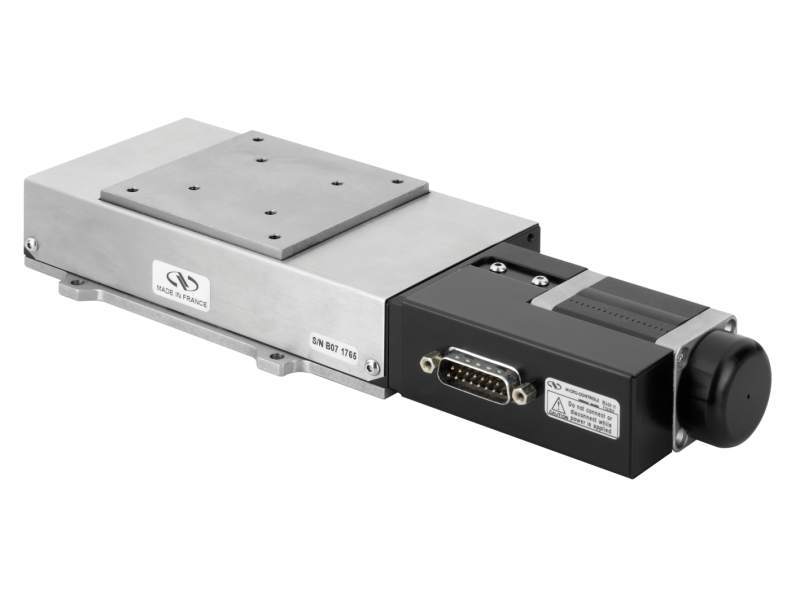

The UZS80PP Vertical Stage offers 4.5 mm vertical adjustment of loads up to 30 N and mounts on top of our UTS series linear stages. The UZS80PP stepper motor version is a more economical version for less demanding applications. When used with motion controllers with high micro-step capability, like the XPS, ESP302 or SMC100PP, low noise operation and very small incremental motions are guaranteed. The UZS80PP does not use encoder feedback, but reaches a position by the number of commanded steps and micro-steps. For this purpose, the stepper motor is directly attached to the worm screw.

Specifications

Technical Specs

Travel Range
4.5 mm
Minimum Incremental Motion
0.20 µm
Maximum Speed
2 mm/s

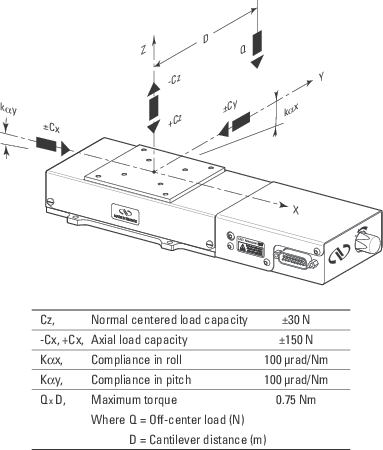

Centered Load Capacity
30 N
Accuracy, Typical
±0.35 µm
Accuracy, Guaranteed
±2.0 µm
Bi-directional Repeatability, Typical
±0.5 µm
Bi-directional Repeatability, Guaranteed
±2.2 µm
Uni-directional Repeatability, Typical
±0.25 µm
Uni-directional Repeatability, Guaranteed
±0.7 µm
Drive Screw Pitch
0.8 mm
Limit Switches
Optical
Origin
Optical, centered
Origin Repeatability
±2 µm

Connectors
DB15 Male
Pitch, Typical
±37 µrad
Pitch, Guaranteed
±75 µrad
Compliance in Pitch
100 µrad/Nm
Roll, Typical
±50 µrad
Roll, Guaranteed
±100 µrad
Compliance in Roll
80 µrad/Nm
Cable Length
3 m
Thread Type
M4
Weight
2.8 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Compliance
RoHS 3, CE

Travel Range
4.5 mm
Minimum Incremental Motion
0.20 µm
Maximum Speed
2 mm/s
Centered Load Capacity
30 N
Accuracy, Typical
±0.35 µm
Accuracy, Guaranteed
±2.0 µm
Bi-directional Repeatability, Typical
±0.5 µm
Bi-directional Repeatability, Guaranteed
±2.2 µm
Uni-directional Repeatability, Typical
±0.25 µm
Uni-directional Repeatability, Guaranteed
±0.7 µm
Drive Screw Pitch
0.8 mm
Limit Switches
Optical
Origin
Optical, centered
Origin Repeatability
±2 µm

Connectors
DB15 Male
Pitch, Typical
±37 µrad
Pitch, Guaranteed
±75 µrad
Compliance in Pitch
100 µrad/Nm
Roll, Typical
±50 µrad
Roll, Guaranteed
±100 µrad
Compliance in Roll
80 µrad/Nm
Cable Length
3 m
Thread Type
M4
Weight
2.8 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Compliance
RoHS 3, CE
