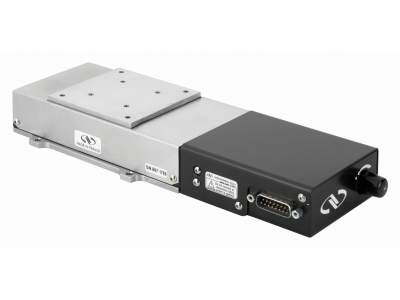

Motorized Vertical Stage, 4.5 mm Travel, DC Drive, 30 N Load, M4

  • Travel Range
    4.5 mm
  • Minimum Incremental Motion
    0.20 µm
  • Maximum Speed
    4 mm/s
  • Centered Load Capacity
    30 N
  • Accuracy, Typical
    ±0.35 µm
  • Accuracy, Guaranteed
    ±1.5 µm
  • Bi-directional Repeatability, Typical
    ±0.4 µm
  • Bi-directional Repeatability, Guaranteed
    ±1.7 µm
  • Uni-directional Repeatability, Typical
    ±0.25 µm
  • Uni-directional Repeatability, Guaranteed
    ±0.7 µm
  • Drive Screw Pitch
    0.8 mm
  • Encoder Resolution
    0.05 µm
  • Limit Switches
    Optical
  • Origin
    Optical, centered
  • Origin Repeatability
    ±1 µm
  • Connectors
    DB15 Male
  • Pitch, Typical
    ±37 µrad
  • Pitch, Guaranteed
    ±75 µrad
  • Compliance in Pitch
    100 µrad/Nm
  • Roll, Typical
    ±50 µrad
  • Roll, Guaranteed
    ±100 µrad
  • Compliance in Roll
    80 µrad/Nm
  • Cable Length
    3 m
  • Thread Type
    M4
  • Weight
    2.8 kg
  • MTBF
    20,000 h (25% load, 10% duty cycle)
  • Compliance
    RoHS 3, CE
