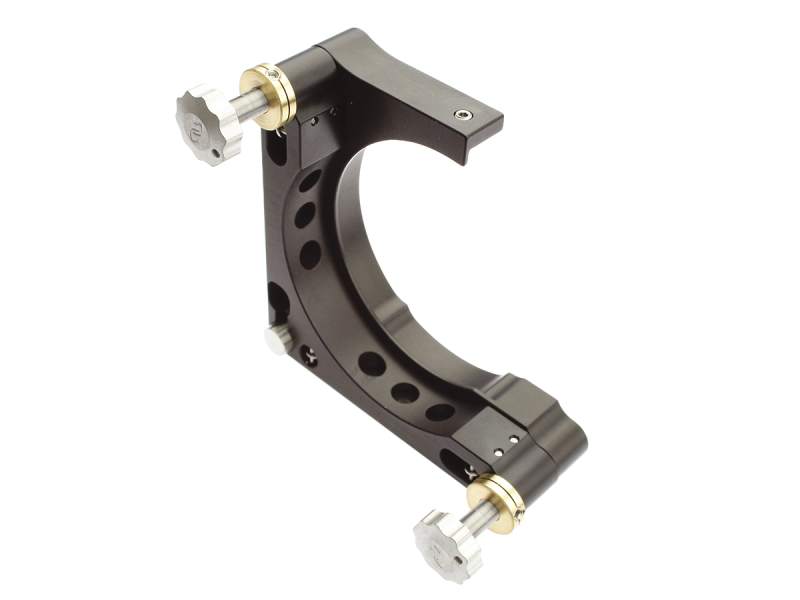

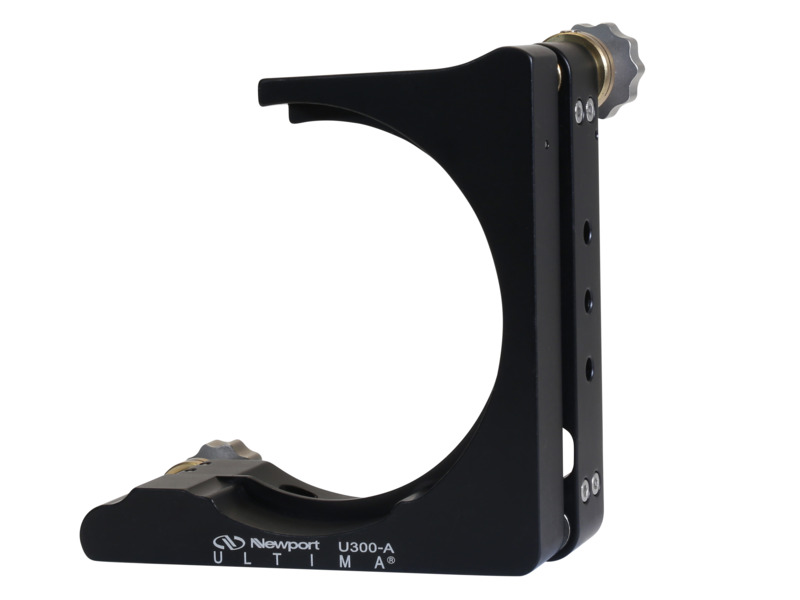

Mirror Mount, ULTIMA®, Clear Edge, 3.0 in., 2 Locking Knobs

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    76.2 mm
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    1.8 arc sec
  • Angular Range
    ±3.5°
  • Material
    Anodized Aluminum
  • Drive Type
    Knob, locking
  • Thread Type
    8-32 (M4) CLR
