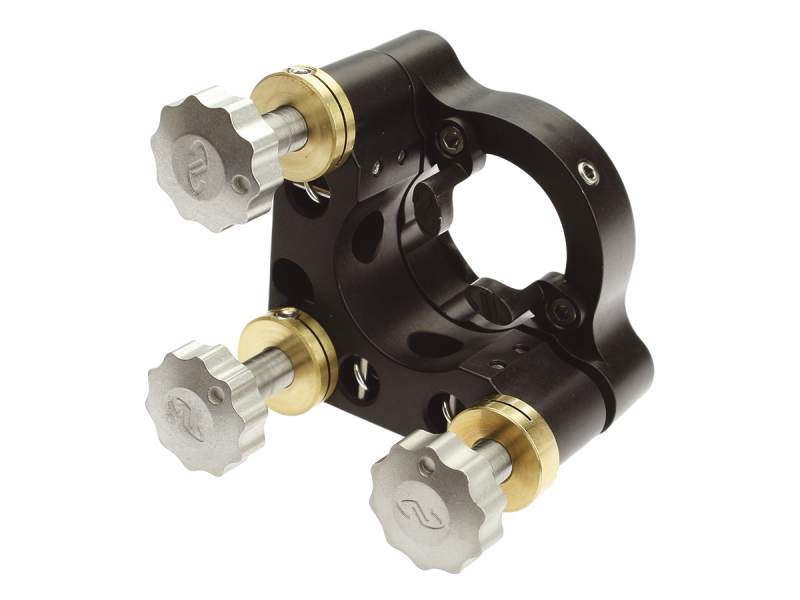

Mirror Mount, ULTIMA®, Center, 1.0 in., 3 Locking Knob Adjustment

  • Mechanism
    Kinematic
  • Optic Diameter
    25.4 mm
  • Number of Actuators
    3
  • Actuator Locks
    Yes
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    z, θx, θy
  • Sensitivity
    3.8 arc sec
  • Angular Range
    ±7°
  • Optic Loading
    Rear
  • Material
    Anodized Aluminum
  • Drive Type
    Knob, locking
  • Thread Type
    8-32 (M4) CLR
  • Optical Axis Height
    25.4 mm
  • Optic Thickness
    5.1-8.1 mm
  • Special Features
    Low-Stress Mounting
