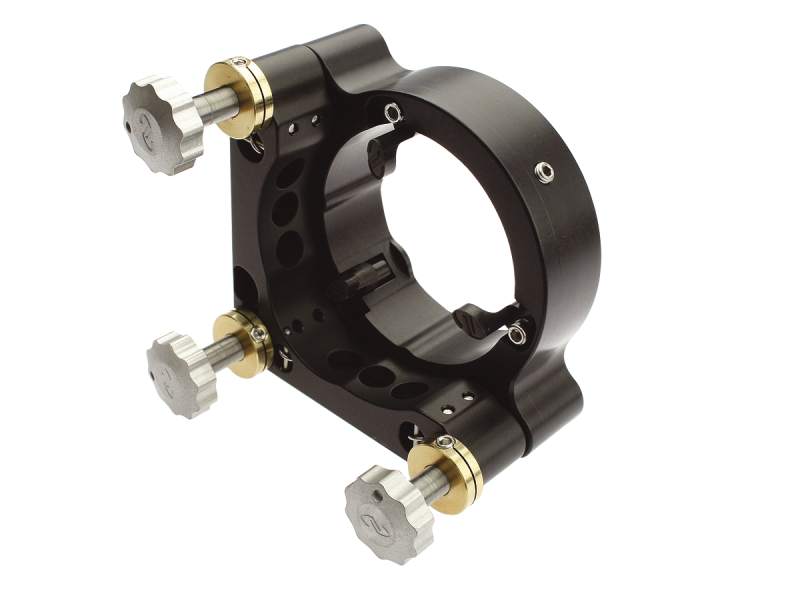

Mirror Mount, ULTIMA®, Center, 2.0 in., 3 Locking Knob Adjustment

  • Mechanism
    Kinematic
  • Optic Diameter
    50.8 mm
  • Number of Actuators
    3
  • Actuator Locks
    Yes
  • Adjustment Screw Thread
    100 TPI
  • Adjustments
    z, θx, θy
  • Sensitivity
    2.4 arc sec
  • Angular Range
    ±5°
  • Optic Loading
    Rear
  • Material
    Anodized Aluminum
  • Drive Type
    Knob, locking
  • Thread Type
    8-32 (M4) CLR
  • Optical Axis Height
    38.1 mm
  • Optic Thickness
    9.9-15.5 mm
  • Special Features
    Low-Stress Mounting
