Gimbal Optical Mount, 4.0 in., (2) BHC Locking Adjustment Screws

Low Wavefront Distortion Gimbal Mirror Mounts

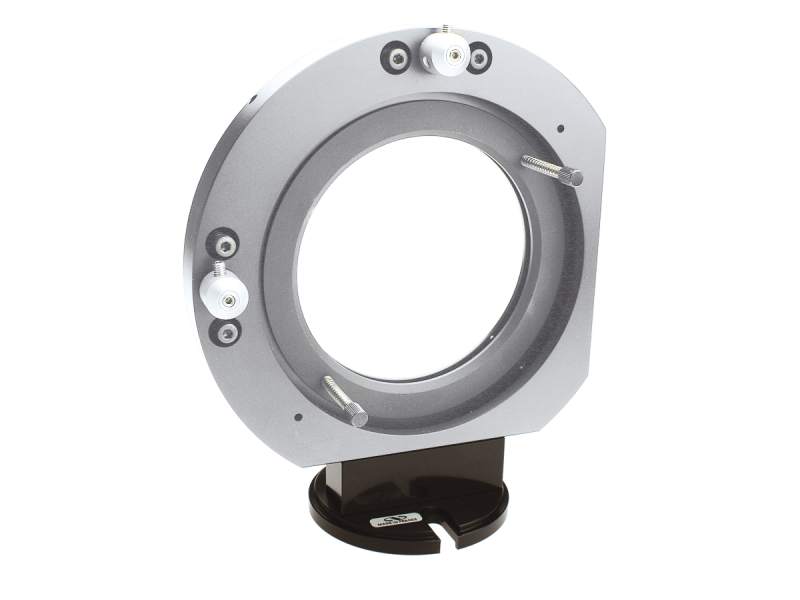

The SL101.6BCH Gimbal Optical Mount is a true gimbal mount for high-resolution azimuth and elevation adjustment of 4 inch (101.6 mm) diameter mirrors and beamsplitters. The fixed rotational axes intersect at the front surface of the optic, allowing simple, non-coupled rotation without translation. The gimbal design also greatly reduces beam wander and optical path-length changes. These mounts are designed for maximum clear aperture of the transmitted beam at a 45° incident angle. SL Mounts are designed for a single nominal optical diameter for positive, made-to-fit three-point mounting inside the gimbal body. The base plate can be mounted in two places which allows you to convert between right-hand and left-hand operation. SL Series Mounts are configured with a base plate and riser (if required) for a nominal 50 or 75 mm optical axis height. Riser blocks of 25 mm and 50 mm may be placed in any combination beneath the base plate to achieve any optical axis height (>75) which is a multiple of 25 mm. For continuously variable height adjustment we recommend the ECN-80 elevator base. BHC Lockable Adjustment Screws lock the optic in position to prevent inadvertent misadjustment.

Highly Stable Gimbal Mounts

SL Series optical mounts are true gimbal mounts for high-resolution azimuth and elevation adjustment of mirrors and beam splitters, greatly reducing beam wander and optical path-length changes. The fixed rotational axes intersect at the front surface of the optic, allowing simple, non-coupled rotation without translation. These mounts feature all steel construction for superior stiffness and stability.

Ideal for Beam Splitting Applications

The SL series mounts can fit various diameter and type of optics. The fixed rotational axes intersect at the front surface of the optic, allowing simple, non-coupled rotation without translation. The gimbal design also greatly reduces beam wander and optical path-length changes. These mounts are designed for maximum clear aperture of the transmitted beam at a 45° incident angle in beamsplitting applications.

Different Actuator Types

SL Mounts are designed with two different types of actuators for convenience. For general applications, BM Micrometer drives supply graduated settings for repeatable positioning and BD Differential Micrometers are specifically suited for ten times higher positioning sensitivity.

Specifications

Technical Specs

Type
Precision
Mechanism
Gimbal
Optic Diameter
101.6 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
50 TPI
Adjustments
θx, θy
Sensitivity
27 arc sec

Angular Range
±2°
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
1/4-20 (M6) SLOT
Optical Axis Height
100 mm
Optic Thickness
1-15 mm
Optic Mounting
Retaining Plate

Type
Precision
Mechanism
Gimbal
Optic Diameter
101.6 mm
Number of Actuators
2
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
50 TPI
Adjustments
θx, θy
Sensitivity
27 arc sec

Angular Range
±2°
Material
Stainless Steel
Drive Type
Allen-Key, locking
Thread Type
1/4-20 (M6) SLOT
Optical Axis Height
100 mm
Optic Thickness
1-15 mm
Optic Mounting
Retaining Plate

Resources & Downloads

2D Product Drawings

SLSERIES DWG-S(144.7 kB, PDF)
