Sorry, this product is no longer offered for sale. It was discontinued on Apr 26, 2024

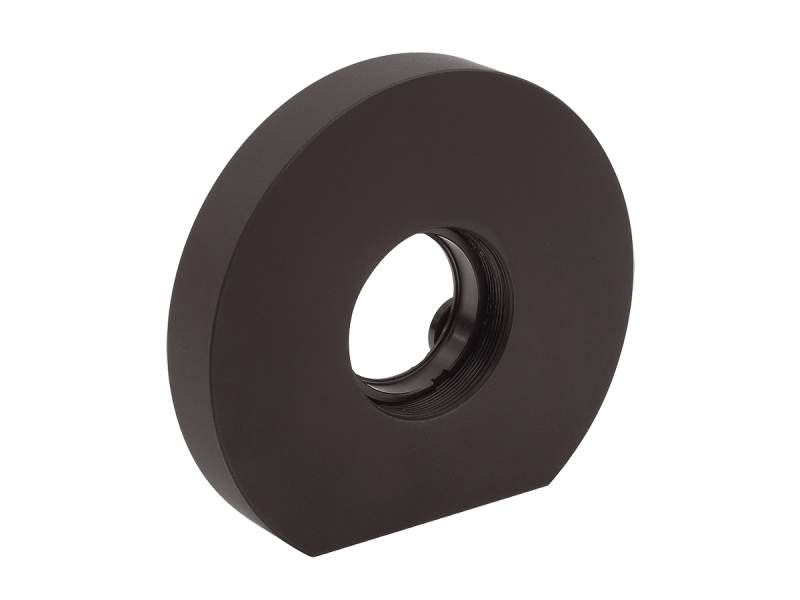

Lens Mount, M30 x 0.75, 32.5 mm Optical Axis Height, 4-40 & 1/4-20
The SB32.25.4 Lens Barrel Holder is available to mount B25.4 Series (25.4mm) Lens Barrels on a post or in the X26 rail system. The standard optical axis height for SB32 is 32.5 mm. These holders can be directly fixed to the CN26 Carriers and will have a 40 mm center height above the rail. The SB32.25.4 is delivered with three screws, three washers, and a retaining ring that permits direct assembly of mirrors and other optics. It has M30 x 0.75 thread.
Specifications
- TypeLens Mount
- Thread TypeM30 x 0.75
- Optical Axis Height32.5 mm
- Mounting Threads4-40 & 1/4-20
Resources & Downloads
2D Product Drawings
SBSERIES DWG-S(105.7 kB, PDF) SBMOUNTS.ONR-S(100.1 kB, PDF)
