Sorry, this product is no longer offered for sale. The recommended replacement product is RV120BPE-F.

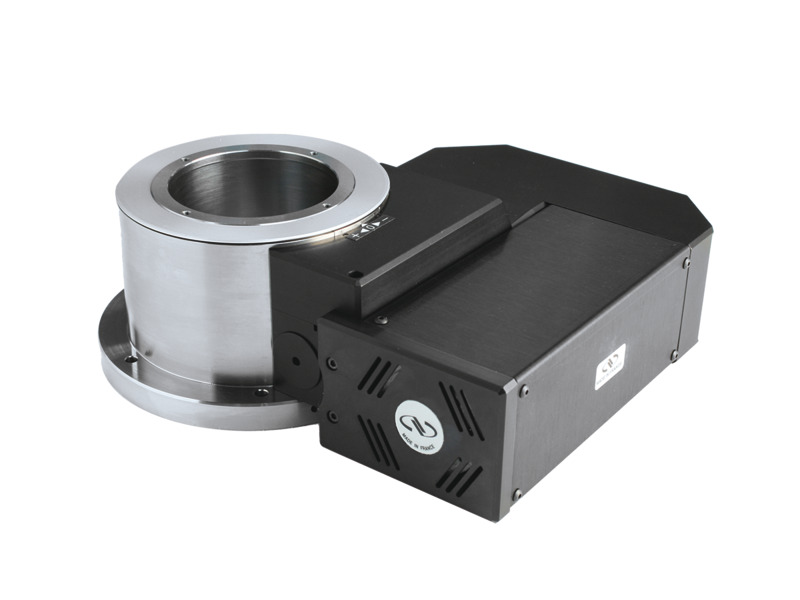

Motorized Rotation Stage, 120 mm, High-Torque Full-Step Drive, Folded

The RV120PE-F Folded High Torque Rotation Stage provides high-precision angular positioning accuracy combined with high load capacity. This 120 mm diameter stage features a Full-step stepper drive equipped with a reduction gear providing higher torque. All RV stages are constructed of tool steel, with rotation accuracy ensured by ground bearing surfaces. A double row of preloaded bearings allows for high off-center loads in a reduced footprint. The single monolithic design offers improved stiffness without compromising dynamic performance. Precise rotation is ensured by a precision ground and hardened worm gear. A rotary encoder mounted on the worm gear shaft provides 0.001° position feedback resolution.

Specifications

Technical Specs

Angular Range
360°
Maximum Speed
2°/s
Minimum Incremental Motion
1.0 mdeg
Maximum Torque
20 N·m
Centered Load Capacity
1800 N
Uni-directional Repeatability, Typical
±0.35 mdeg
Uni-directional Repeatability, Guaranteed
±1.0 mdeg
Bi-directional Repeatability, Typical
±0.7 mdeg
Bi-directional Repeatability, Guaranteed
±2.0 mdeg
Accuracy, Typical
±4.0 mdeg
Accuracy, Guaranteed
±7.5 mdeg
Wobble, Typical
±5.0 µrad
Wobble, Guaranteed
±10 µrad
Eccentricity, Typical
±0.6 µm
Eccentricity, Guaranteed
±2.0 µm
Inertia
70 kg.m²

Transversal Compliance
1.5 µrad/N·m
Origin
Optical, centered
Origin Repeatability
±0.5 mdeg
Limit Switches
Optical, at ±170, can be disabled for continuous rotation (except HAT & HAHLT versions)
Encoder Resolution
0.001°
MTBF
20,000 h (25% load, 10% duty cycle)
Cable Length
3 m
Diameter
120 mm
Aperture Diameter
78 mm
Connector Type
DB25 Male
Thread Type
M4
Weight
6.5 kg
Compliance
RoHS 3, CE

Angular Range
360°
Maximum Speed
2°/s
Minimum Incremental Motion
1.0 mdeg
Maximum Torque
20 N·m
Centered Load Capacity
1800 N
Uni-directional Repeatability, Typical
±0.35 mdeg
Uni-directional Repeatability, Guaranteed
±1.0 mdeg
Bi-directional Repeatability, Typical
±0.7 mdeg
Bi-directional Repeatability, Guaranteed
±2.0 mdeg
Accuracy, Typical
±4.0 mdeg
Accuracy, Guaranteed
±7.5 mdeg
Wobble, Typical
±5.0 µrad
Wobble, Guaranteed
±10 µrad
Eccentricity, Typical
±0.6 µm
Eccentricity, Guaranteed
±2.0 µm
Inertia
70 kg.m²

Transversal Compliance
1.5 µrad/N·m
Origin
Optical, centered
Origin Repeatability
±0.5 mdeg
Limit Switches
Optical, at ±170, can be disabled for continuous rotation (except HAT & HAHLT versions)
Encoder Resolution
0.001°
MTBF
20,000 h (25% load, 10% duty cycle)
Cable Length
3 m
Diameter
120 mm
Aperture Diameter
78 mm
Connector Type
DB25 Male
Thread Type
M4
Weight
6.5 kg
Compliance
RoHS 3, CE

Resources & Downloads

Related Products

Compatible Controllers

Based on axis required, choose a specific controller to pair with the stage. Along with an XPS-D or XPS-RLD controller, a driver module is required.

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		xps-d-universal-motion-controller¹XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver	UNIVERSAL
		xps-rl-universal-high-performance-motion-controller²XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver	UNIVERSAL
		esp301-3-axis-dc-and-stepper-motion-controllerESP302 3-Axis DC and Stepper Motion Controller	UNIVERSAL

Notes:

Requires XPS-DRV11 driver module
Requires XPS-DRV11 driver module
