Fixed Mirror Mount, PX Series, 1 in., Stainless Steel

Fixed Mirror Mount, PX Series, 1 in., Stainless Steel

Model: PX-FM1

$106

3 Weeks

Compare

Add to List

Product Series Overview

Slotted Base Fixed Mirror Mount

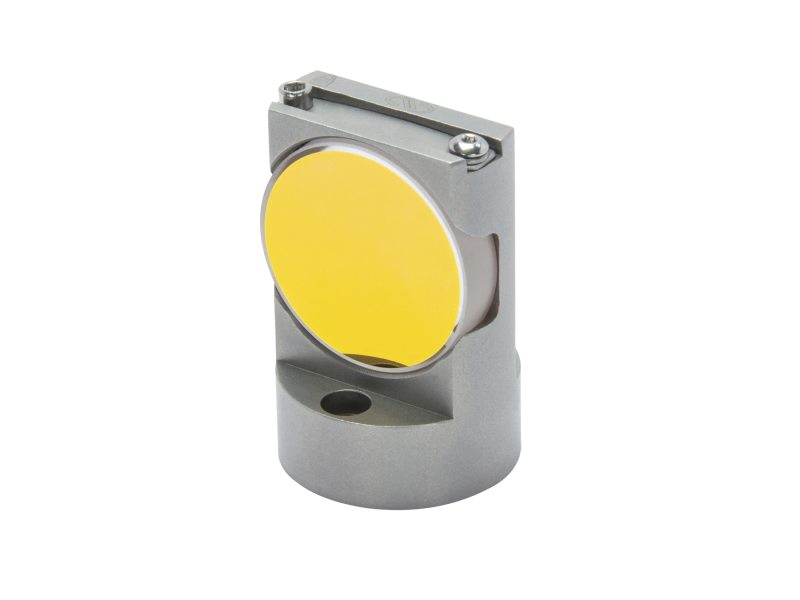

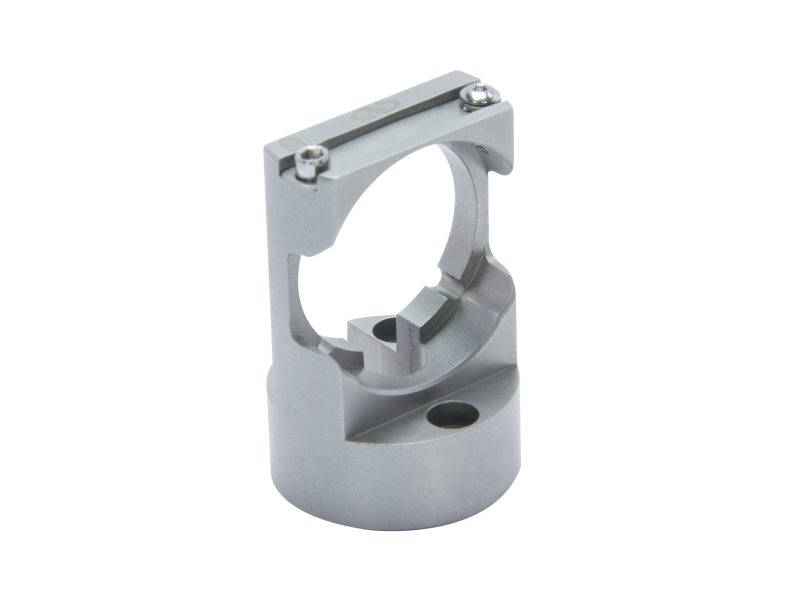

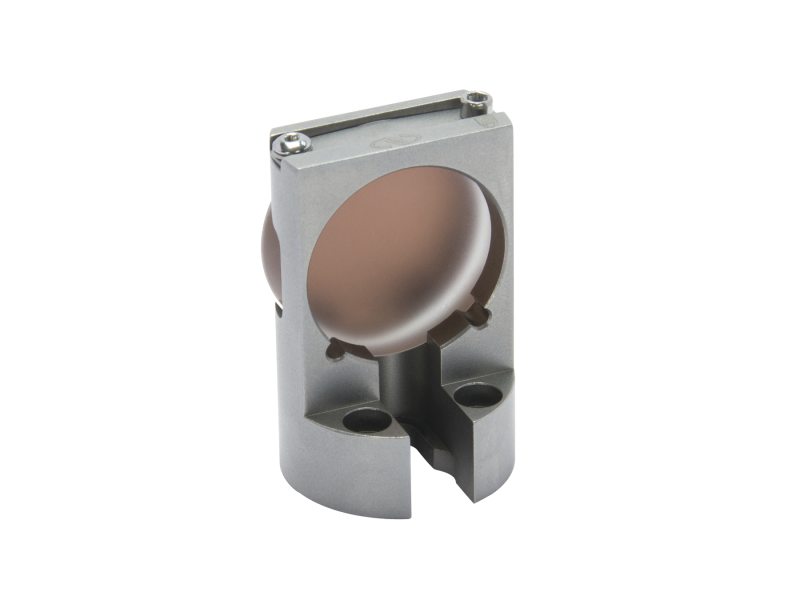

The PX-FM1 fixed mirror mount features stainless steel construction and load distributing mirror clamp for low-stress optic mounting. It has a unique internal slotted base - a similar design to our PX series pedestals and posts.

Specifications

Technical Specs

Mechanism

Fixed
Optic Diameter

25.4 mm
Adjustments

Fixed

Material

Stainless Steel
Thread Type

8-32 (M4) CLR

Mechanism

Fixed
Optic Diameter

25.4 mm
Adjustments

Fixed

Material

Stainless Steel
Thread Type

8-32 (M4) CLR

Resources & Downloads

Other

PX-FM1 RoHS Certificate (278.6 kB, PDF)
PX-FM1_RoHS2021.pdf (680.7 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

PX-FM1 Drawing (135.8 kB, PDF)
