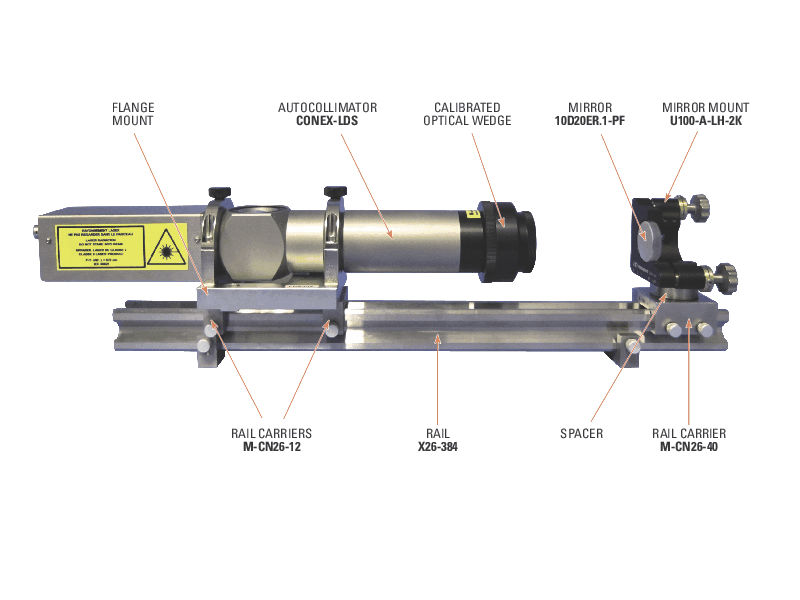

Autocollimator, Optical Head with Integrated Controller

Technical Specs

  • Sensitivity
    0.01 µrad
  • Type
    Autocollimator
  • Beam Diameter
    22.5 mm
  • Beam Divergence
    100 µrad
  • Beam Pointing Stability
    3 µrad / °C
  • Measurement Range
    5 m
  • Noise
    0.003 µrad/√ Hz
  • Peak Power
    1 mW
  • Operating Temperature
    +15 to +25°C
  • Resolution
    0.003 µrad
  • Computer Interfaces
    USB
  • Connectors
    Hirose HR10AF / Hirose HR10AM
  • Power Requirements
    110 - 220 V
  • MTBF
    20,000 h
  • RoHS
    Compliant
