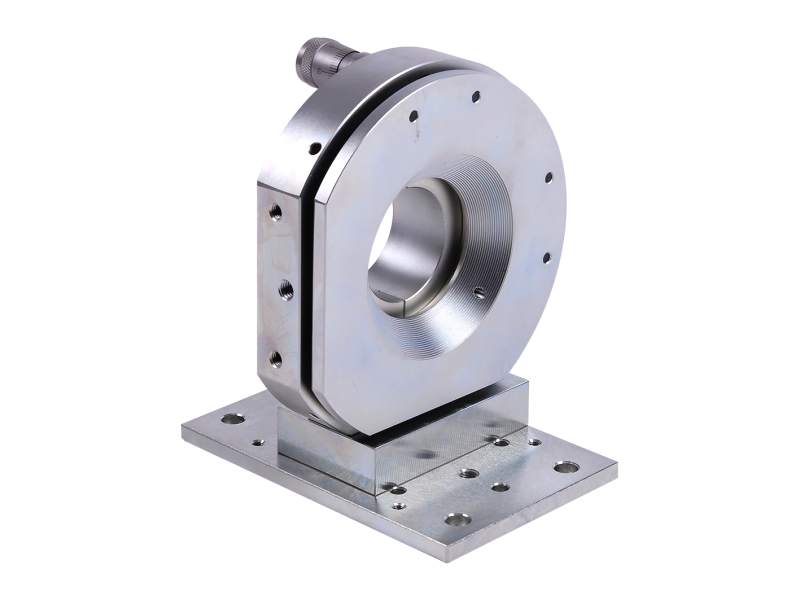

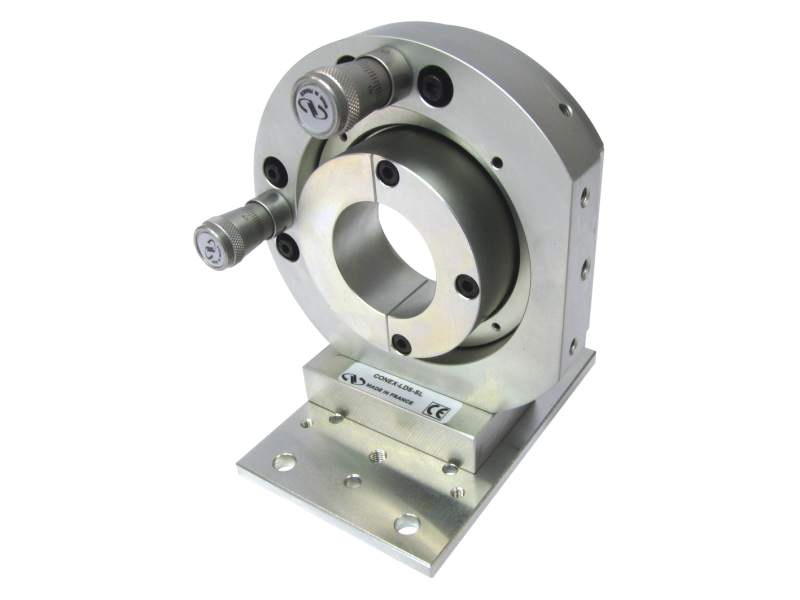

Two Axis Mount, Precision Adjustable, CONEX-LDS Series

The CONEX-LDS-SL Two Axis Precision Adjustable Mount provides precision θ_xθ_y rotational adjustment for the CONEX-LDS. The CONEX-LDS electronic autocollimator performs high-resolution angular measurements for alignment, quality assurance, and metrology applications. For translation and rotational adjustments for CONEX-LDS mounts, see the CONEX-LDS-SLXY.

Specifications

Technical Specs

Type
Adjustable Two Axis Mount
Use
CONEX-LDS Autocollimator
Angular Range
±2°
Axis Height
75 mm

MTBF
20,000 h
Compliance
RoHS 3, CE

Type
Adjustable Two Axis Mount
Use
CONEX-LDS Autocollimator
Angular Range
±2°
Axis Height
75 mm

MTBF
20,000 h
Compliance
RoHS 3, CE

Resources & Downloads

Literature

Electronic Autocollimator for Metrology and Industrial Applications(1.7 MB, PDF)
CONEX-LDS Data Sheet.pdf(0, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Avail.	Price

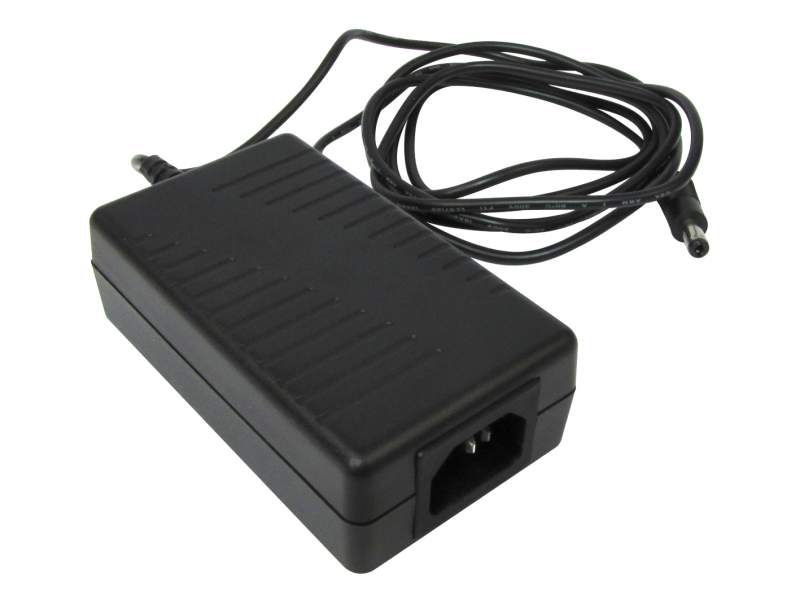

CONEX-LDS-PSAutoranging Power Supply, CONEX-LDS Autocollimator, 90-264 VAC	UNIVERSAL	In Stock	$117

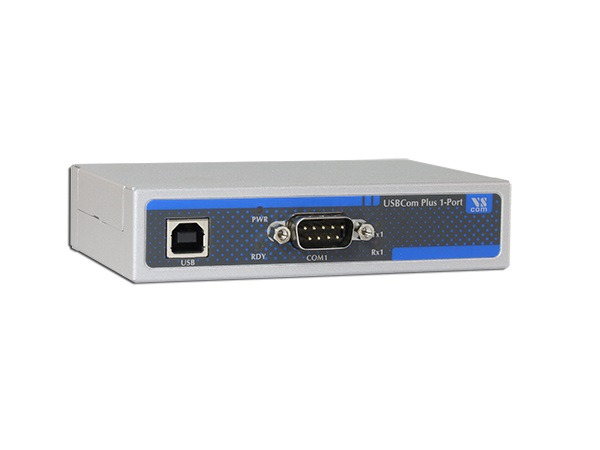

CONEX-USB-RS422USB Interface Converter, CONEX-LDS	UNIVERSAL	In Stock	$480

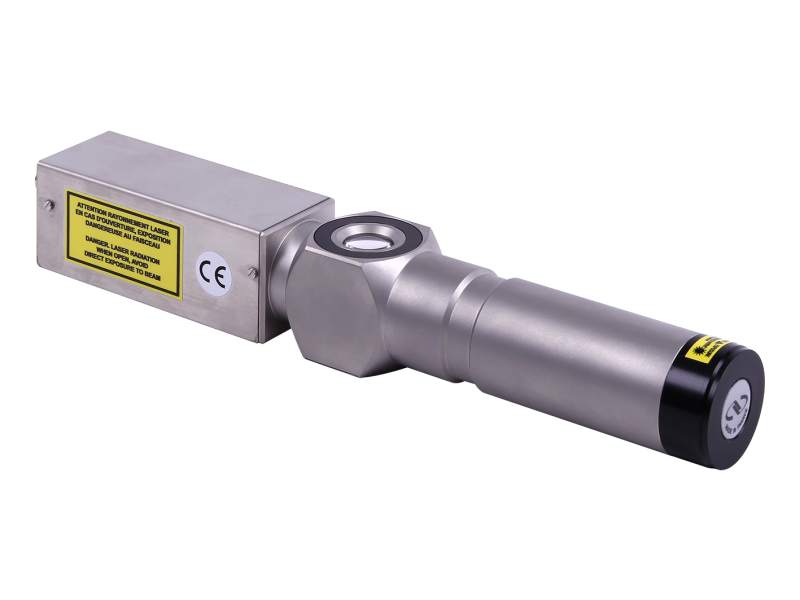

CONEX-LDSAutocollimator, Optical Head with Integrated Controller	UNIVERSAL	In Stock	$23,270

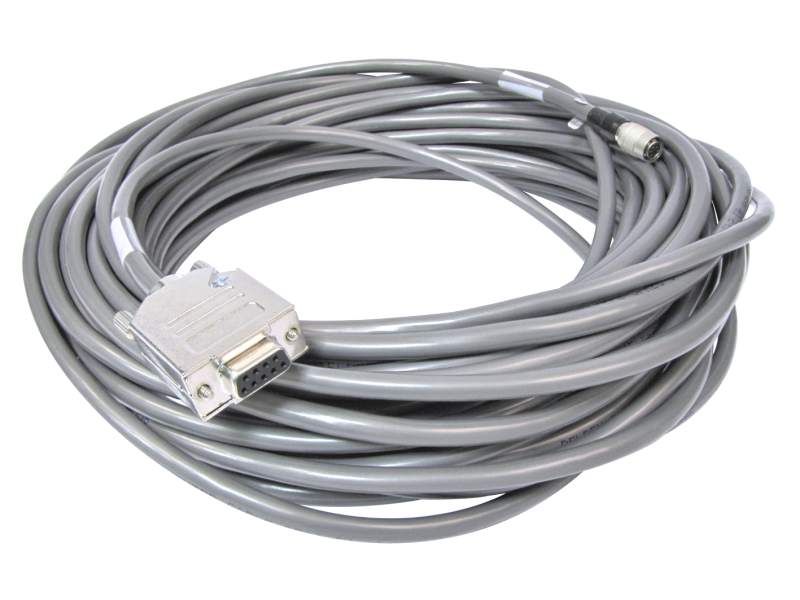

CONEX-LDS-CABLE5RS422 Cable, CONEX-LDS Autocollimator, 5 m	UNIVERSAL	Contact Us	$503

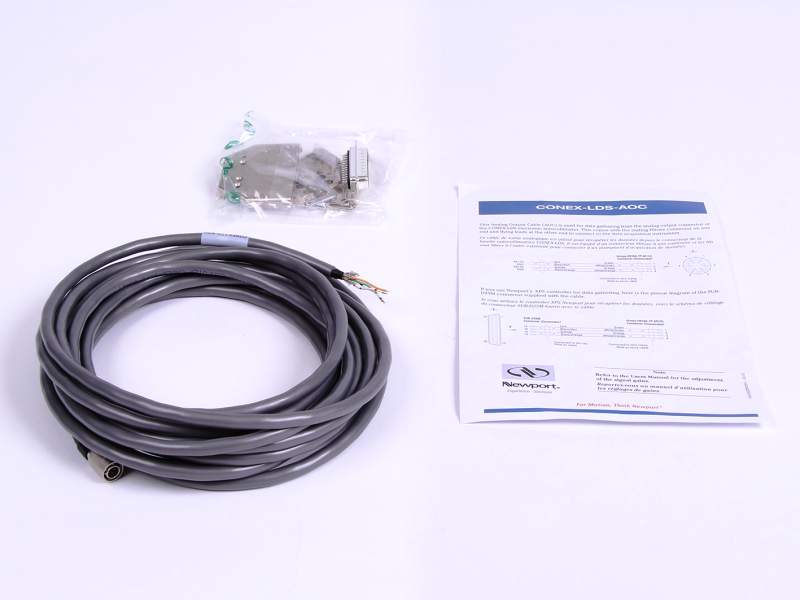

CONEX-LDS-AOCAnalog Output Cable, 5m, CONEX-LDS Autocollimator	UNIVERSAL	Contact Us	$519
