Four Axis Mount, Precision Adjustable, CONEX-LDS Series

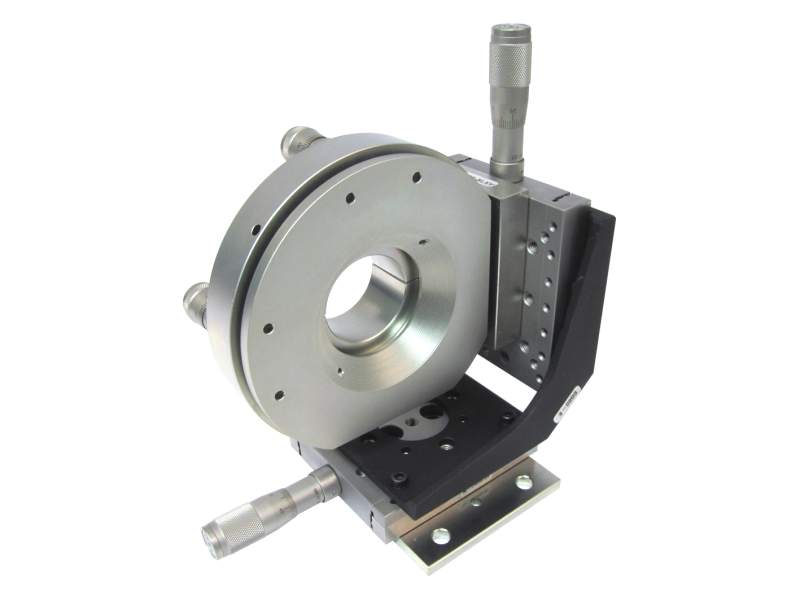

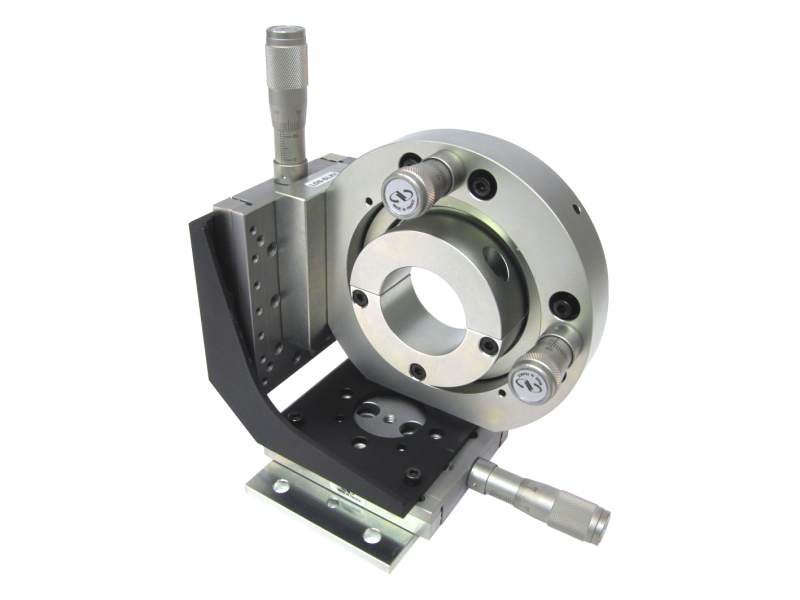

The CONEX-LDS-SLXY Four Axis Precision Adjustable Mount provides precision translation and rotational XYθ_xθ_y adjustment for the CONEX-LDS Autocollimator. The CONEX-LDS electronic autocollimator performs high-resolution angular measurements for alignment, quality assurance, and metrology applications.

Specifications

Technical Specs

Type
Adjustable Four Axis Mount
Use
CONEX-LDS Autocollimator
Angular Range
±2°
Travel Range
±12.5 mm
Axis Height
100 mm

MTBF
20,000 h
Compliance
RoHS 3, CE

Type
Adjustable Four Axis Mount
Use
CONEX-LDS Autocollimator
Angular Range
±2°
Travel Range
±12.5 mm
Axis Height
100 mm

MTBF
20,000 h
Compliance
RoHS 3, CE
