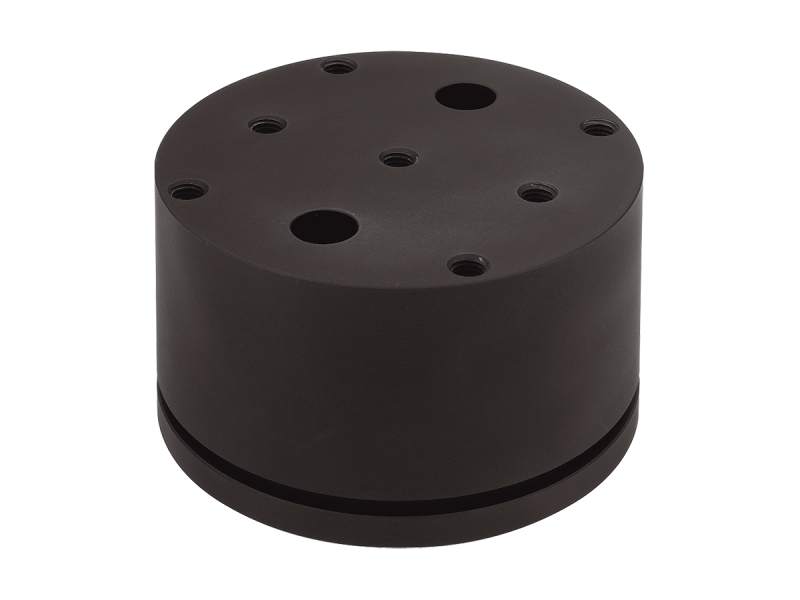

Riser Base, 50 mm, Metric, SL Series Optical Mounts

Model: M-RH-50

$133

In Stock

Compare

Add to List

Product Series Overview

Mirror Mount Mounting Adapters

The M-RH-50 Riser Base is a 50 mm high riser base with metric mounting holes for use with the SL Series Optical Mounts. SL Series Mounts are configured with a base plate and riser (if required) for a nominal 50 or 75 mm optical axis height. Riser blocks of 25 mm and 50 mm may be placed in any combination beneath the base plate to achieve any optical axis height (>75) which is a multiple of 25 mm. For continuously variable height adjustment we recommend the ECN-80 elevator base.

Specifications

Technical Specs

Material

Anodized Aluminum
Special Features

Mounting adapter

Material

Anodized Aluminum
Special Features

Mounting adapter

Resources & Downloads

Other

M-RH-50 RoHS Certificate (278.6 kB, PDF)
