Optical Filter Mount, Spring-Loaded, 50.8 x 50.8 mm Square Optics
Optical Filter Mount, Spring-Loaded, 50.8 x 50.8 mm Square Optics
Model: M-PPF50
Product Series Overview

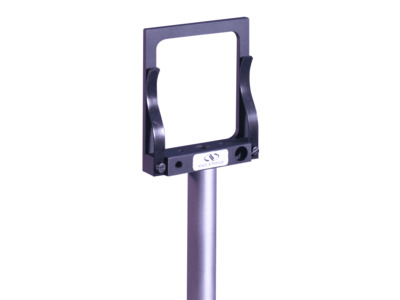

Drop-in Spring Clamp Filter HoldersThe M-PPF50 Spring-Loaded Filter mount supports 2.0 in. (50.8 mm) square filters with a thickness of up to 5 mm. Two steel springs hold the filter on a frame with a 1.57 in. (40 mm) clear aperture. Two M-PPF50 filter holders can be screwed to one another to form a unit that holds two filters. This filter holder has an M6 threaded hole for post mounting.
Resources & Downloads
2D Product Drawings
PPF50-S(80.1 kB, PDF)
Other
M-PPF50 RoHS Certificate(278.4 kB, PDF)
