Post Clamp, Optical Filter, 0.5 in. Optical Posts, 1/4-20 Thread

Optical Post Filter Holders

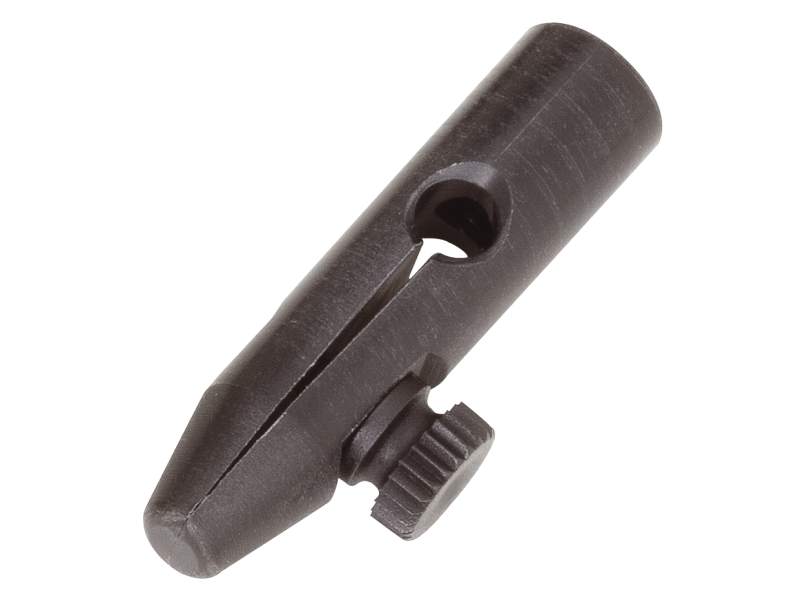

The FC-1 Filter Clamp is convenient for holding thin objects such as optical filters, transparencies or even razor blades used as knife edges. A 1/4-20 set screw may be threaded into the Delrin clamp for attachment to the end of an SP Series Post.

Specifications

Technical Specs

Type
Post Filter Holder
Thread Type
1/4-20
Inside Diameter
12.7 mm
Pack Quantity
1

Weight
8 g

Type
Post Filter Holder
Thread Type
1/4-20
Inside Diameter
12.7 mm
Pack Quantity
1

Weight
8 g

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

FC-1-25 perc-S(86.9 kB, PDF)

Other

FC-1 RoHS Certificate(278.4 kB, PDF)
FC-1_RoHS2021.pdf(682 kB, PDF)

Related Products

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

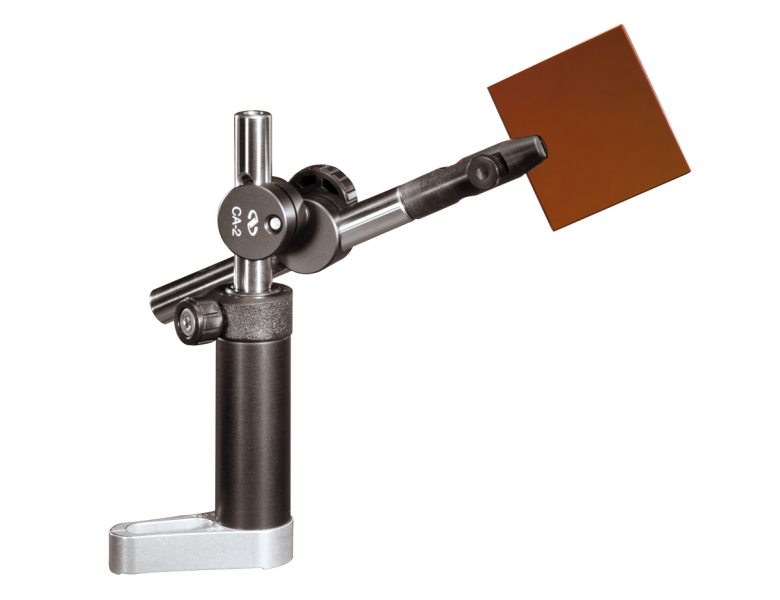

		CA-2Optical Post Clamp, Adjustable Angle, 0.5 in. Diameter Optical Posts	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$36

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CA-TOptical Post End Clamp, Right-Angle, 0.5 in. Post, 8-32 (M4) CLR	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$17.60

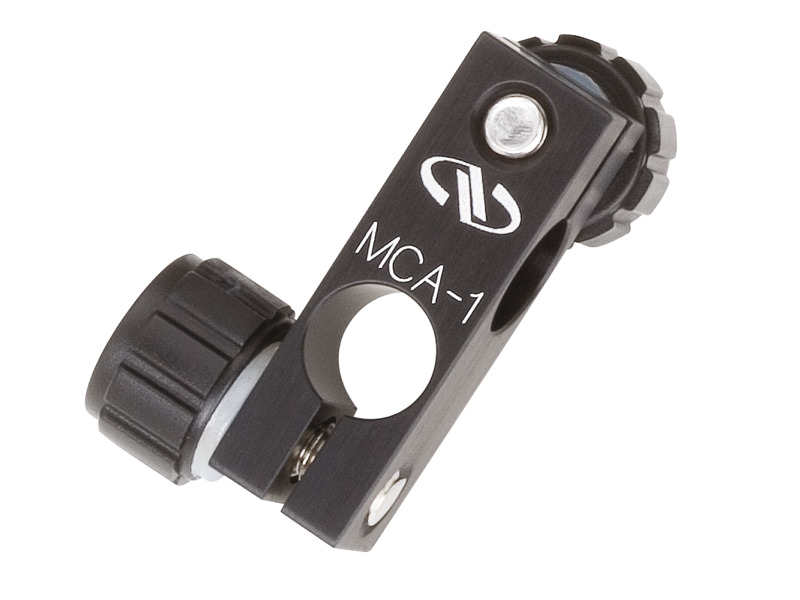

		MCA-1Right-Angle Post Clamp, 0.313 in. Diameter Optical Posts, 8-32 Thread	IMPERIAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$43
