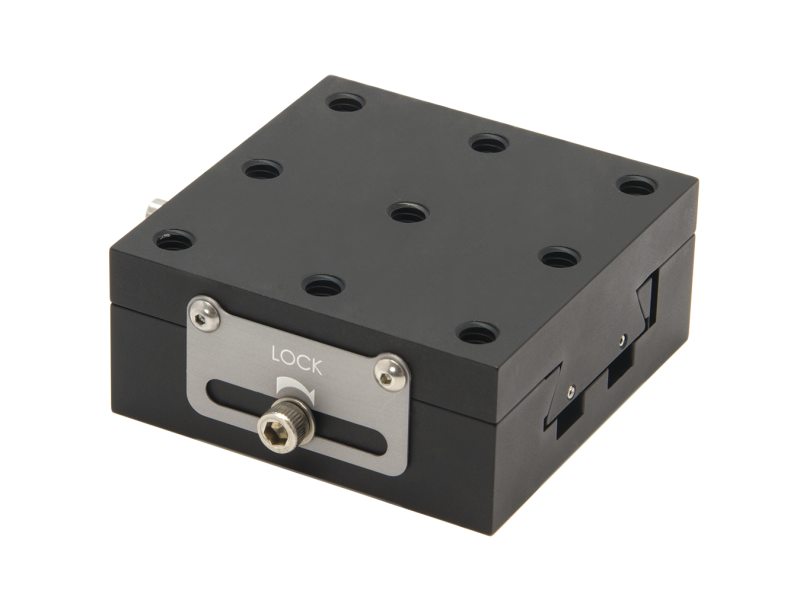

Manual Linear Stage, Dovetail, 25 mm Travel, 65 x 65 mm, Metric

  • Axes of Travel
    X
  • Maximum Stage Travel
    25.4 mm
  • Centered Normal Load Capacity
    170 N
  • Vertical Axial Load Capacity
    86 N
  • Recommended Actuators
    Included
  • Sensitivity
    1 µm
  • Material
    Aluminum
  • Bearings
    Dovetail Slide
  • Drive Location
    Center drive
  • Platform Size
    65 x 65 mm
  • Weight
    286 g
  • Thread Type
    M6
