Sorry, this product is no longer offered for sale. The recommended replacement product is M-BPH-2G.

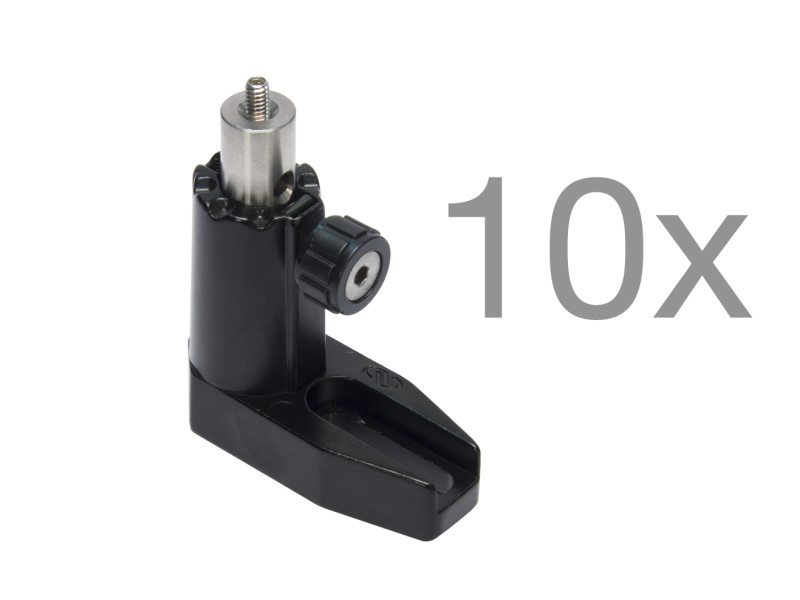

Optical Post and Holder Pack, BPH-2 Holder With M-SP-1.5 Post, Qty 10
The M-BPH-2G-PK is a cost-saving 10-Pack of BPH-2 post holders bundled with M-SP-1.5 posts. The BPH Slotted-Base Post Holder is a patent pending re-invention of the classical optical post holder, combining a slim slotted base with a unique post holder. The top surface of the post holder has a series of kinematic indentations which, when used with the BPH-C-5 Post Collar, provide repeatable rotational alignment and indexing at 45° increments. The base features both angled and straight reference surfaces allowing edge-to-edge placement of adjacent post holders and, with the addition of the BPH-XB-5 Base Extender, can convert to a double-slotted base. The flat bottom also makes mounting more versatile and improves stability.
Specifications
- TypeSlotted Base Post Holder
- Height50.8 mm
- Thread TypeM4 and M6
- MaterialCast Aluminum
- Pack Quantity10
Resources & Downloads
2D Product Drawings
BPH Drawing(134.7 kB, PDF)
Other
M-BPH-2G-PK RoHS Certificate(278.1 kB, PDF) M-BPH-2G-PK_RoHS2021.pdf(682.1 kB, PDF)
