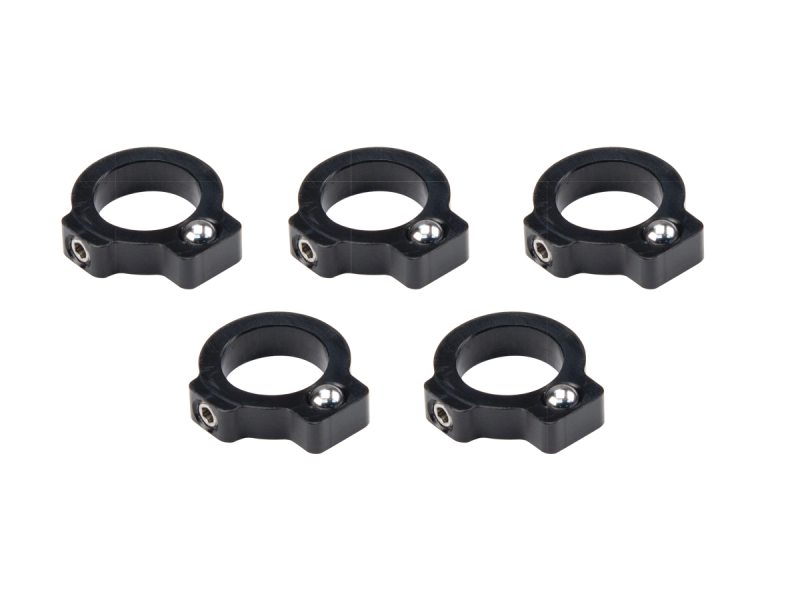

Indexing Post Collar Pack, 0.5 in. Optical Posts, Qty 5

Model: BPH-C-5

$27

In Stock

Compare

Add to List

Product Series Overview

Non-Bridging Slotted-Base Optical Post Holders

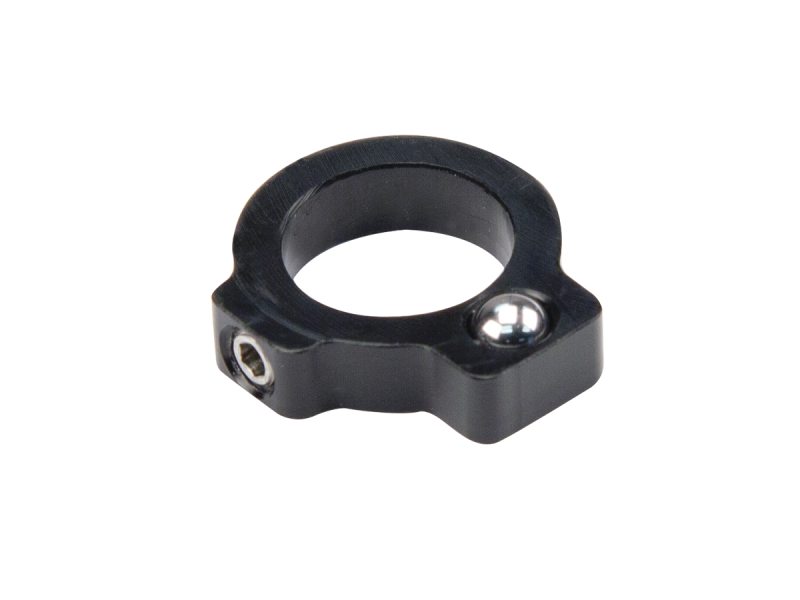

The BPH-C-5 is a pack of indexing post collars for use with the BPH-series of Multifunction Post Holders. The top surface of the BPH post holder has a series of kinematic indentations which, when used with the BPH-C-5 Post Collar, provide repeatable rotational alignment and indexing at 45-degree increments.

Specifications

Technical Specs

Type

Post Collar Pack
Height

25.4 mm
Thread Type

Set screw
Material

Aluminum

Pack Quantity

5
Inside Diameter

12.7

Type

Post Collar Pack
Height

25.4 mm
Thread Type

Set screw
Material

Aluminum

Pack Quantity

5
Inside Diameter

12.7

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BPH-C-320 (80.6 kB, PDF)

Other

BPH-C-5 RoHS Certificate (277.2 kB, PDF)
BPH-C-5_RoHS2021.pdf (679.5 kB, PDF)
