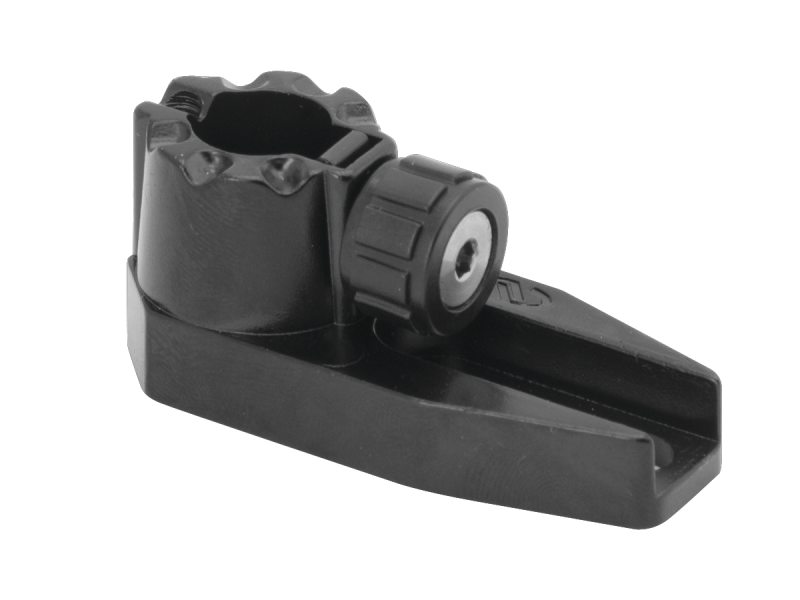

Optical Post Holder, Slotted-Base, 1.0 in. Height, 0.5 in. Posts

Model: BPH-1

$13.10

In Stock

Compare

Add to List

Product Series Overview

Non-Bridging Slotted-Base Optical Post Holders

The BPH-1 Slotted-Base Post Holder is a patent pending re-invention of the classical optical post holder, combining a slim slotted base with a unique post holder. The top surface of the post holder has a series of kinematic indentations which, when used with the BPH-C-5 Post Collar, provide repeatable rotational alignment and indexing at 45° increments. The base features both angled and straight reference surfaces allowing edge-to-edge placement of adjacent post holders and, with the addition of the BPH-XB-5 Base Extender, can convert to a double-slotted base. The flat bottom also makes mounting more versatile and improves stability.

Specifications

Technical Specs

Type

Slotted Base Post Holder
Height

25.4 mm
Thread Type

1/4-20 (M6) Slot
Material

Cast Aluminum

Pack Quantity

1
Inside Diameter

12.7

Type

Slotted Base Post Holder
Height

25.4 mm
Thread Type

1/4-20 (M6) Slot
Material

Cast Aluminum

Pack Quantity

1
Inside Diameter

12.7

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

BPH Drawing (134.7 kB, PDF)

Other

BPH-1 RoHS Certificate (278.3 kB, PDF)
BPH-1_RoHS2021.pdf (681.6 kB, PDF)
