LH-1PM Fixed Cube Mount

Fixed Cube Mount, 1.0 in. (25.4 mm), A-LINE

Model: LH-1PM

$47.00

In Stock

Compare

Add to List

Product Series Overview

A-Line™ Fixed Cube Mounts

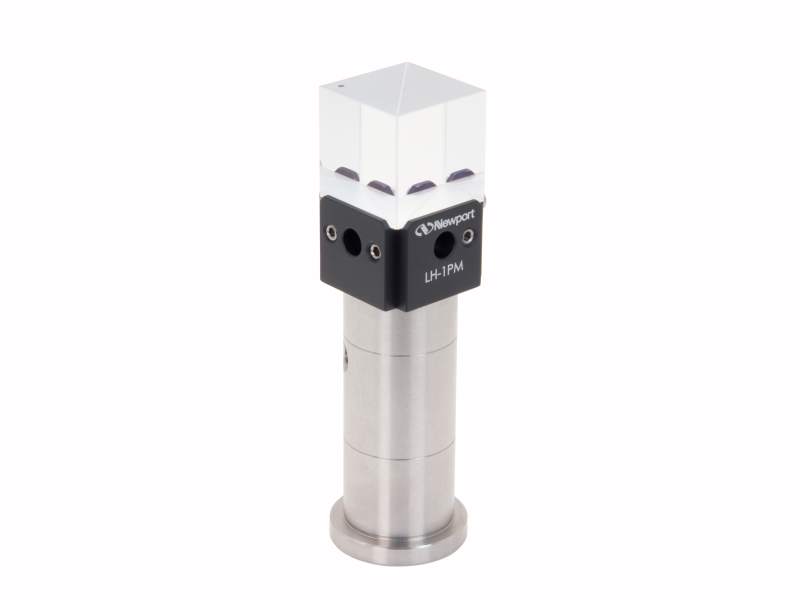

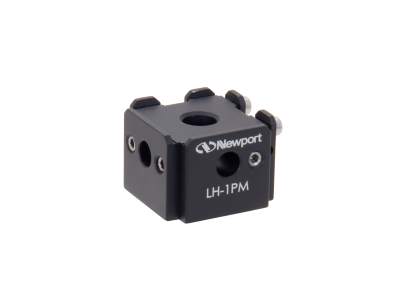

The A-LINE™ LH-1PM Fixed Cube Mount is a convenient and economical solution for mounting 1.0 inch (25.4 mm) cube beamsplitters. The mount consists of a novel edge clamping feature to hold the optic firmly, but gently. The holder incorporates an 8-32 (M4) counterbored mounting hole for post mounting on PS, SP, and MSP Series posts. All four sides of the holder also have special 6-mm alignment holes, which can be used with LH or GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts.

Specifications

Technical Specs

Type

Fixed Cube Mount
Adjustment Type

Fixed
Adjustments

Fixed
Optic Diameter

25.4 mm Cube
Optical Axis Height

31.8 mm

Thread Type

8-32 (M4) CLR
Optic Retaining Thread

Clamp
Clear Aperture

23.9 mm

Type

Fixed Cube Mount
Adjustment Type

Fixed
Adjustments

Fixed
Optic Diameter

25.4 mm Cube
Optical Axis Height

31.8 mm

Thread Type

8-32 (M4) CLR
Optic Retaining Thread

Clamp
Clear Aperture

23.9 mm

Resources & Downloads

Other

LH-1PM RoHS Certificate (277.4 kB, PDF)
LH-1PM_RoHS2021.pdf (679.3 kB, PDF)

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

LH-1PM DWG (144.9 kB, PDF)
