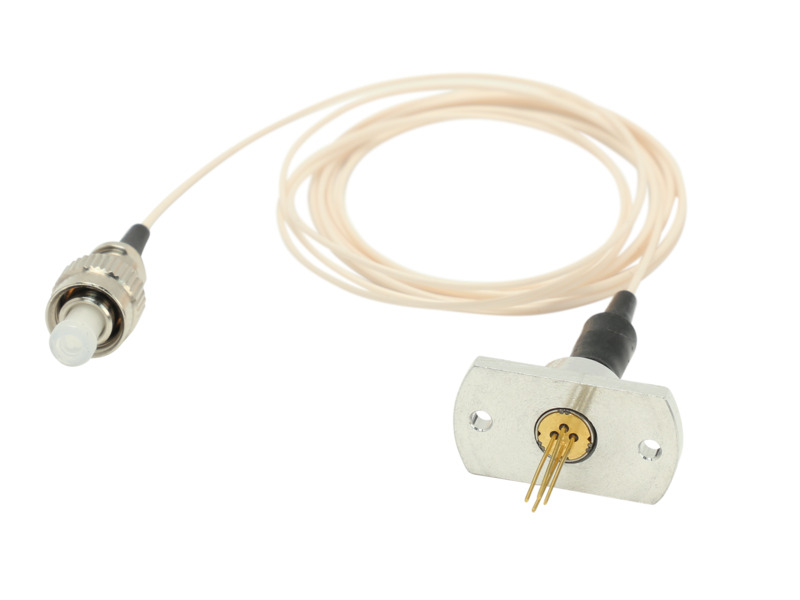

Laser Diode, Fiber Pigtailed, 1550 nm, 1.5 mW, 9/125 Single-mode, FC

Technical Specs

  • Type
    Fiber Pigtailed Laser Diode
  • Center Wavelength
    1550 nm
  • Center Wavelength Tolerance
    ±15 nm
  • Output Power
    1.5 mW
  • Maximum Operating Current
    30 mA
  • Threshold Current
    20 mA
  • Rise/Fall Time
    0.3 ns
  • Cladding Diameter
    125 µm
  • Core Diameter
    9 µm
  • Operating Temperature
    -20 to 60°C
