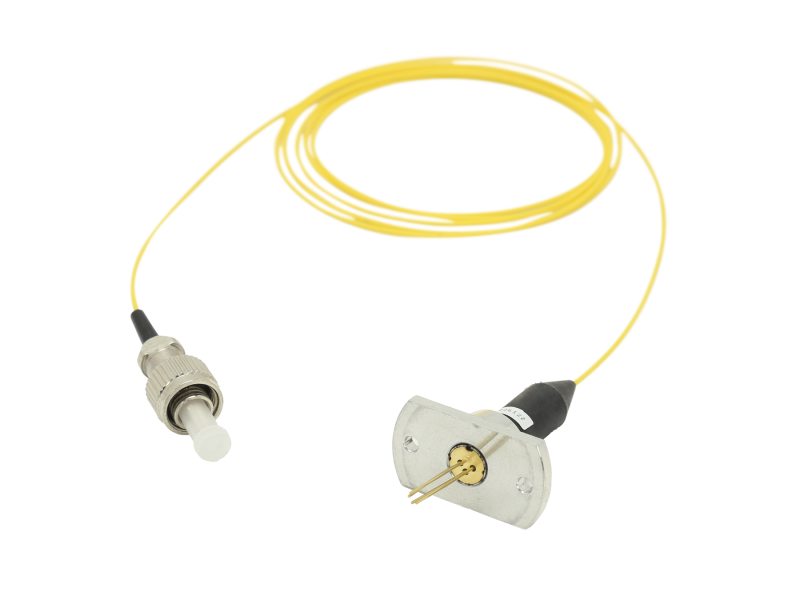

Laser Diode, Fiber Pigtailed, 1310 nm, 1.5 mW, 9/125 Single-mode, FC.
Laser Diode, Fiber Pigtailed, 1310 nm, 1.5 mW, 9/125 Single-mode, FC.
Model: LD-1310-31B
In Stock
Product Series Overview
Single Mode Fiber Pigtailed Laser DiodesThe LD-1310-31B Fiber Coupled Laser Diode consists of Fabry-Perot lasers, having a fiber pigtail precisely attached for optimum coupling efficiency. This 1310 nm center wavelength version has a typical 1.5 mW of output power and includes a back facet photodiode. It is compatible with Newport’s 710 Temperature Controlled Mount. The 9/125 μm single-mode fiber pigtail is terminated with an FC style fiber optic connector. Applications include high-speed data and telecommunications systems and instrumentation and optical instruments requiring a laser diode light source. Backed by 30 day return-for-credit when the product is returned in the original sealed bag with no sign of physical damage. The product is highly ESD sensitive so a grounding wrist strap, like the FK-STRAP, is suggested to prevent damage.
Resources & Downloads
2D Product Drawings
LD-1310-31B Datasheet.pdf(599.5 kB, PDF)
Related Products
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

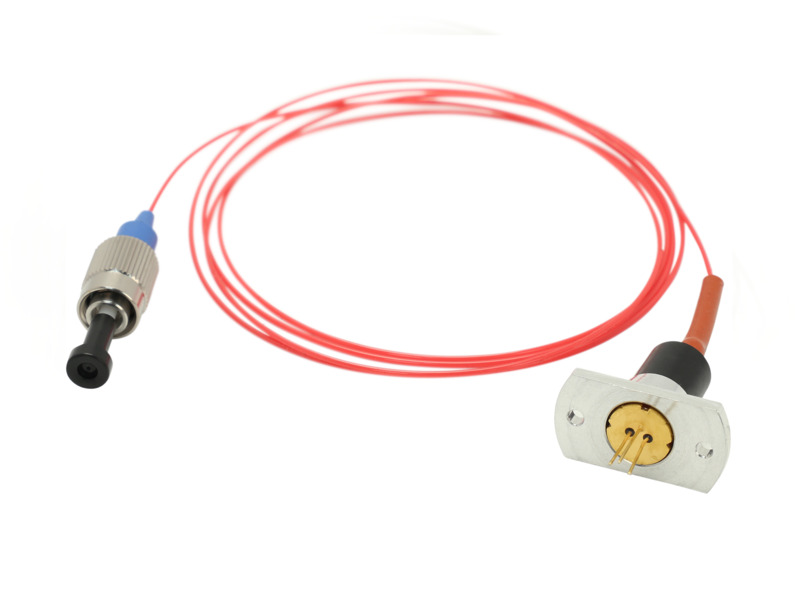

 | LD-635-11ALaser Diode, Fiber Pigtailed, 635 nm, 0.3 mW, 4/125 Single-mode, FC | 3 Weeks | ||||
