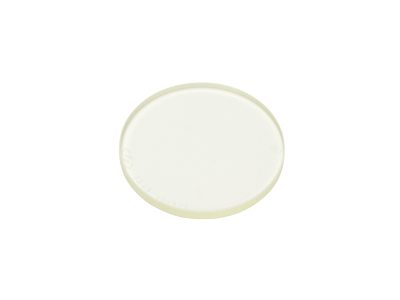

Longpass Filter, Colored Glass, 25.4 mm, 400 nm Cut-on, GG400 Glass

Colored Glass Absorptive Longpass Filters

The FSR-GG400 Colored Glass Longpass Filter is a 25.4 mm diameter 400 nm cut-on optical filter made of Schott GG400 filter glass. This long-wave pass edge filter is precision polished for demanding research or OEM applications.

Specifications

Technical Specs

Type
Colored Glass Longpass Filter
Optic Size
Ø25.4 mm
Cut-on Wavelength
400 nm
Angle of Incidence
0°
Material
Schott GG400 or equivalent
Thickness Tolerance
±0.1 mm
Surface Flatness
≤1λ at 632.8 nm over the clear aperture
Thickness
2.0 to 3.0 mm, typical
Surface Quality
60-40 scratch-dig

Size Tolerance
±0.3 mm
Clear Aperture
central ≥ 80% of diameter
Chamfers
Up to 1 mm face width
Cleaning
See How to Clean Optics
Damage Threshold
30 W/cm² CW, Typical
Wedge
≤3 arc min
Chamfers Angle Tolerance
45° ±15°

Type
Colored Glass Longpass Filter
Optic Size
Ø25.4 mm
Cut-on Wavelength
400 nm
Angle of Incidence
0°
Material
Schott GG400 or equivalent
Thickness Tolerance
±0.1 mm
Surface Flatness
≤1λ at 632.8 nm over the clear aperture
Thickness
2.0 to 3.0 mm, typical
Surface Quality
60-40 scratch-dig

Size Tolerance
±0.3 mm
Clear Aperture
central ≥ 80% of diameter
Chamfers
Up to 1 mm face width
Cleaning
See How to Clean Optics
Damage Threshold
30 W/cm² CW, Typical
Wedge
≤3 arc min
Chamfers Angle Tolerance
45° ±15°
