Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 0.2 OD at 632.8 nm

UV Fused Silica Metallic ND Filters

UV Fused Silica Metallic ND Filters

UV Fused Silica Metallic ND Filters

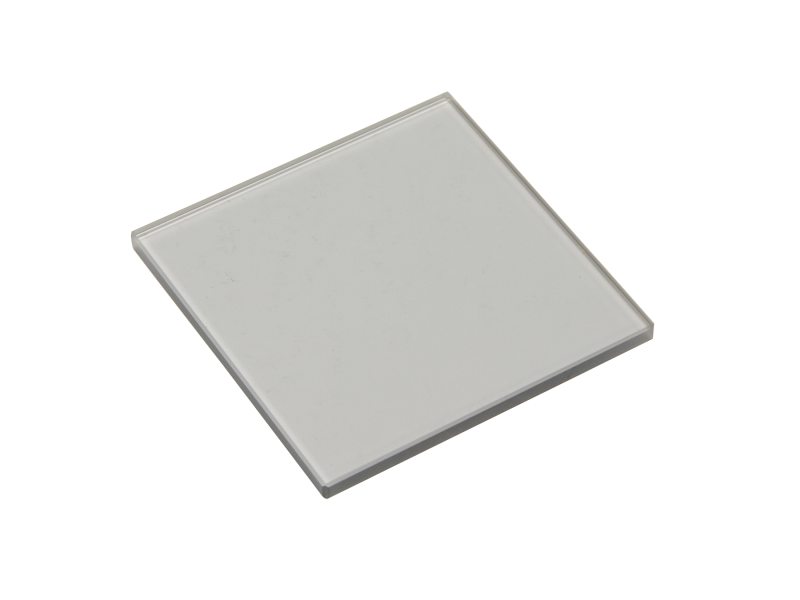

The FSQ-ND02 UV Fused Silica Metallic Neutral Density Filter is a 50.8 x 50.8 mm square UV fused silica metallic ND filter with an optical density of 0.2 at 632.8 nm. Our metallic neutral density coatings provide broadband attenuation for lower power applications. The coating is deposited on one side of an ultra-pure UV grade fused silica substrate providing excellent transmission from the UV to near-infrared. All filters are permanently marked with the optical density.

Specifications

Technical Specs

Size
50.8 x 50.8 mm
Wavelength Range
350 - 2000 nm
Optical Density
0.2
Optical Density Tolerance
±7% @ 632.8 nm
Transmission
63.1% @ 632.8 nm
Angle of Incidence
0°
Material
UV grade fused silica or equivalent
Damage Threshold
30 W/cm² CW, typical; not recommended for pulsed laser use
Thickness
3.0 mm
Thickness Tolerance
±0.25 mm

Surface Flatness
≤2λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Clear Aperture
≥central 80% of dimensions
Wedge
≤3 arc min
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
Cleaning
See How to Clean Optics

Size
50.8 x 50.8 mm
Wavelength Range
350 - 2000 nm
Optical Density
0.2
Optical Density Tolerance
±7% @ 632.8 nm
Transmission
63.1% @ 632.8 nm
Angle of Incidence
0°
Material
UV grade fused silica or equivalent
Damage Threshold
30 W/cm² CW, typical; not recommended for pulsed laser use
Thickness
3.0 mm
Thickness Tolerance
±0.25 mm

Surface Flatness
≤2λ at 632.8 nm over the clear aperture
Surface Quality
60-40 scratch-dig
Clear Aperture
≥central 80% of dimensions
Wedge
≤3 arc min
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-48497A, adhesion, humidity, moderate abrasion, and solubility requirements
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

COLOREDG-S(61 kB, PDF)

Other

FSQ-ND02 RoHS Certificate(264.7 kB, PDF)
FSQ-ND02_ROHS2-2021.pdf(280.5 kB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		25FS01DV.1Neutral Density Filter, Circular Variable Metallic, UVFS, 25 mm, 0-1 OD	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$295

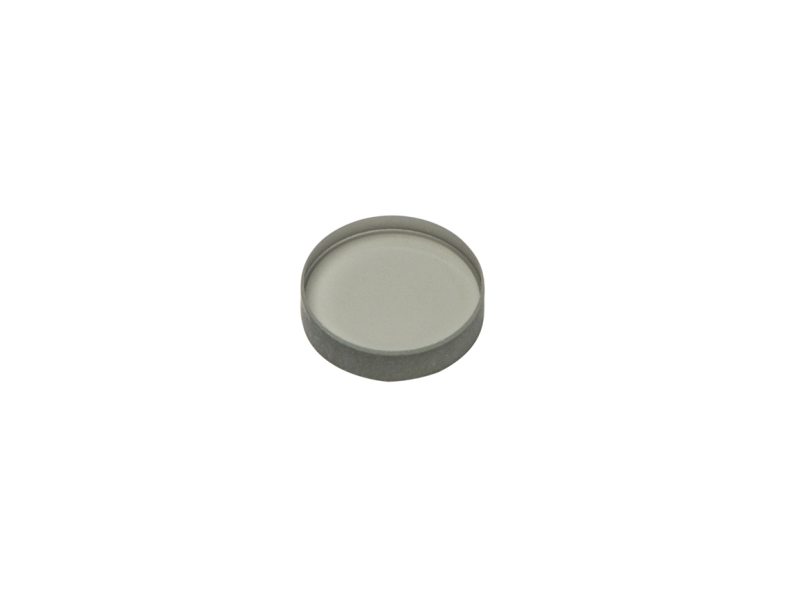

		FR-OD20Neutral Density Filter, Absorptive, 12.7 mm, 0.2 OD at 546.1 nm	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$31

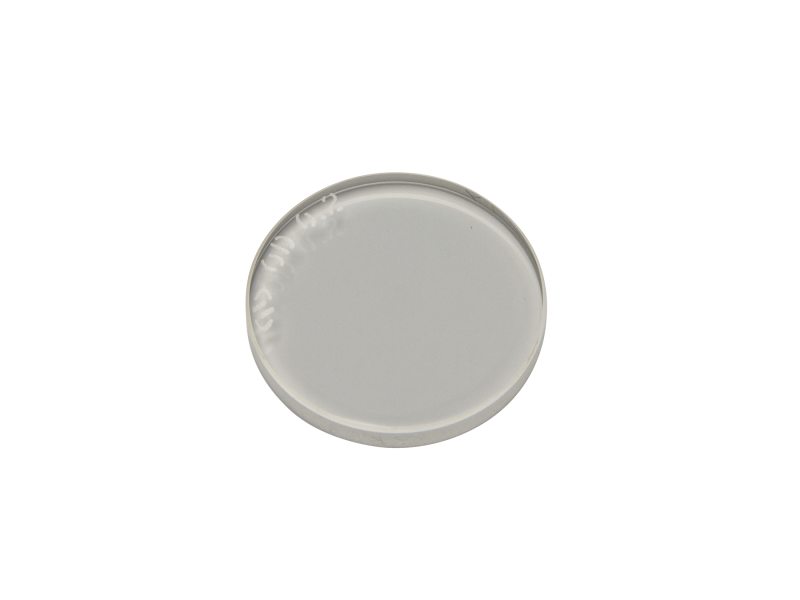

		FRQ-ND02Metallic ND Filter, UV Fused Silica, 25.4 mm, 0.2 OD at 632.8 nm	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$73

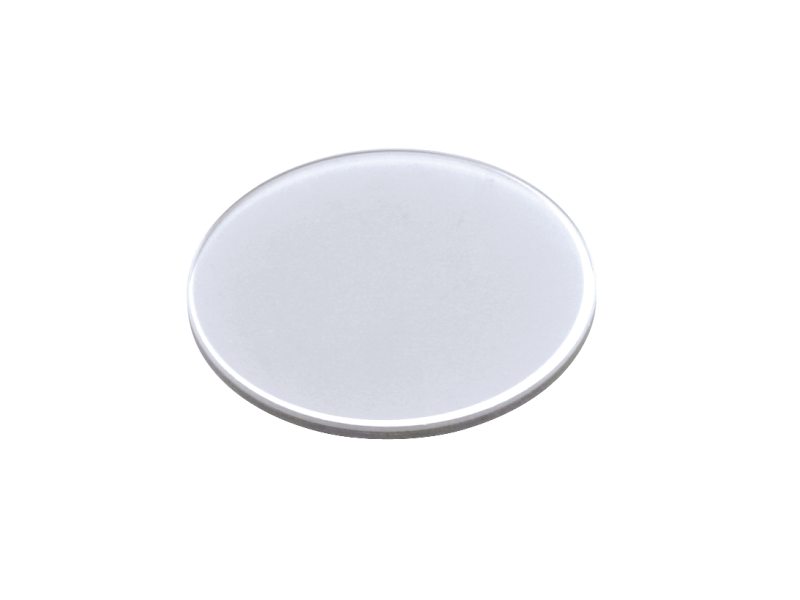

		5232Neutral Density Filter, 0.2 Optical Density, 1.0 in. Diameter	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$47

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CYM-2RCylindrical Lens Mount, Adjustable, 50.8 mm Max, +/- 5 Deg., 2 arcs sec	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$215
		FH-2SOptical Filter Holder, Drop-in, 50.8 mm Optics	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$105
		M-PPL17Thick Optical Filter Holder, Thumbscrew Clamp, Up To 12 mm Thick	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$154

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

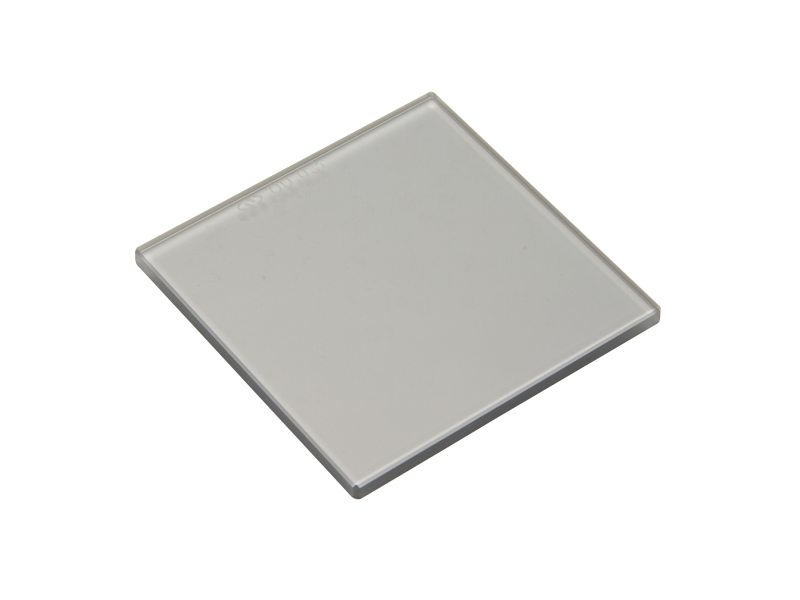

		FSQ-ND03Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 0.3 OD at 632.8 nm	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$163

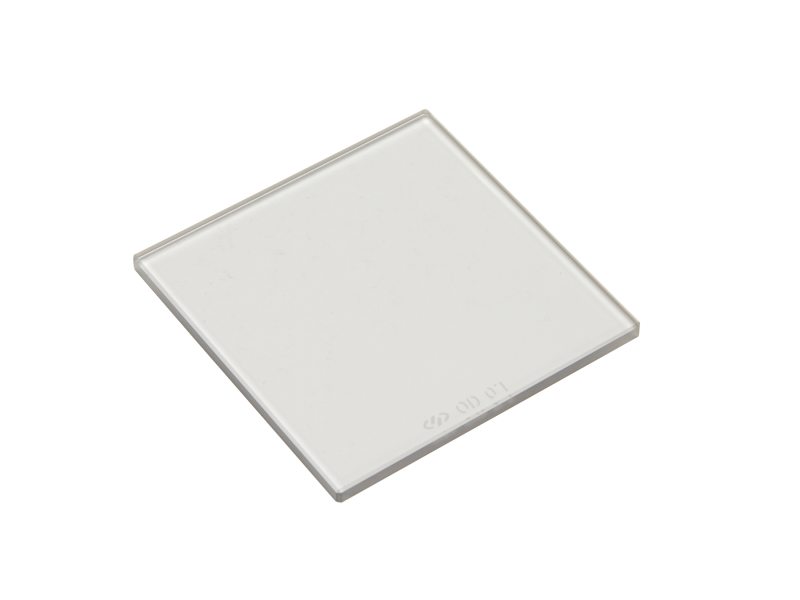

		FSQ-ND01Metallic ND Filter, UV Fused Silica, 50.8x50.8 mm, 0.1 OD at 632.8 nm	UNIVERSAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$148
