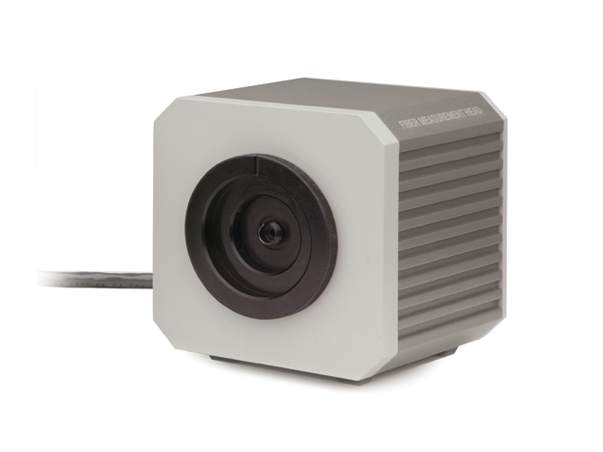

Fiber Optic Measurement Head, -60 to +30dBm, 800-1650nm, InGaAs

Model: FMH-87107

$2,785

6 Weeks

Compare

Add to List

Product Series Overview

Fiber Optic Sensors for ILX Optical Meters

The FMH-87107 Fiber Optic Measurement Head is an integrating sphere based measurement head compatible with the FPM-8220 Fiber Optic Power Meter. The FMH-87107 is designed to measure optical power from -60 dBm to +30 dBm over a wavelength range of 800-1650nm. Interchangeable fiber optic adapters allow the FMH-87107 Fiber Optic Measurement Head to be compatible with a wide range of connectors including FC, SC, LC, bare FC ferrule, and bare fiber. Careful attention to the design allows the FMH-87107 Fiber Optic Measurement Head to achieve a polarization dependent response of less than ±0.006 dB.

Note: FC adapter not included with measurement head.

Optical Meter Required and Sold Separately

Specifications

Technical Specs

Detector Type

InGaAs
Spectral Range

800 - 1650 nm
Use

FPM-8220

Power Range

-60 to +30 dBm (1nW to 1W)

Detector Type

InGaAs
Spectral Range

800 - 1650 nm
Use

FPM-8220

Power Range

-60 to +30 dBm (1nW to 1W)

Resources & Downloads

Technical Notes

Literature

FPM-8220 Fiber Optic Power Meter and FMH Measurement Heads Brochure (1 MB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BF820 Bare Fiber Holder, CA120 or AO120 / AO122 Fiber Adapter Mount	UNIVERSAL	4 Weeks	$475
CA100 FC Fiber Adapter, For FMH Series and OMH-6790B	UNIVERSAL	In Stock	$210
CA120 Bare Fiber Adapter Mount, For FMH Series and OMH-6790B	UNIVERSAL	In Stock	$290
CA150 SC Fiber Adapter, For FMH Series and OMH-6790B	UNIVERSAL	4 Weeks	$305
CA20001 LC Fiber Adapter, For FMH Series and OMH-6790B	UNIVERSAL	In Stock	$265
CA250 Bare Ferrule Adapter, For FMH Series and OMH-6790B	UNIVERSAL	5 Weeks	$315

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		FMH-8705 Fiber Optic Measurement Head, -85 to +1.5dBm, 800-1650nm, InGaAs	UNIVERSAL		In Stock	$1,990
		FMH-8715 Fiber Optic Measurement Head, -70 to +20dBm, 800-1650nm, InGaAs	UNIVERSAL		In Stock	$2,725

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		FPM-8220-120V Fiber Optic Power Meter, 120V	UNIVERSAL		6 Weeks	$2,935
		FPM-8220-220V Fiber Optic Power Meter, 220V	UNIVERSAL		6 Weeks	$2,935
