Fiber Coupler, Wavelength Flattened, 1 x 16, 1550 nm, FC/UPC

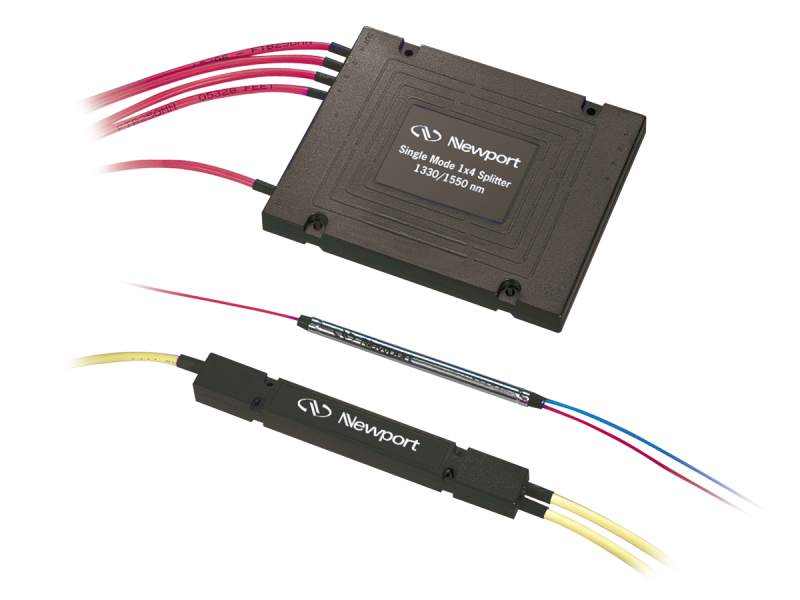

fiber optic couplers. 3 coupler types shown

fiber optic couplers. 3 coupler types shown

Fiber Coupler, Wavelength Flattened, 1 x 16, 1550 nm, FC/UPC

Model: F-CPL-F16150-FCUPC

Clearance
Save 50% on Limited Stock Clearance Products!
Learn More

$799

In Stock

Compare

Add to List

Product Series Overview

1x4, 1x8 and 1x16 Singlemode Fiber Couplers

The F-CPL-F16150-FCUPC Wavelength Flattened Fiber Optic Coupler extends the optimal wavelength range to a band of ±40 nm around the center wavelength of 1550 nm. This 1 x 16 coupler has FC/UPC connectors.

Specifications

Technical Specs

Type

1x16 Wavelength Flattened Coupler
Fiber Type

Singlemode
Fiber Connector

FC/UPC
Operating Wavelength

1550 nm
Maximum Insertion Loss

14 dB
Bandwidth

±40 nm

Operating Temperature

-40 to 85°C
Option Code

74
Package Type

E
Operating Humidity

90–95%
Uniformity

2.4 dB

Type

1x16 Wavelength Flattened Coupler
Fiber Type

Singlemode
Fiber Connector

FC/UPC
Operating Wavelength

1550 nm
Maximum Insertion Loss

14 dB
Bandwidth

±40 nm

Operating Temperature

-40 to 85°C
Option Code

74
Package Type

E
Operating Humidity

90–95%
Uniformity

2.4 dB

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

Fiber pkg -E-S (67.2 kB, PDF)
