Fiber Coupler, Wavelength Flattened, 1 x 16, 1550 nm

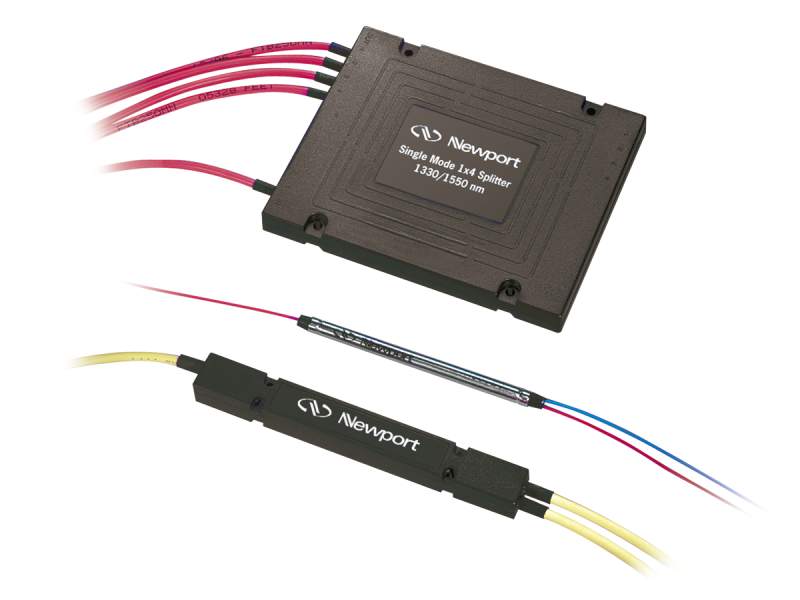

fiber optic couplers. 3 coupler types shown

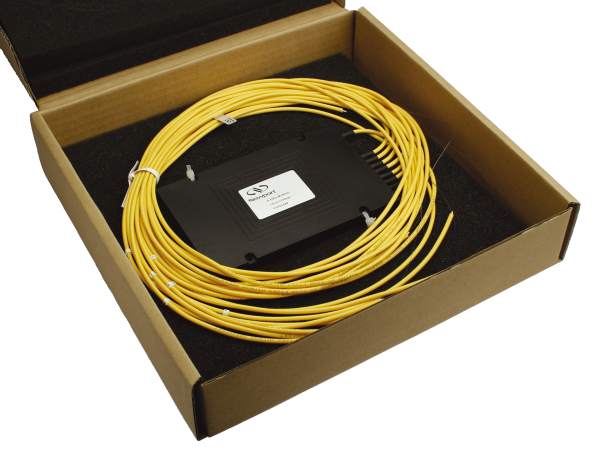

The F-CPL-F16150 Single Mode Wavelength Flattened Coupler allows bi-directional coupling and can be used to either split or combine signals with an even ratio. It uses an SMF-28e+ fiber, with low insertion loss and optimized over 1550 nm window with ±40 nm Bandwidth. This 1x16 coupler features a fully ruggedized black plastic housing with 1 meter long, 3 mm PVC covered pigtails, unterminated.

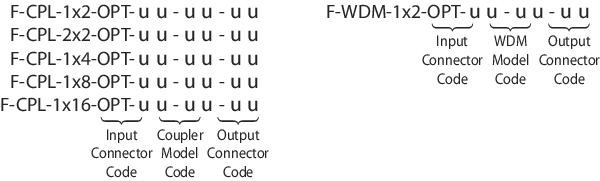

Rugged Housing and Cabling with Pigtail, FC/UPC or FC/APC Connections Available

All the couplers feature a fully ruggedized black plastic housing with 1 m long, 3 mm PVC covered pigtails. All standard models come non-terminated, FC/UPC, or FC/APC.

Wavelength Flattened Fiber Optic Couplers

Wavelength flattened fiber optic couplers extend the optimal wavelength range to a band of ±40 nm around the center wavelength of 1550 nm. The wavelength flattened couplers are ideal solutions for applications that require some spectral range around 1550 nm. These devices come in 1x8 and 1x16 configurations.

Specifications

Technical Specs

Type
1x16 Wavelength Flattened Coupler
Fiber Type
Singlemode
Fiber Connector
Bare Fiber
Operating Wavelength
1550 nm
Maximum Insertion Loss
14 dB
Bandwidth
±40 nm
Maximum Optical Power
2 W

Option Code
74
Package Type
E
Operating Humidity
90–95%
Uniformity
2.4 dB

Type
1x16 Wavelength Flattened Coupler
Fiber Type
Singlemode
Fiber Connector
Bare Fiber
Operating Wavelength
1550 nm
Maximum Insertion Loss
14 dB
Bandwidth
±40 nm
Maximum Optical Power
2 W

Option Code
74
Package Type
E
Operating Humidity
90–95%
Uniformity
2.4 dB

Resources & Downloads

2D Product Drawings

Fiber pkg -E-S(67.2 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price

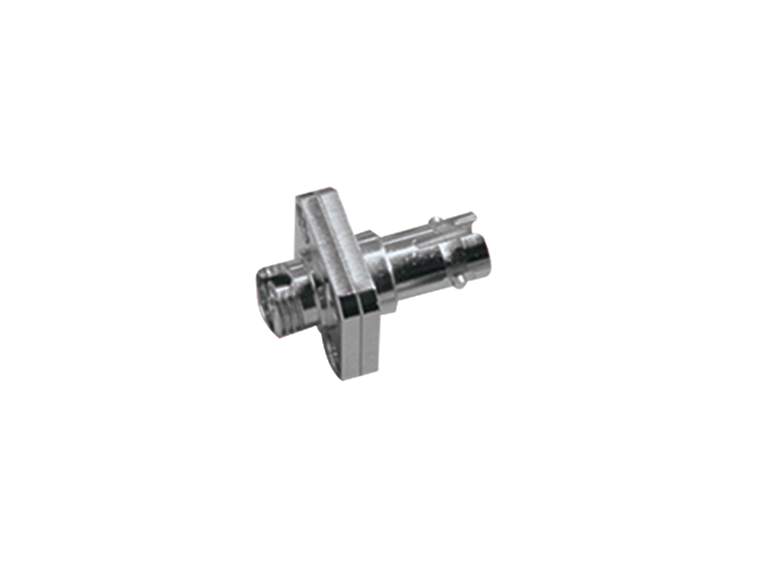

F-MA-ST-FCFiber Optic Mating Adapter, ST Female to FC Female	UNIVERSAL		$45
F-AS-KITBare Fiber Adaptor Kit, Single-mode, FC, SC, and ST Connectors	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$400
F-MA-FC-FCFiber Optic Mating Adapter, FC Female to FC Female	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$11

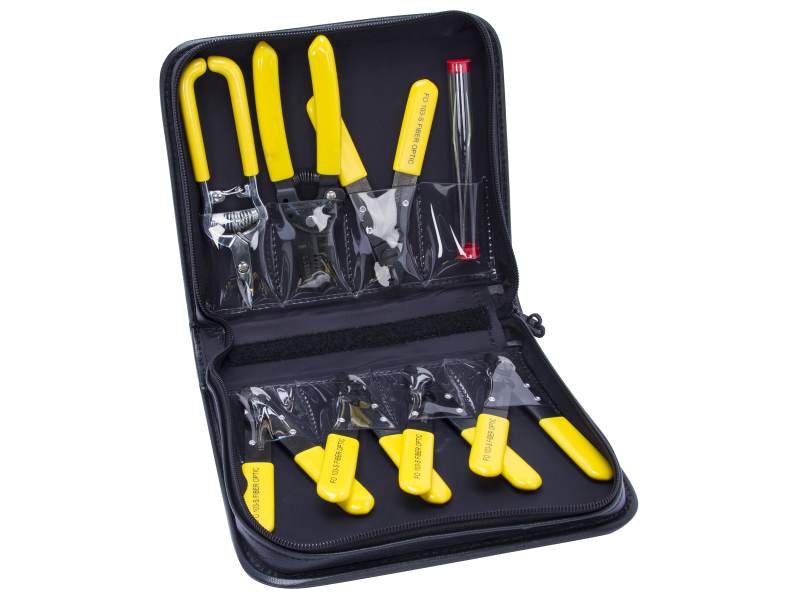

F-FPKFiber Preparation Kit, Variety of Fiber Tools, Leather Storage Case	UNIVERSAL		$765

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		F-CPL-F16150-FCUPCFiber Coupler, Wavelength Flattened, 1 x 16, 1550 nm, FC/UPC.	UNIVERSAL
		F-CPL-F16150-FCAPCFiber Coupler, Wavelength Flattened, 1 x 16, 1550 nm, FC/APC	UNIVERSAL			$1,010

Compatible

Description	Compatibility	Avail.	Price

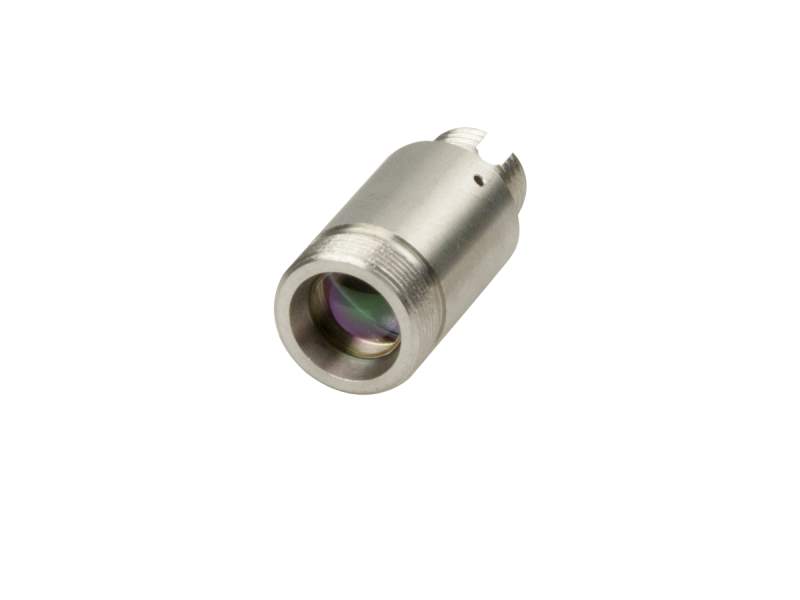

F-C5-F2-1550Fiber-optic Collimator, FC, 1550 nm, 2.0 mm beam	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$255
