Fiber Pigtailed Collimator, 1310 nm, 62.5/125 µm Multimode, FC/PC.
Fiber Pigtailed Collimator, 1310 nm, 62.5/125 µm Multimode, FC/PC.
Model: F-COL-62-13-FCPC
In Stock
Product Series Overview
Fiber Pigtailed CollimatorsThe F-COL-62-13-FCPC Fiber Pigtailed Collimator consists of a multimode 62.5/125 μm FC/PC connectorized fiber pigtail precisely aligned to a Gradient Index (GRIN) lens assembly, which is ideal for collimated light applications. The standard 1310 nm version comes with FC/PC connectorized fiber endings. Other fiber termination options are available as F-COL-62-13-OPT. Please contact Newport for more details. Each fiber is contained in a glass ferrule, angle polished and AR coated to assure low back-reflection into the fiber pigtail. A protective metal housing sleeve and strain relief boot provide excellent environmental protection to the final assembly.
Applications for a single fiber collimator include laser beam delivery systems, as well as coupling the output of a fiber into a detector. Applications of pairs of collimators include beam expansion systems for lab applications, as well as fiber-to-fiber coupling in compact components.
Applications for a single fiber collimator include laser beam delivery systems, as well as coupling the output of a fiber into a detector. Applications of pairs of collimators include beam expansion systems for lab applications, as well as fiber-to-fiber coupling in compact components.
Resources & Downloads
2D Product Drawings
Collimator-S(74.1 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | F-IRC4IR Sensor Card, 700-1600 nm, 2 in. Square Sensor | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
| F-COL-9-13-FCAPCFiber Pigtailed Collimator, 1310 nm, 9/125 µm Singlemode, FC/APC. | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
| F-COL-9-13-FCUPCFiber Pigtailed Collimator, 1310 nm, 9/125 µm Singlemode, FC/UPC. | |||||

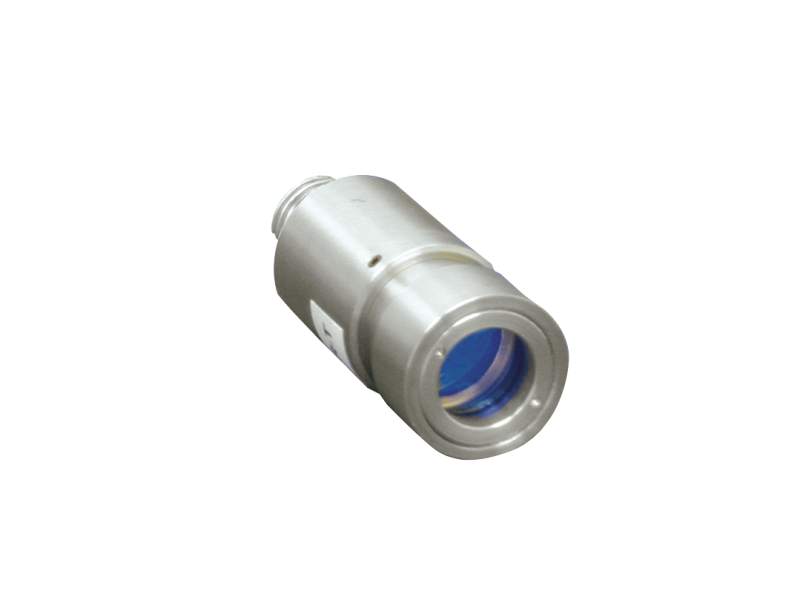

 | F-H10-IR-APCFiber-optic Collimator, Adjustable, 1000 - 1700 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
