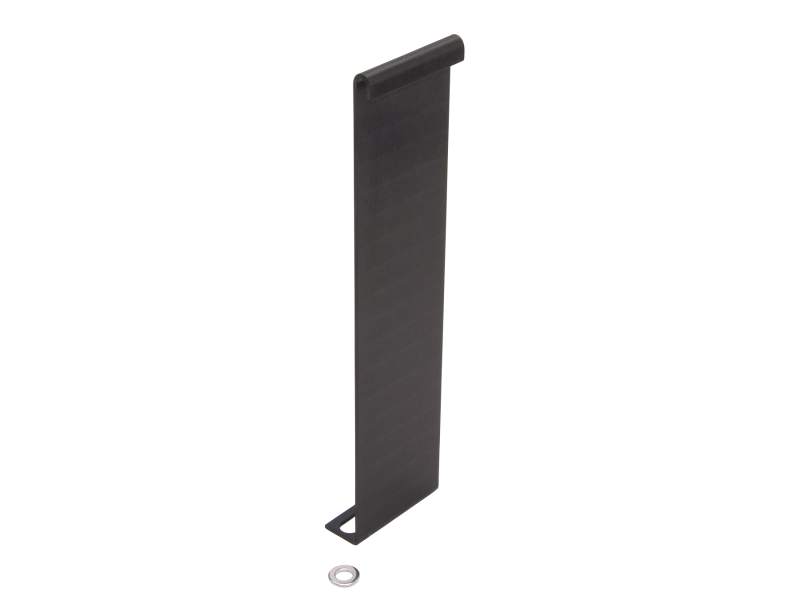

Light Shield System, Connector, Shield Plate, 8 in. Height

The ELS-CS Light Shield is used to build a light-blocking enclosure. It helps keep unintentional light reflections where they should be, and keep stray light from affecting your measurements. Additionally, the Light Shield also shields from clumsy colleagues who might inadvertently bump your perfectly aligned optics path. This item is used to connect two Light Shield Plates and make longer pieces. Create what you need for your setup assured the pieces are made to work together.

Specifications

Technical Specs

Type
Panel
Material
Anodized Aluminum
Height
203.2 mm

Type
Panel
Material
Anodized Aluminum
Height
203.2 mm

Resources & Downloads

3D Product Models

Download CAD Files

Other

ELS-CS_RoHS2021.pdf(684.4 kB, PDF)

2D Product Drawings

ELS-CS.PDF(21.7 kB, PDF)
