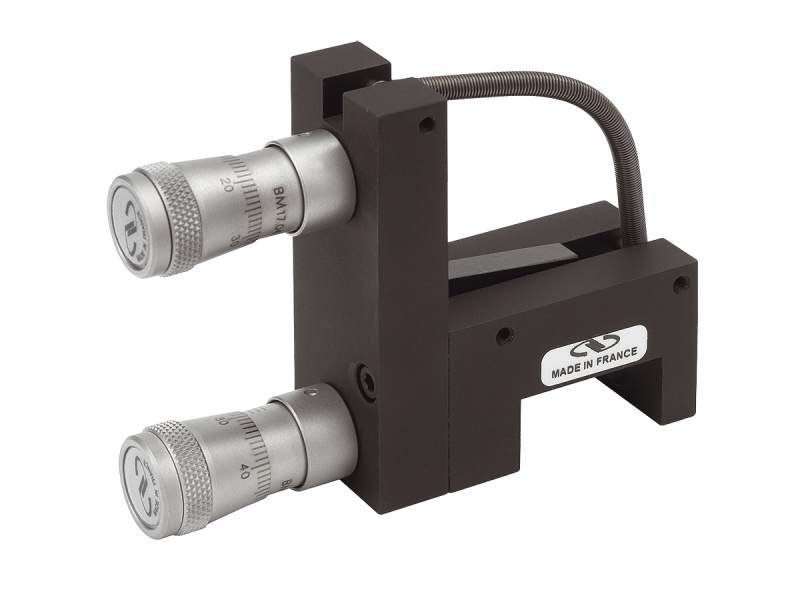

CT26.50BM Cylindrical Laser Mount

Cylindrical Laser Mount, 1.97 in. (50 mm), BM micrometers

Model: CT26.50BM

$1,688

Compare

Add to List

Product Series Overview

XY Cylindrical Device Mounts for X26 Rails

The CT26.50BM Cylindrical Laser Mount is used to accurately position cylindrical lasers up to 1.97 inch (50 mm) in diameter on the X26 rail system. Two mounts are recommended for each tube to enable 0.16 inch (4 mm) of stable XY and tip/tilt adjustment. These mounts are very useful for laboratory applications and remain highly rigid and stable for a long period of time. The laser is held firmly against a reference block by a spring that wraps around the tube. The beam height is 40 mm, common with the X26 rail system. Lateral sensitivity is on the order of the BM actuator sensitivity.

Specifications

Technical Specs

Type

Cylindrical Laser Mount
Diameter

50 mm
Adjustments

XY
Adjustment Type

Micrometer
Travel Range X

4 mm

Travel Range Y

4 mm
Use

X26 Optical Rail
Included Actuators

BM17.04N

Type

Cylindrical Laser Mount
Diameter

50 mm
Adjustments

XY
Adjustment Type

Micrometer
Travel Range X

4 mm

Travel Range Y

4 mm
Use

X26 Optical Rail
Included Actuators

BM17.04N

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

CT26SERI-ESD-S (91.5 kB, PDF)

Other

CT26.50BM RoHS Certificate (279.4 kB, PDF)
