Cylindrical Laser Mount, 1.73 in. (44 mm), BM micrometers
Cylindrical Laser Mount, 1.73 in. (44 mm), BM micrometers
Model: CT26.44BM
In Stock
Product Series Overview

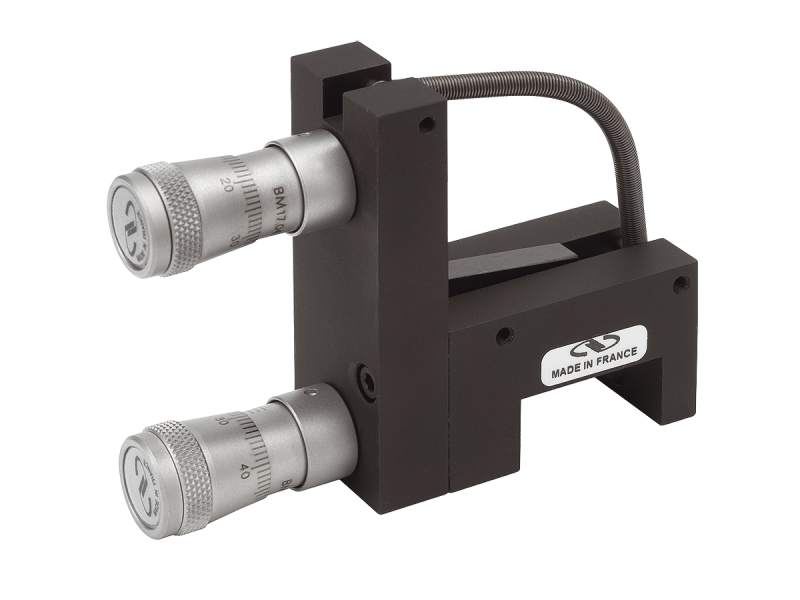

XY Cylindrical Device Mounts for X26 RailsThe CT26.44BM Cylindrical Laser Mount is used to accurately position cylindrical lasers up to 1.73 inch (44 mm) in diameter on the X26 rail system. Two mounts are recommended for each tube to enable 0.16 inch (4 mm) of stable XY and tip/tilt adjustment. These mounts are very useful for laboratory applications and remain highly rigid and stable for a long period of time. The laser is held firmly against a reference block by a spring that wraps around the tube. The beam height is 40 mm, common with the X26 rail system. Lateral sensitivity is on the order of the BM actuator sensitivity.
Specifications
- TypeCylindrical Laser Mount
- Diameter44 mm
- AdjustmentsXY
- Adjustment TypeMicrometer
- Travel Range X4 mm
- Travel Range Y4 mm
- UseX26 Optical Rail
- Included Actuators
Resources & Downloads
2D Product Drawings
CT26SERI-ESD-S(91.5 kB, PDF)
Other
CT26.44BM RoHS Certificate(279.2 kB, PDF)
