Adjustment Screw, 20 TPI, 25.4 mm Travel, Small Knob, Side Lock

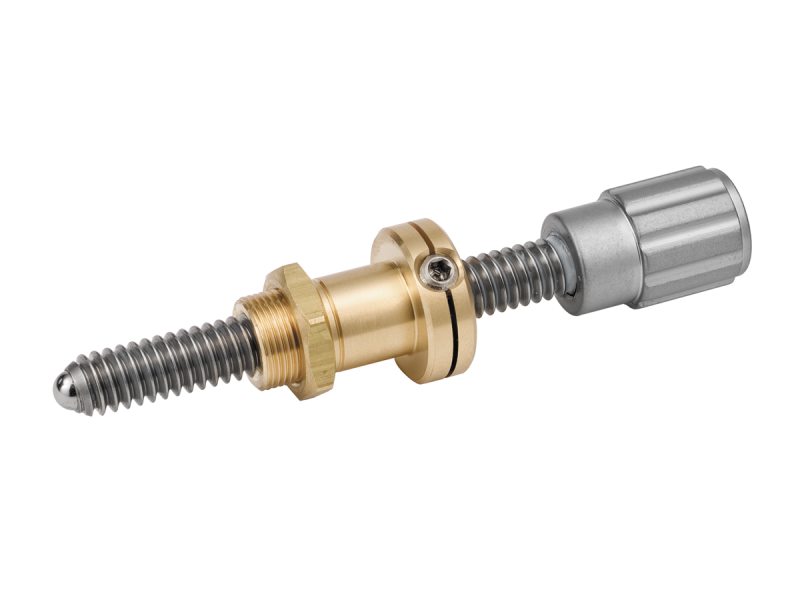

The AJS20-1 Adjustment Screw offers 1 inch (25.4 mm) precision travel obtained with included small adjustment knob and has precision rolled threads for exceptionally smooth adjustment. They are ideal for use with Newport optical mounts, stages and most micrometer-compatible components, and are a cost-effective alternative to micrometers where position readout is not required. High-precision 20 TPI, rolled stainless steel threads are mated with the collet and proprietary lubricant for stictionless movement. The standard 0.375 in. (9.5 mm) diameter collet is threaded with a nut for mounting to optical mounts and stages. A lock screw on the side secures the adjustment screw from turning.

Patented Non-influencing Locks

Our patented thread-pitch lock secures the adjustment screw from turning by simply tightening a setscrew. Engaging or disengaging the thread-pitch lock, now standard, won't influence the screw position. Versions with knobs have the lock screw on the side, while hex versions have the lock screw conveniently located on the end next to the drive screw. A single wrench is used for both adjustment and locking. Non-locking, 12.7 mm travel versions are also available for use in optical mounts.

Sized to Fit Mounts and Stages

Newport's AJS adjustment screws have 9.5 mm industry standard mounting shanks allowing them to fit most optical mounts and linear stages where micrometer heads can be used.

Optional Adjustment Knobs

AJS adjustment screws are offered with a knob or hex adjustment. and stainless steel knobs are available as an accessory for use with the hex adjustment versions. The knobs feature an integral 5/64-in. (2-mm) hex hey for increased adjustment sensitivity.

Specifications

Technical Specs

Travel Range
25.4 mm
Adjustment Screw Thread
1/4-20
Drive Type
Knob
Axial Load Capacity
90 N
Lock
Side Lock

Tip Style
Ball
Sensitivity
3.5 µm

Travel Range
25.4 mm
Adjustment Screw Thread
1/4-20
Drive Type
Knob
Axial Load Capacity
90 N
Lock
Side Lock

Tip Style
Ball
Sensitivity
3.5 µm

Resources & Downloads

2D Product Drawings

AJS100_20_127-S(198.5 kB, PDF)

Other

AJS20-1 RoHS Certificate(288.4 kB, PDF)
REACH Supplier Statement - AJS Screws(211.4 kB, PDF)

Related Products

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		M-UMR8.25Linear Stage, Double-Row Ball Bearing, 25 mm Travel, M4 and M6	METRIC		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$456

Similar

Description	Compatibility	Avail.	Price
AJS100-1Adjustment Screw, 100 TPI, 25.4 mm Travel, Small Knob, Side Lock	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
AJS8-100-1Miniature Adjustment Screw, 100 TPI, 25.4 mm, Small Knob, Side Lock	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37
AJS20-0.5Adjustment Screw, 20 TPI, 12.7 mm Travel, Small Knob, Side Lock	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$57
AJS100-2Adjustment Screw, 100 TPI, 50.8 mm Travel, Small Knob, Side Lock	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$44
SM-25Vernier Micrometer, 25 mm Travel, 23 lb. Load Capacity, 50.8 TPI	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$166
AJS100-0.5KAdjustment Screw, 100 TPI, 12.7 mm Travel, Large Knob, Side Lock	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
TRA25CCMotorized Actuator, Miniature, 25 mm Travel, DC Servo Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,156
DM17-25Differential Micrometer Head, 25.1 mm Coarse, 0.1 mm Fine, 11 lb. Load	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$797
DM-25LLockable Differential Micrometer, 25 mm Coarse, 0.2 mm Fine,11 lb. Load	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$779

Compatible

Description	Compatibility	Avail.	Price
426Manual Linear Stage, Crossed-Roller Bearings, 1.0 in. Travel, 1/4-20	IMPERIAL	4 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$685
423Linear Stage, High-Performance, Low-Profile, 1.0 in. Travel, 1/4-20	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$355
462-X-MManual Linear Stage, ULTRAlign, 25 mm, Crossed-Roller, 8-32 & 1/4-20	IMPERIAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$924
460P-XX Linear Stage, Peg-Joining, 1.0 in. Travel, 8-32 and 1/4-20 Threads	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$437
460P-XYZXYZ Linear Stage, Peg-Joining, 1.0 in. Travel, 8-32 and 1/4-20 Threads	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,330

Accessories

Description	Compatibility	Avail.	Price
KD.37Small Adjustment Knob, 2.0 mm Hex Key, Silver	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$9.50
BDK-1Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$40
KD.75Large Adjustment Knob, 2.0 mm Hex Key, Silver	UNIVERSAL	In Stock	$10.90

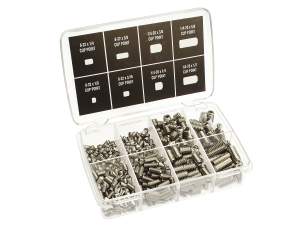

SK-SSSet Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 650	UNIVERSAL	3 Weeks	$118
