Motor Controller, Piezo, 8-Axis, Agilis™, OEM, USB/RS232/RS485

Model: AG-UC8PC

$986

In Stock

Compare

Add to List

Product Series Overview

Agilis™ Piezo Motion Controllers

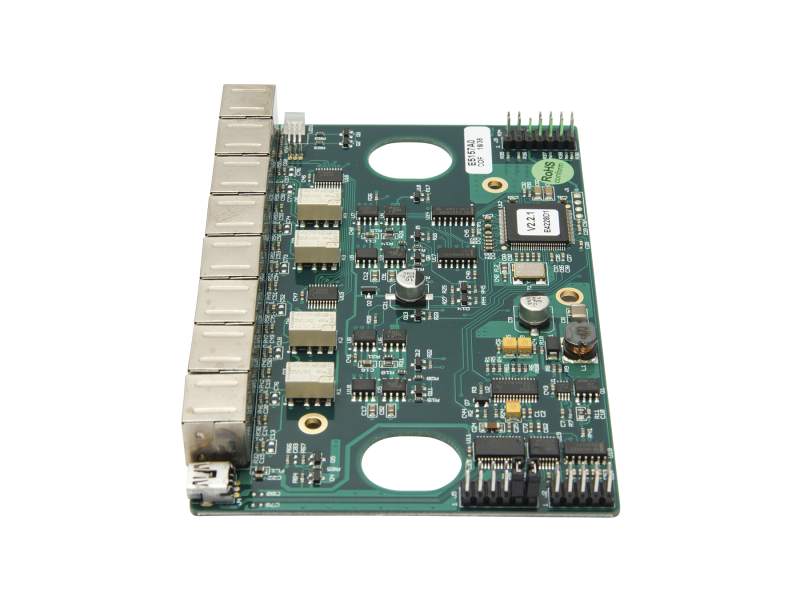

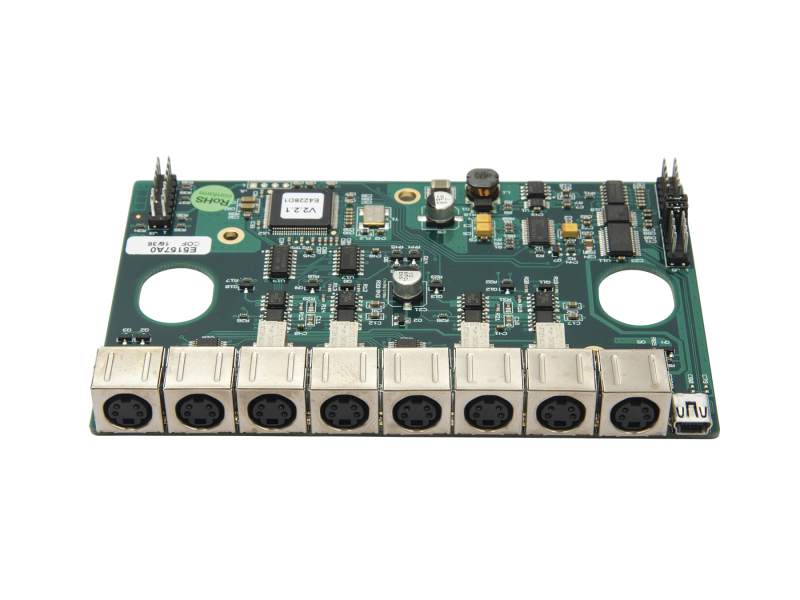

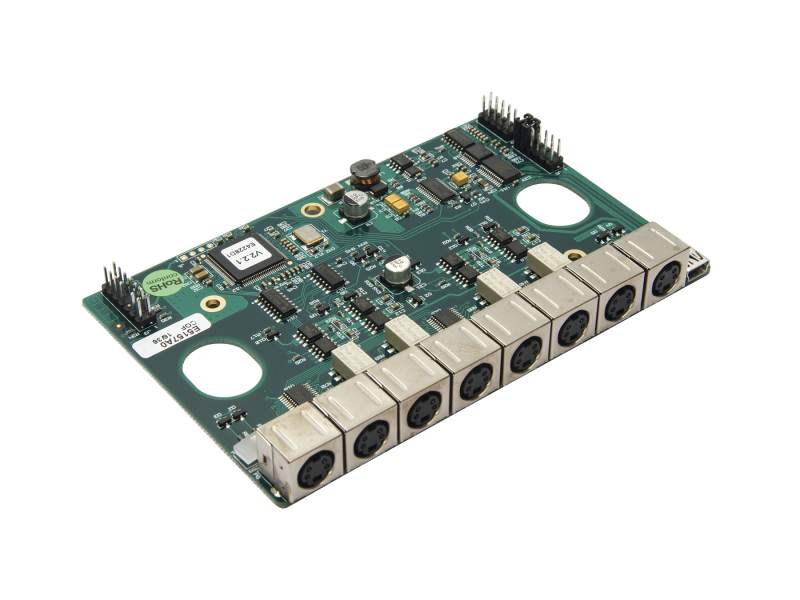

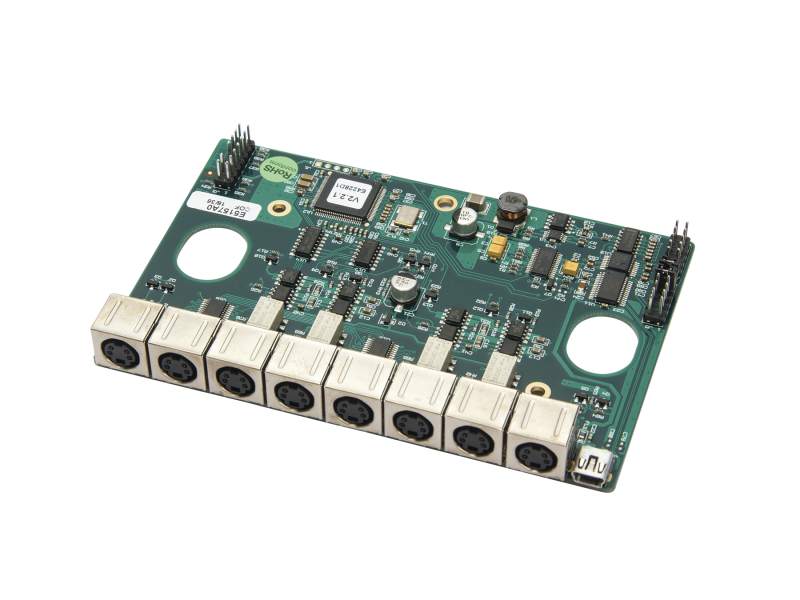

The AG-UC8PC Agilis™ Controller provides USB computer control of up to eight Agilis axes and is primarily intended for industrial customers and system integrators. It provides the same features and functions as the AG-UC8 controller, but comes as a PC-card with no enclosure and no cables.
In addition to the mini-USB connector for USB communication (same as AG-UC8), the AG-UC8PC provides an additional HE10 connector on the board for RS232 and RS485 communication. The active communication channel is set by jumpers. An LED indicates the current controller status.

Compatible with Agilis Nanopositioners

Agilis motion controllers are used to drive Agilis nanopositioners. An Agilis optical mount is driven by 2 piezo motors whereas, an Agilis linear or rotation stage are driven by one piezo motor only.

Specifications

Technical Specs

Type

Agilis OEM Controller
Number of Axis

8
Computer Interfaces

USB, RS232, RS485

Power Requirements

USB or power supply

Type

Agilis OEM Controller
Number of Axis

8
Computer Interfaces

USB, RS232, RS485

Power Requirements

USB or power supply

Resources & Downloads

Drawings And Cad

AG-UC8PC-S (164 kB, PDF)

Other

MKS EU ROHS3 - AG-UC8PC.pdf (887.5 kB, PDF)

Manuals

Agilis Piezo Motor Driven Components User Manual (2.6 MB, PDF)
