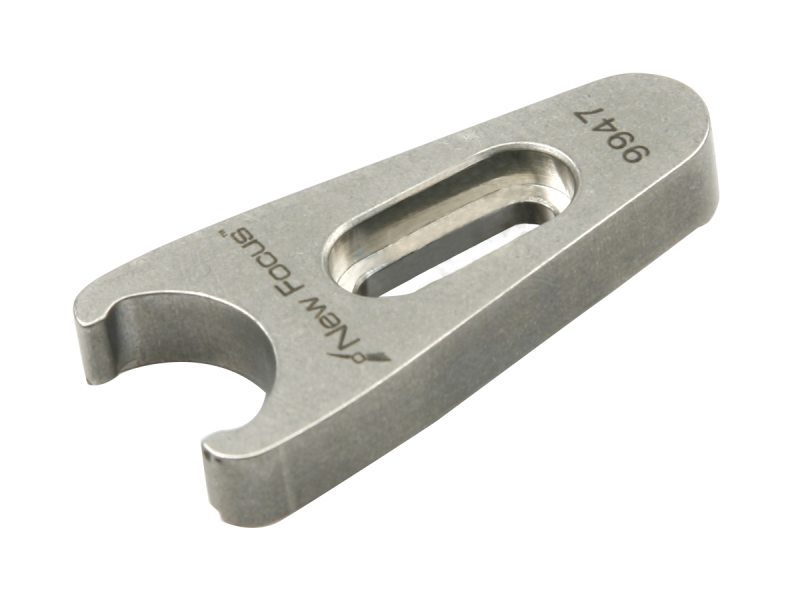

Clamping Fork, 0.7 in. Diameter Pedestal, 1/4-20 (M6) Slot
Clamping Fork, 0.7 in. Diameter Pedestal, 1/4-20 (M6) Slot
Model: 9947-X
Quantity Discount
Save 10% when ordering 10 or more!
Discount applied in cart.
Save 10% when ordering 10 or more!
Discount applied in cart.
Product Series Overview
0.7 in. Pedestal Base Clamping ForksThe 9947-X Small Pedestal Base Clamping Fork allows you to mount 994x series Small Optical Pedestals anywhere on an optical table. The thick stainless steel construction gives a stiff connection to the optical table, providing a stable yet compact support. This clamping fork does not have a captive screw.
Specifications
- TypePedestal Clamping Fork
- Thread Type1/4-20 (M6) Slot
- MaterialStainless Steel
- Inside Diameter18.0 mm
Resources & Downloads
2D Product Drawings
9947-X-352(209.2 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

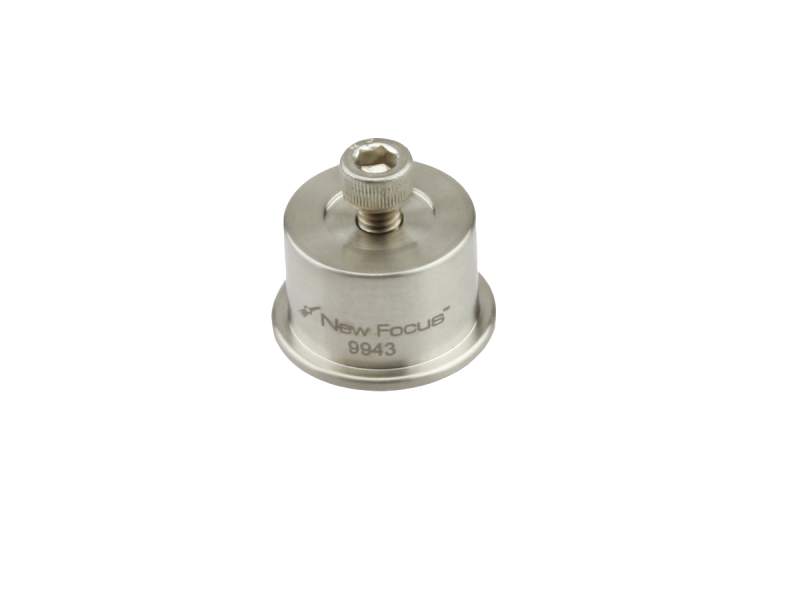

 | 9943Optical Pedestal, 0.5 in. Height, 0.7 in. Diameter, 8-32 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

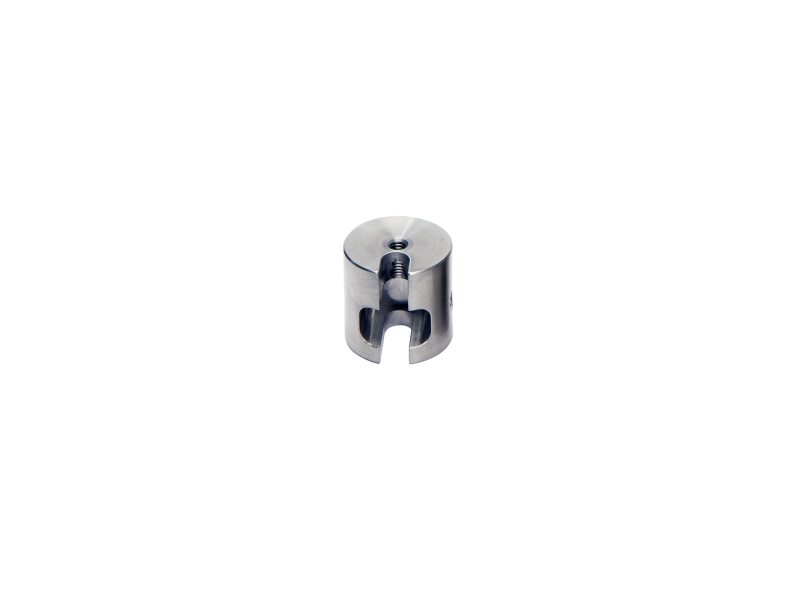

 | PX-1Optical Post, Slotted Base, 1.0 in. Height, 1.0 in. Diameter, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 360-90Angle Bracket, 90°, 1/4-20 (M6) Slots, 1 in. Spacing | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 433Linear Stage, High-Performance, Low-Profile, 1.81 in. Travel, 1/4-20 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

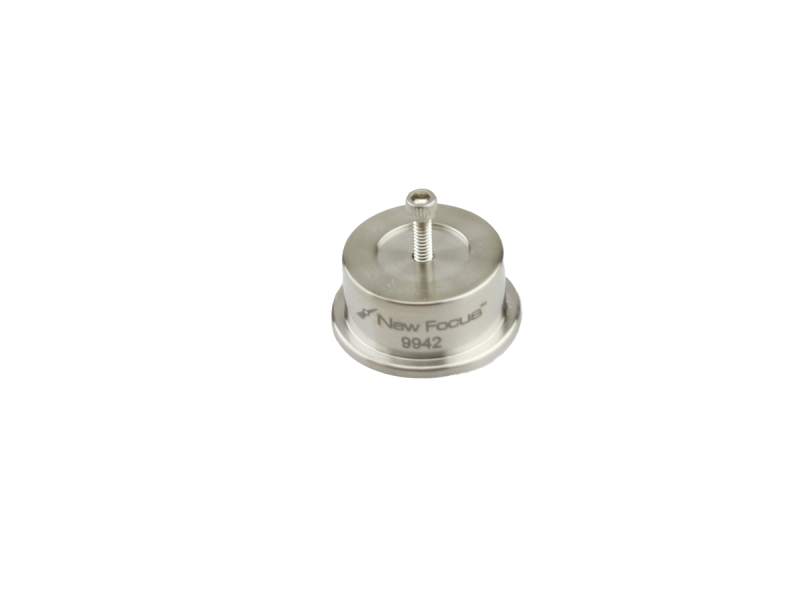

 | 9942Optical Pedestal, 3/8 in. Height, 0.7 in. Diameter, 2-56 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
