XZ Linear Stage, Triple Divide, 1.1 in. Travel, 8-32 and 1/4-20 Threads

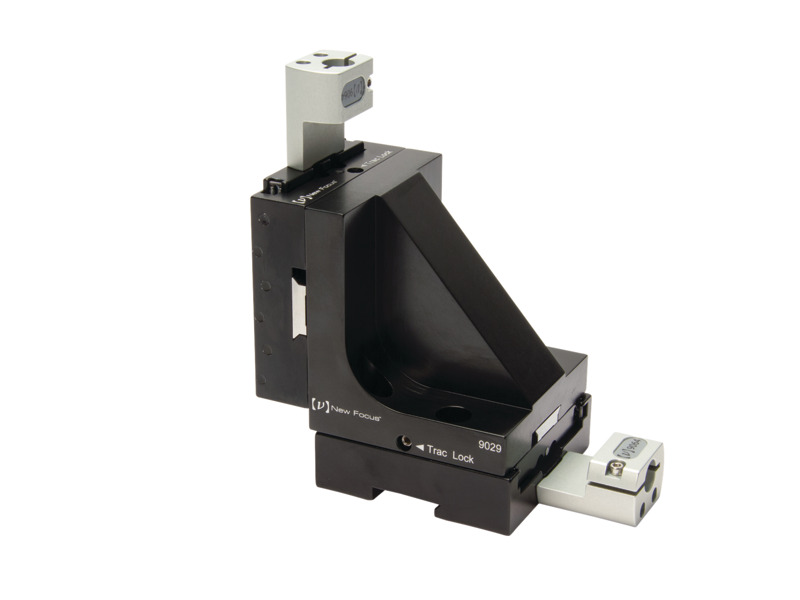

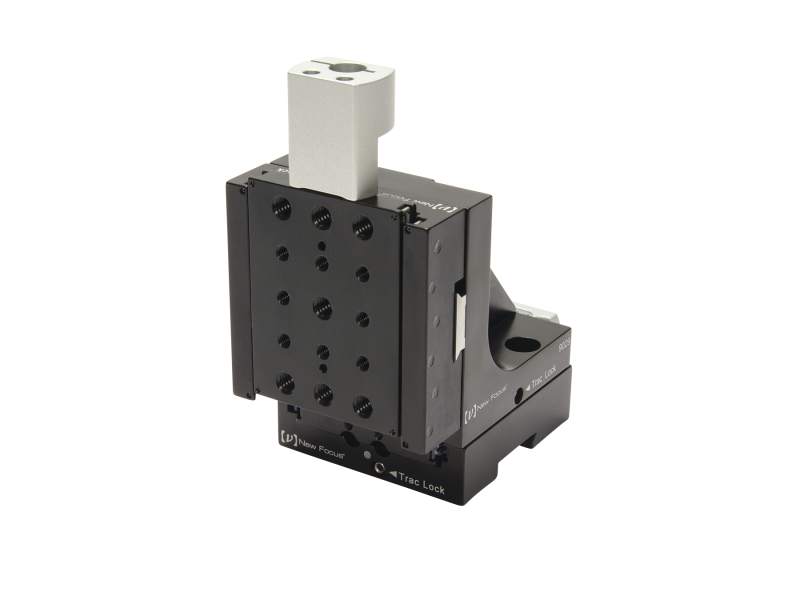

The 9064-XZ Triple Divide XZ Axis Translation Stage is built using two single-axis 1.1 inch travel stages and our 90° adapter. The micrometer clamp on the vertical stage is positioned so the weight is held by the actuator, not on the spring, creating a greater load capacity for your applications. An extra pair of holes on the platform allows you to easily convert this vertical stage to a horizontal stage when you want to reconfigure your setup. 8-32 and 1/4-20 threaded mounting holes. NOTE: Actuators are not included with these stages. We recommend using our 9302 Adjustment Screws or our SM-25 micrometers. For even more precise control, try our 8302 Picomotor™ actuator.
Specifications
- Axes of TravelX, Z
- Maximum Stage Travel28 mm
- 89 N
- Straight Line Accuracy<2.5 µm
- MaterialAluminum
- BearingsSingle-Row Ball Bearings
- Thread Type8-32 and 1/4-20
- Recommended Adjustment Screw
- Recommended Vernier Micrometer
- Recommended Digital Micrometer
- Recommended Lockable Micrometer
- Recommended Piezo Actuator
Resources & Downloads
2D Product Drawings
9064xzb-Drawing(127.7 kB, PDF)
