High-Energy Pinhole, Molybdenum, 5 µm, 900 Series

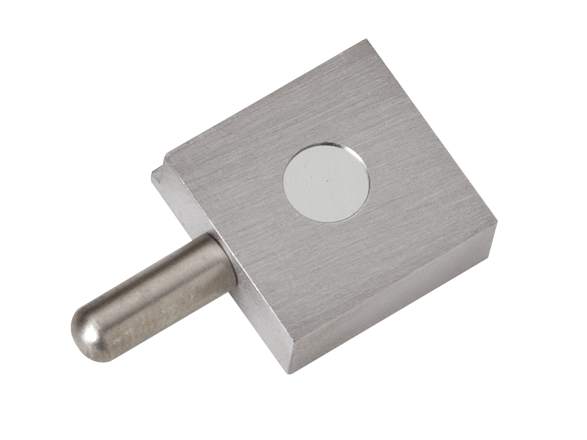

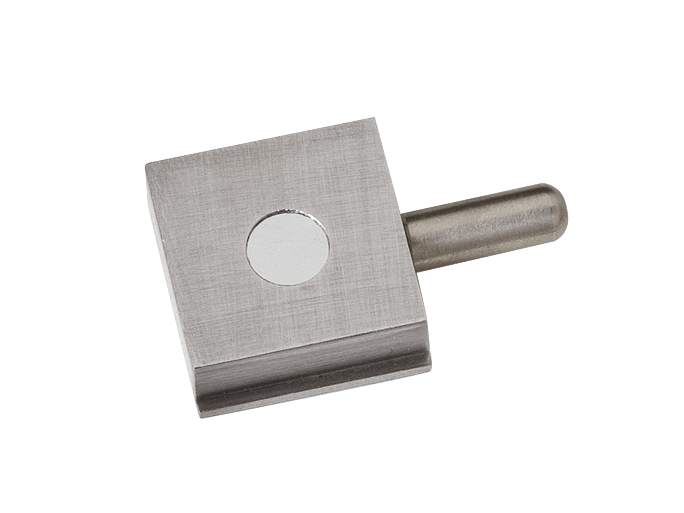

900 Series High Energy Mounted Molybdenum Pinholes

The 900PH-5 High Energy Pinhole Aperture is fabricated from ultra-thin molybdenum, a refractory alloy with high heat conductivity and melting point. This material exhibits almost no warping due to localized heating by the laser. A smooth 5 ± 0.75 μm diameter hole with extremely low ellipticity is produced using laser drilling techniques. These pinholes have a laser damage threshold of 75 MW/cm2 CW and are suitable for pulsed laser use up to 700 mJ/cm2. This version is mounted for use with our Model 900 spatial filter.

Specifications

Technical Specs

Type
High Energy Pinhole
Aperture Diameter
5 µm
Aperture Diameter Tolerance
±0.75 µm
Material
Molybdenum
Diameter
9.525 mm
Diameter Tolerance
±0.125 mm

Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
900 Series Spatial Filters

Type
High Energy Pinhole
Aperture Diameter
5 µm
Aperture Diameter Tolerance
±0.75 µm
Material
Molybdenum
Diameter
9.525 mm
Diameter Tolerance
±0.125 mm

Damage Threshold
75 MW/cm² CW, 700 mJ/cm² with 10 nsec pulses, typical
Thickness
15.24 µm
Use
900 Series Spatial Filters

Resources & Downloads

Other

900PH-5 RoHS Certificate(264.7 kB, PDF)
900PH-5_ROHS2-2021.pdf(279.8 kB, PDF)

2D Product Drawings

900P-MNT DWG.pdf(207 kB, PDF)

Related Products

Frequently Purchased Together

Description	Compatibility	Avail.	Price
900PH-10High-Energy Pinhole, Molybdenum, 10 µm, 900 Series	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$192

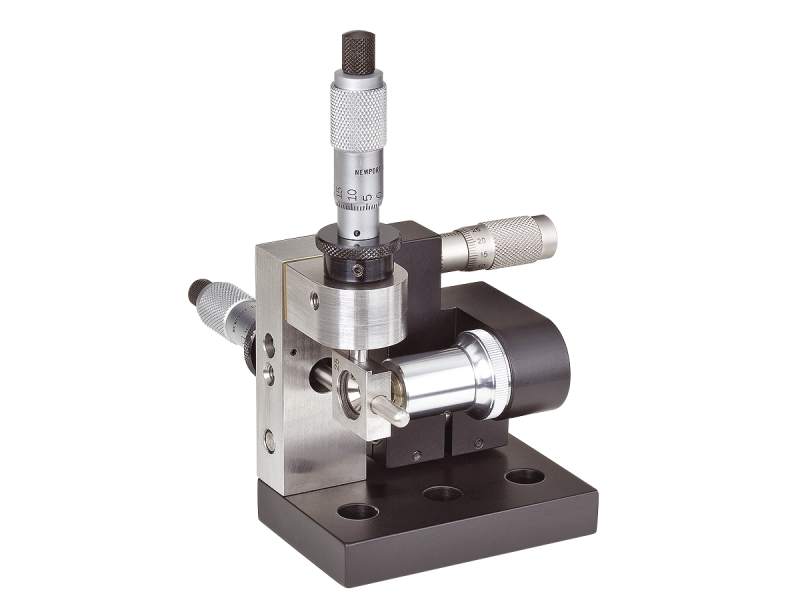

M-900Spatial Filter, Three-Axis, Metric	METRIC	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,330
900PH-15High-Energy Pinhole, Molybdenum, 15 µm, 900 Series	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$166

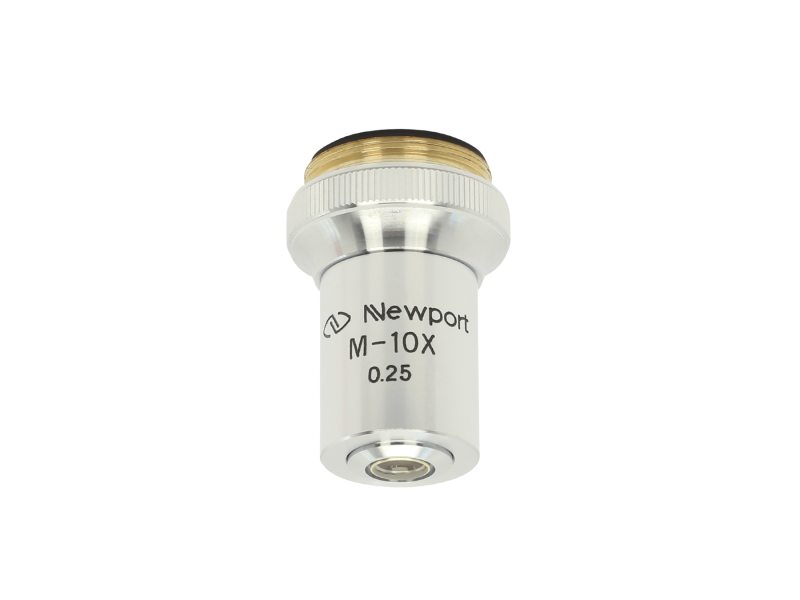

M-20XMicroscope Objective Lens, 20x, 0.40 NA, 9.0 mm Focal Length	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$219
900PH-25High-Energy Pinhole, Molybdenum, 25 µm, 900 Series	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$163
M-10XMicroscope Objective Lens, 10x, 0.25 NA, 16.5 mm Focal Length	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$164
M-5XMicroscope Objective Lens, 5x, 0.10 NA, 25.4 mm Focal Length	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$135

Similar

Description	Compatibility	Avail.	Price

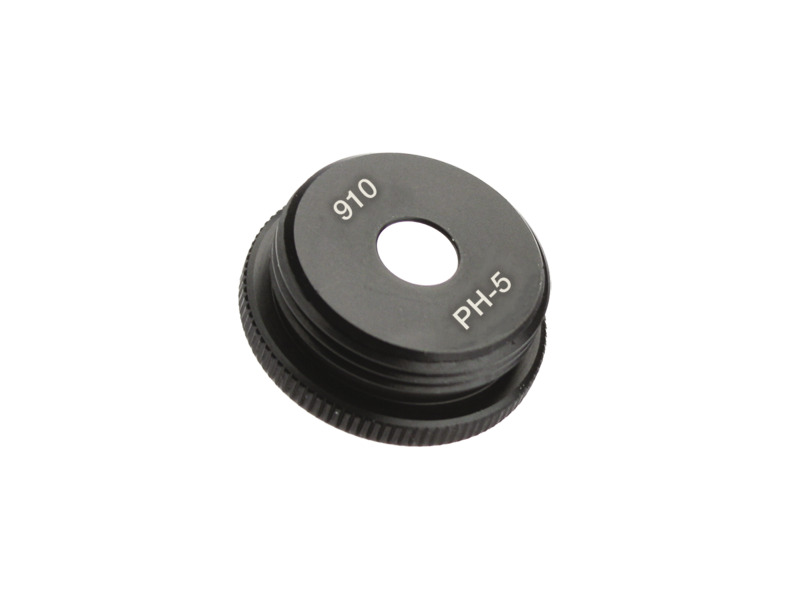

910PH-5High-Energy Pinhole, Molybdenum, 5 µm, 0.875-20 Thread	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$177
900PH-SETHigh-Energy Pinhole Set, Molybdenum, 5, 10, 15, 25, 50 µm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$889

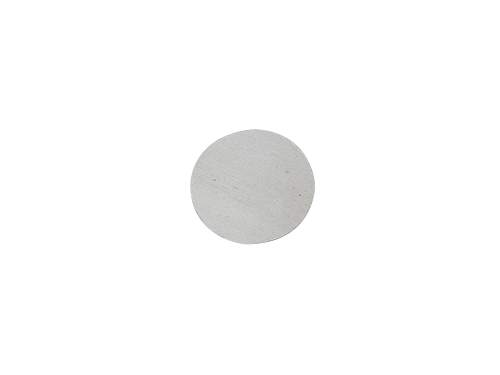

PH-5High-Energy Pinhole, Molybdenum, 5 µm, Unmounted	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$116

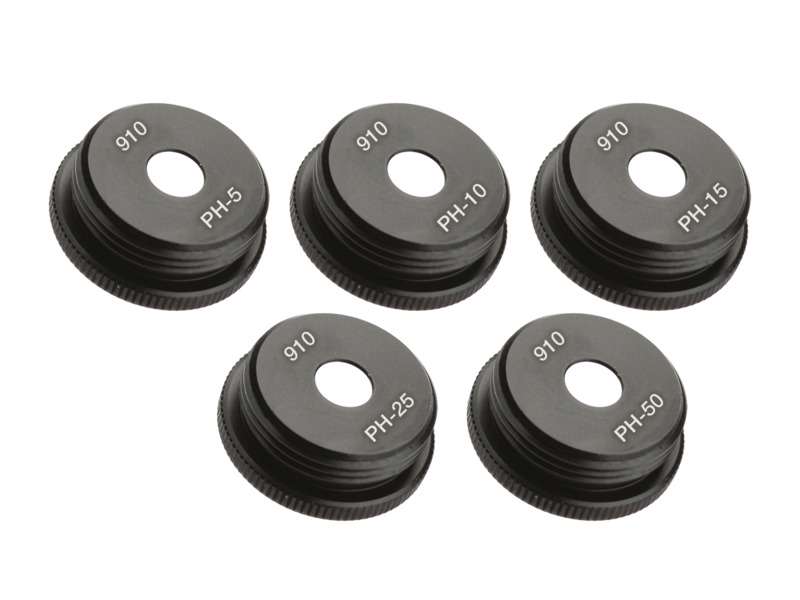

910PH-SETHigh-Energy Pinhole Set, Molybdenum, 0.875-20 Thread	UNIVERSAL		$734
