Picomotor Controller Kit, Inc. (2) 8821 Picomotor Mounts
Picomotor Controller Kit, Inc. (2) 8821 Picomotor Mounts
Model: 8742-4-8821-RR
Product Series Overview

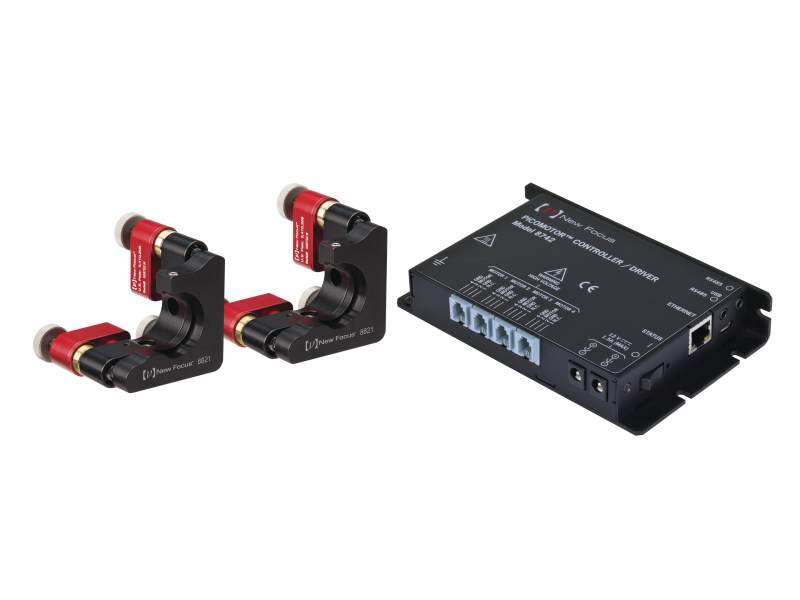

Picomotor Mount with Controller KitsWe've bundled our Picomotor controller/driver and our ClearEdge Picomotor mirror mounts together to provide a simple kit to get you started quickly. Just mount the ClearEdge, plug it into the driver and you're ready to go. The kit includes the following components: 1x Model 8742 module and software, 1x Model 8745-PS power supply, 1x Model 8745_USB-CBL USB cable and 2x Model 8821 Clear Edge Picomotor mounts.
Includes Model 8821 Mirror Mounts
The 8821 offers true set and forget stability, remote adjustment down to sub-µrad, all in a very compact size that fits very well into tight spaces, including laser cavities.
Complete Control Solution
Each kit includes a Model 8742 Picomotor controller and driver, a Model 8745-PS power supply, a USB cable and two 8821 clear edge mirror mounts for a complete control solution.
Resources & Downloads
Literature
8742_Datasheet(866 kB, PDF)
2D Product Drawings
8821_RC_revA(151.4 kB, PDF)
Software
PicomotorApp 2.1.5(52.4 MB, ZIP) 8742 TIVA MCU Firmware v3.04 for SN > 24621(151.4 kB, ZIP) 8742 8743 Python Samples(405.5 kB, ZIP)
