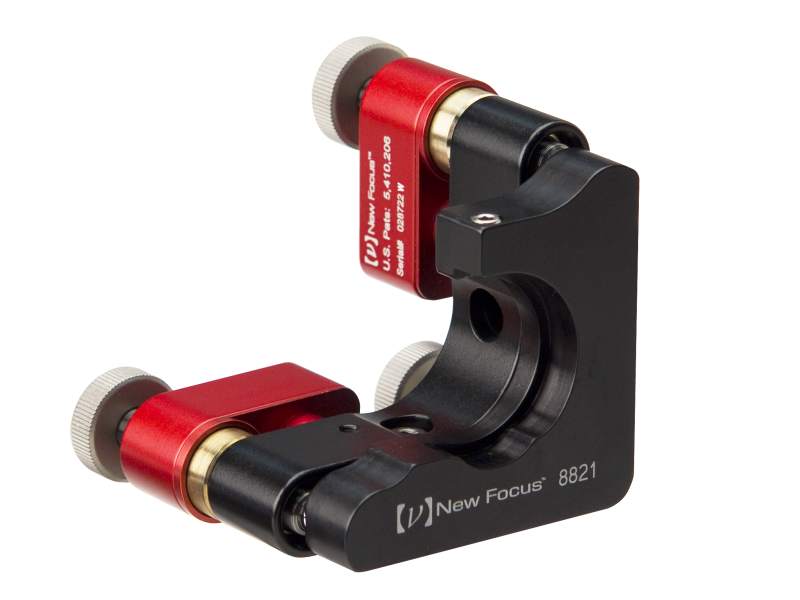

Picomotor Piezo Clear Edge Center Mount, 1.0 in. Diameter, 2-Axis

Model: 8821

Picomotor Piezo Clear Edge Center Mount, 1.0 in. Diameter, 2-Axis

Model: 8821

Technical Specs

  • Type
    Clear Edge
  • Optic Diameter
    25.4 mm
  • Motorized Axes
    2
  • Angular Range
    ±5 °
  • Thread Type
    8-32 (M4) CLR
  • Cable Length
    2.1 m
  • Connector Type
    4-Pin
  • Optical Axis Height
    25.4 mm
  • Angular Resolution
    0.7 µrad
  • Mechanism
    Picomotor Actuator

Resources & Downloads

Literature
2D / 3D CAD Software
Drawings And Cad

Picomotor Piezo Clear Edge Center Mount, 1.0 in. Diameter, 2-Axis

Model: 8821

$1,066.00
In Stock
