Picomotor Controller Kit, Inc. (2) 8821-L Picomotor Mounts
Picomotor Controller Kit, Inc. (2) 8821-L Picomotor Mounts
Model: 8742-4-8821-LL
Product Series Overview

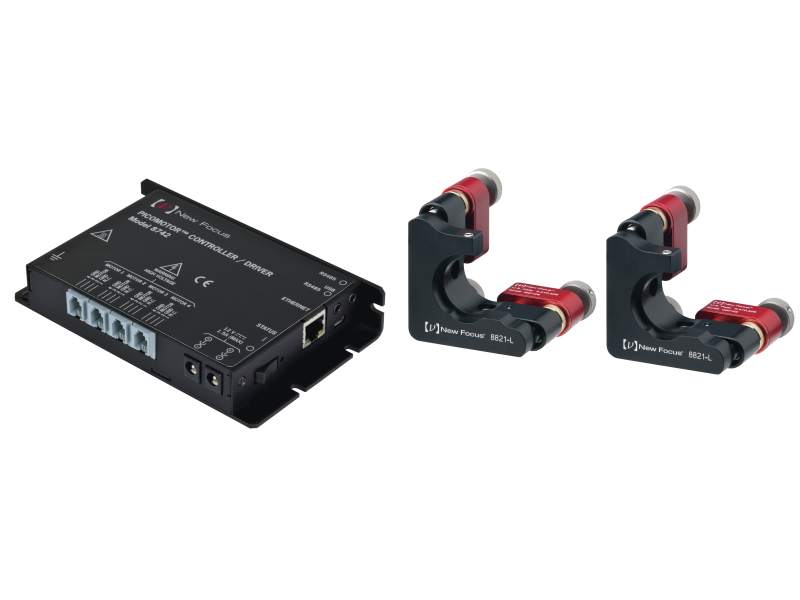

Picomotor Mount with Controller KitsWe've bundled our Picomotor controller/driver and our ClearEdge Picomotor mirror mounts together to provide a simple kit to get you started quickly. Just mount the ClearEdge, plug it into the driver and you're ready to go. The kit includes the following components: 1x Model 8742 module and software, 1x Model 8745-PS power supply, 1x Model 8745_USB-CBL USB cable and 2x Model 8821-L ClearEdge Picomotor mounts.
Includes Model 8821 Mirror Mounts
The 8821 offers true set and forget stability, remote adjustment down to sub-µrad, all in a very compact size that fits very well into tight spaces, including laser cavities.
Complete Control Solution
Each kit includes a Model 8742 Picomotor controller and driver, a Model 8745-PS power supply, a USB cable and two 8821 clear edge mirror mounts for a complete control solution.
Resources & Downloads
Literature
8742_Datasheet(866 kB, PDF)
2D Product Drawings
8821-L-RC_revA(147.5 kB, PDF)
Software
8742 TIVA MCU Firmware v3.04 for SN > 24621(151.4 kB, ZIP) PicomotorApp 2.1.5(52.4 MB, ZIP) 8742 8743 Python Samples(405.5 kB, ZIP)
Manuals
8742 Series Quick Start Guide.pdf(541.9 kB, PDF) 8742 User Manual(2.6 MB, PDF)
Technical Notes
Open vs Closed Loop Picomotors(1.6 MB, PDF)
