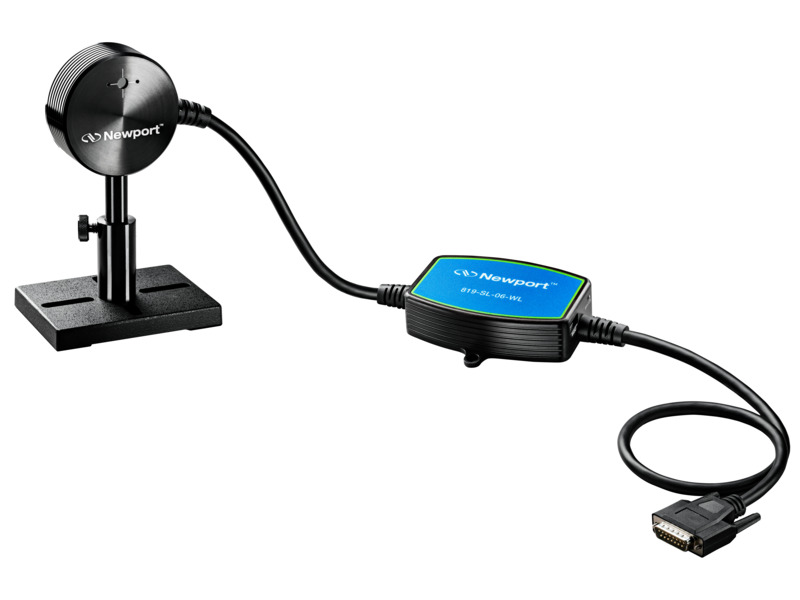

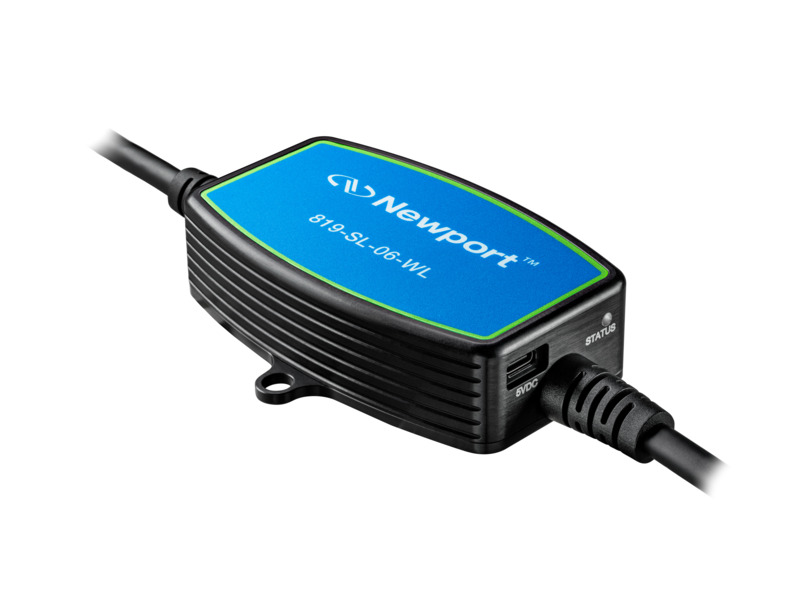

Optical Power and Wavelength Measurement Sensor, 1 W, 400 to 1100 nm, Silicon

Model: 819-SL-06-WL

Optical Power and Wavelength Measurement Sensor, 1 W, 400 to 1100 nm, Silicon

Optical Power and Wavelength Measurement Sensor, 1 W, 400 to 1100 nm, Silicon

Model: 819-SL-06-WL

Technical Specs

  • Type
    Power & Wavelength Measurement Sensor
  • Detector Material
    Silicon
  • Spectral Range
    400 to 1100 nm
  • Power Range
    -40 dBm to + 30 dBm
    100 nW to 1 W
  • Wavelength Accuracy
    ± 0.5 nm Calibration Uncertainty

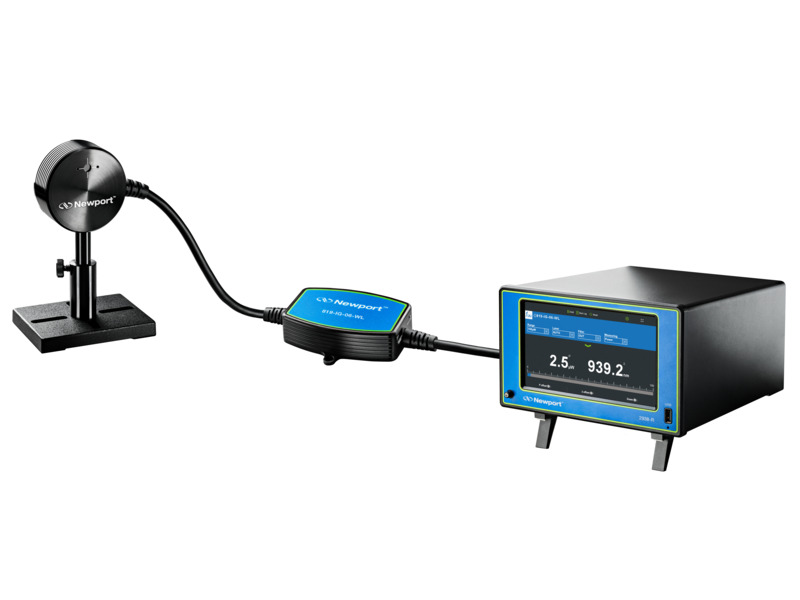

  • Use
    1938-R or 2838-R Meter
  • Input Port Size
    6 mm
  • Minimum Optical Power for Wavelength Measurement
    -25 dBm; 3 µW
  • Cable Length
    2 meters
  • Operating Temperature Range
    +15°C to +30°C
  • Storage Temperature Range
    -10°C to +50°C
