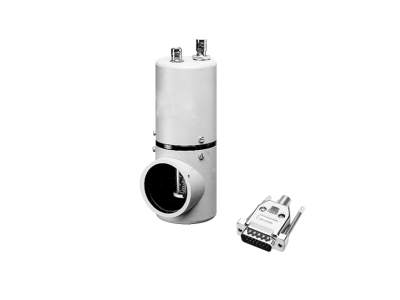

Photomultiplier Tube Housing, 1.5 Inch Flange or Rod Mount, DC or Pulsed Signals

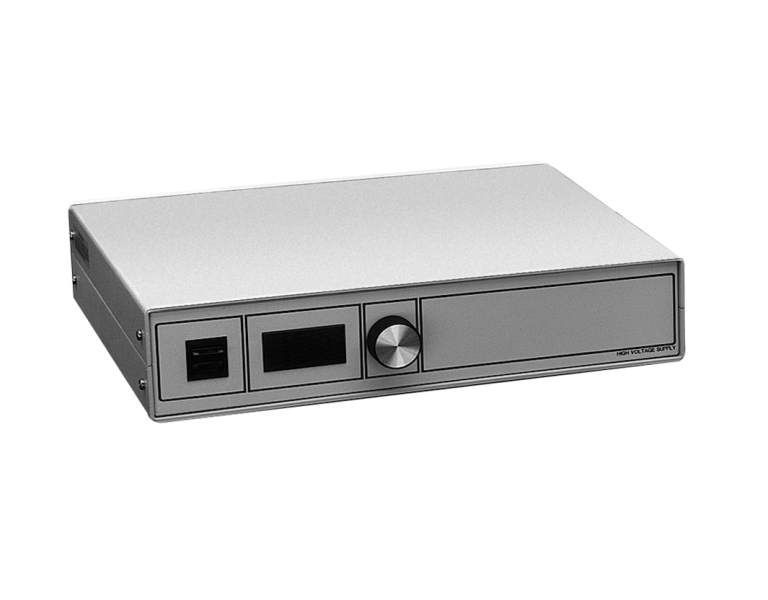

The 70693 PMT Housing includes: High voltage power supply cable model 70097, Low-noise BNC signal cable model 70018, Module to interface with Newport power meters. The interface module allows the photomultiplier tube signal to be read by the following Newport power meters: 1918-R, 1936-R, and 2936-R. Simply omit the interface module, and the 70693 may also be used with Oriel's Lock-In Digital Amplifier Kit, model LIDA-SRS-KIT. Photomultiplier Tubes are available in various models. The Photomultiplier Tube and model 70706 PMT Power Supply are ordered separately.

Resources & Downloads

2D Product Drawings

BPT-pg6-65b(510.3 kB, PDF)

Related Products

Accessories

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

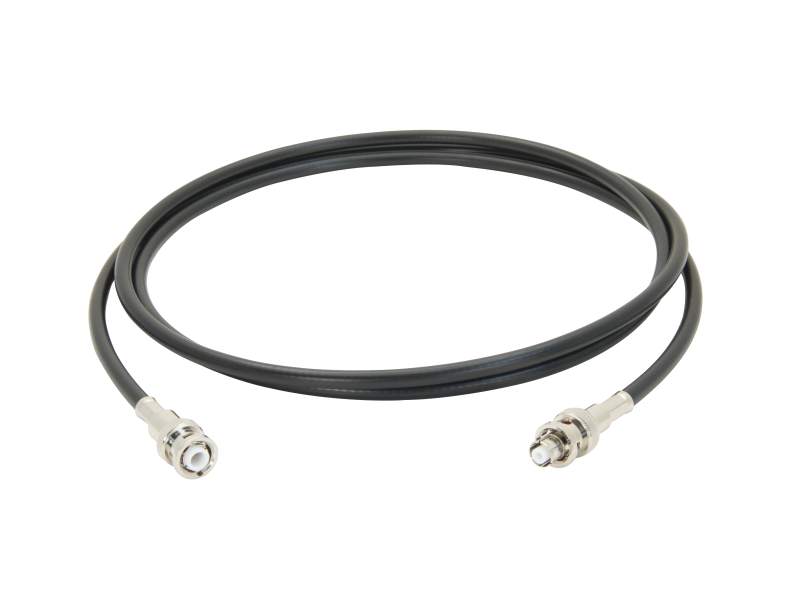

		70097Cable, MHV Male to SHV Plug, 6 Foot (1.8 Meter) Length	UNIVERSAL			$240
		70018Cable, BNC Low Noise, 6 Foot (1.8 Meter) Length	UNIVERSAL			$140

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		70683Photomultiplier Tube Housing, 1.5-Inch Flange or Rod Mount, DC or Pulsed	UNIVERSAL			$1,975

Compatible

Description	Compatibility	Price
77343Photomultiplier Tube, 400-1200 nm Range, Borosilicate Glass Window	UNIVERSAL	$2,080
77360Photomultiplier Tube, 185-900 nm Range, UV Glass Window	UNIVERSAL	$1,560
77341Photomultiplier Tube, 185-900 nm Range, UV Glass Window	UNIVERSAL	$1,870
77348Photomultiplier Tube, 160-900 nm Range, Quartz Window	UNIVERSAL	$2,185
