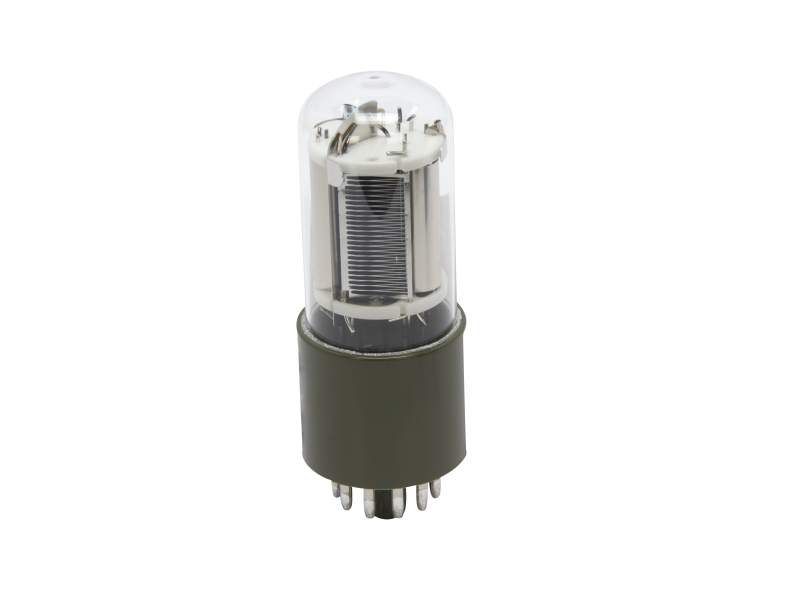

Photomultiplier Tube, 185-870 nm Range

Technical Specs

  • Active Area
    8 x 24 mm
  • Wavelength Range
    185-870 nm
  • NEP
    2.8 x 10-16
  • Peak Responsivity
    40 mA/W
  • Rise Time
    2.2 ns
  • Transit Time
    22 ns
  • Current
    100 µA
  • Current Amplification
    5.0 x 106
  • Dark Current
    2 nA
  • Bias Voltage
    1250 V
  • Anode Responsivity
    2.0 x 105 A/W
  • Peak Wavelength
    330 nm
