Fiber Adapter, 66088-LED Fiber Illuminator

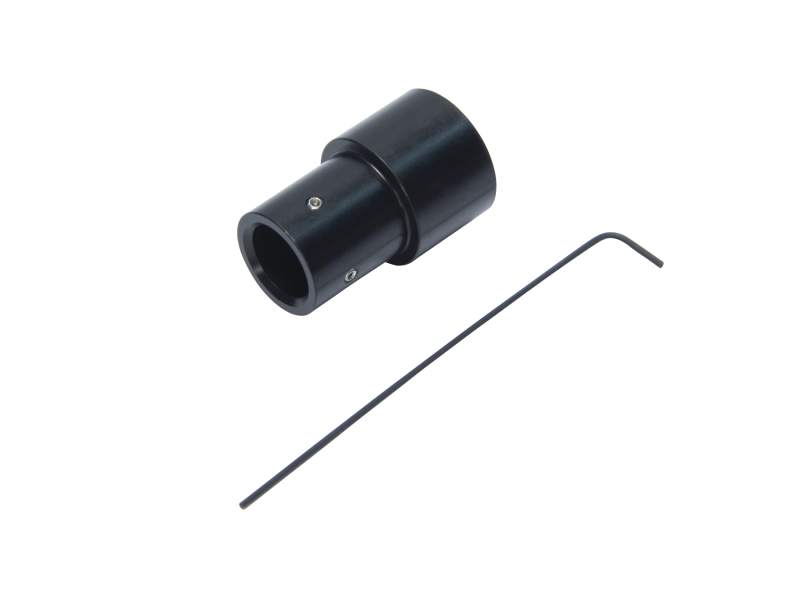

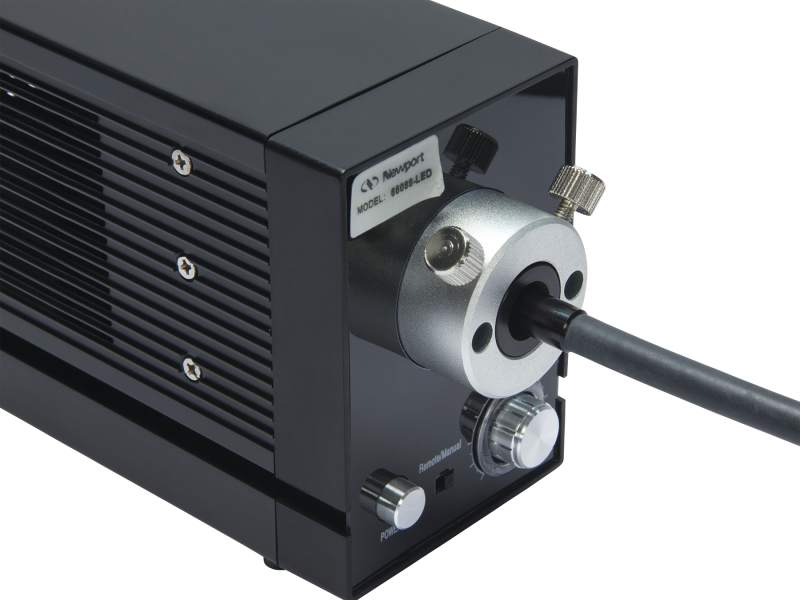

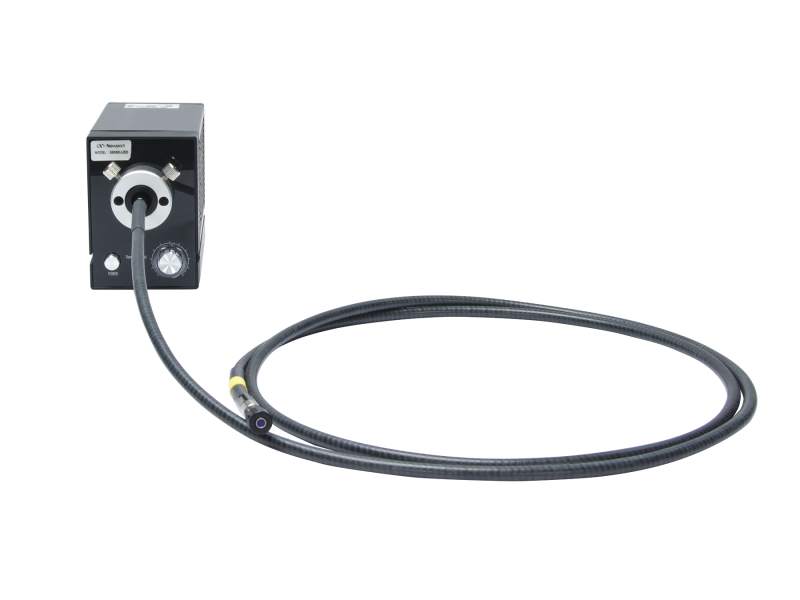

The 66088-LED-ADAPT optimally couples any 11 mm ferrule terminated fiber to the output of the 66088-LED fiber optic illuminator. A hex wrench is included for easy attachment to an 11 mm ferrule. Once the fiber is installed, coupling the 66088-LED-ADAPT to the 66088-LED is as easy as using the screws on the front panel of the light source. For fibers that do not have Oriel’s 11 mm ferrule termination, easy to attach ferrules are sold separately to allow for installation into the 66088-LED-ADAPT.

Resources & Downloads

Manuals

Oriel 66088-LED Fiber Illuminator User Manual(971 kB, PDF)

Literature

66088-LED(50) Fiber Optic Illuminator Datasheet(2.3 MB, PDF)

Related Products

Compatible Light Sources

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		66088-LEDLED Light Source, Visible, 15 W, Fiber Optic Coupling Output	UNIVERSAL		2 Weeks	$1,240
		66088-LED50LED Light Source, Visible, 50 W, Fiber Optic Coupling Output (RoHS and / or CE Pending)	UNIVERSAL		6 Weeks	$2,705

Compatible Optical Fibers

Description	Compatibility	Avail.	Price
77638Liquid Light Guide, 39.4 in., 420-2000 nm, 0.3 in. Core, 0.52 NA	UNIVERSAL	4 Weeks	$895
77634Liquid Light Guide, 39.4 in., 420-2000 nm, 0.12 in. Core, 0.52 NA	UNIVERSAL	Contact Us	$385
77637Liquid Light Guide, 79 in., 420-2000 nm, 0.2 in. Core, 0.52 NA	UNIVERSAL	4 Weeks	$730
77639Liquid Light Guide, 79 in., 420-2000 nm, 0.3 in. Core, 0.52 NA	UNIVERSAL	4 Weeks	$1,330
77636Liquid Light Guide, 39.4 in., 420-2000 nm, 0.2 in. Core, 0.52 NA	UNIVERSAL	Contact Us	$500
77635Liquid Light Guide, 79 in., 420-2000 nm, 0.12 in. Core, 0.52 NA	UNIVERSAL	In Stock	$830
77564Fiber Optic Bundle, Fused Silica, 11 mm Ferrules, 0.125 in., 36 in.	UNIVERSAL	6 Weeks	$785
77577Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.125 in., 24 in.	UNIVERSAL	Contact Us	$1,135
77576Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 36 in.	UNIVERSAL	Contact Us	$835
77575Fiber Optic Bundle, High Grade FS, 11 mm Ferrule, 0.063 in., 24 in.	UNIVERSAL	4 Weeks	$705
