Calibrated Source Lamp, Quartz Tungsten Halogen, 1000 W, 250-2400 nm

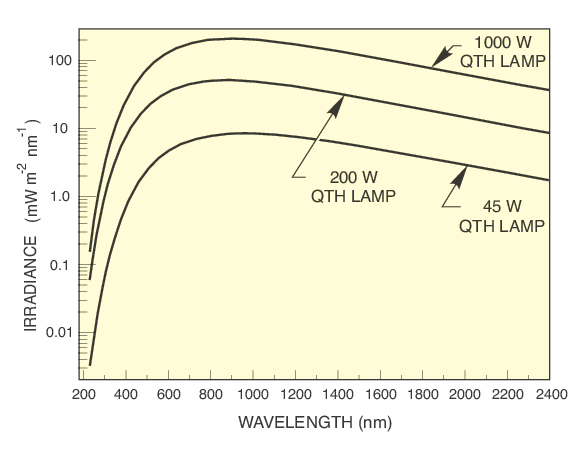

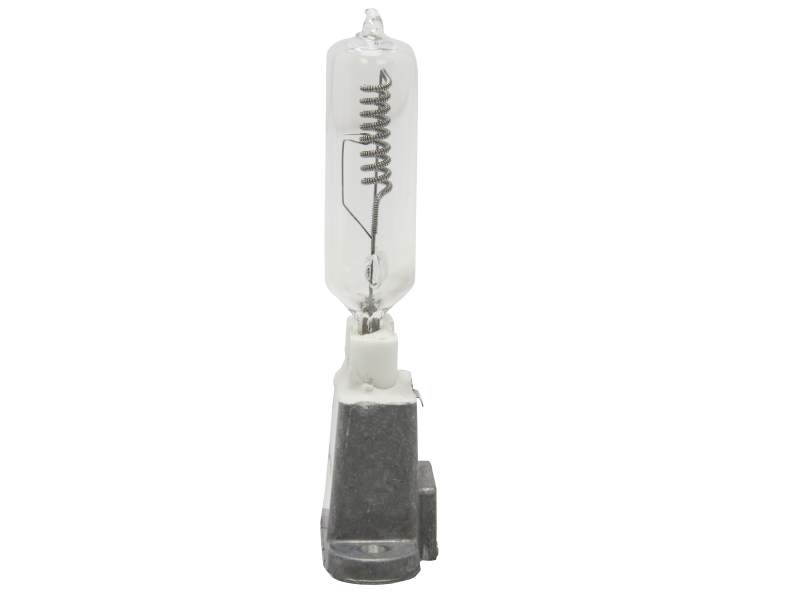

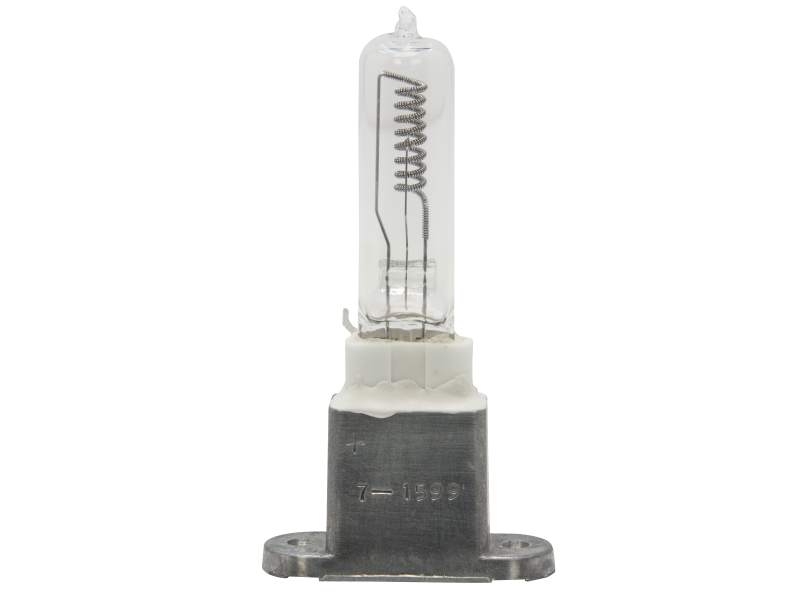

The 63350 is a calibrated 1000 W QTH source lamp. QTH lamps are known for their excellent stability in emitting high intensity visible to IR wavelength output, with minimum UV emission. Included with this lamp is a calibration certificate confirming the lamp's calibration to NIST traceable standards over a 250-2400 nm wavelength range. This lamp is intended for vertical, open air mounting instead of enclosed lamp housing operation. Lamp replacement is typically recommended after 100 hours of use to maintain certificate value uncertainties.

Specifications

Technical Specs

Lamp Type
QTH
Lamp Wattage
1000 W
Effective Filament Size
16.0 H x 6.0 Dia. mm
Filament Type
CC

Approximate Flux
27500 lm
Color Temperature
3200 K

Lamp Type
QTH
Lamp Wattage
1000 W
Effective Filament Size
16.0 H x 6.0 Dia. mm
Filament Type
CC

Approximate Flux
27500 lm
Color Temperature
3200 K

Resources & Downloads

Literature

Light Sources(1.6 MB, PDF)

2D Product Drawings

LS-125d-1(475.8 kB, PDF)

Certificates

Sample QTH Lamp Calibration Certificate PN 63355.pdf(599.8 kB, PDF)

Related Products

Similar

Description	Compatibility	Price
63362Quartz Tungsten Halogen Lamp, 1000 W, Non-Calibrated Source	UNIVERSAL	$880
63978-1000QC-OAQTH Light Source, 1000 W, Open Air Mount, NIST traceable, 250-2400 nm	UNIVERSAL	$10,860
63355Calibrated Source Lamp, Quartz Tungsten Halogen, 200 W, 300-2400 nm	UNIVERSAL	$6,060
63358Calibrated Source Lamp, Quartz Tungsten Halogen, 45 W, 300-2400 nm	UNIVERSAL	$5,860
63978-1000Q-OAQTH Light Source, 1000 W, Open Air Mount, 250-2500 nm	UNIVERSAL	$5,720

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

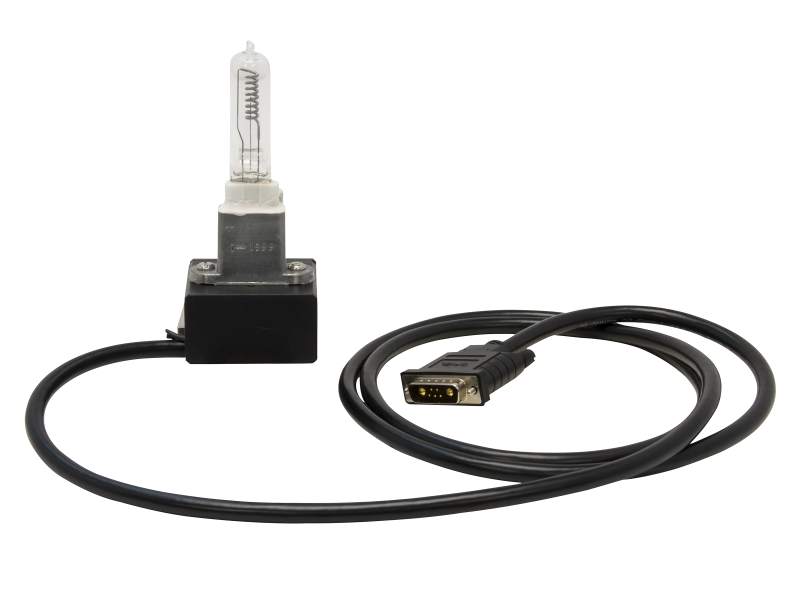

		63965Lamp Mount, 1000 W QTH, Open Air, Vertical	UNIVERSAL			$385
